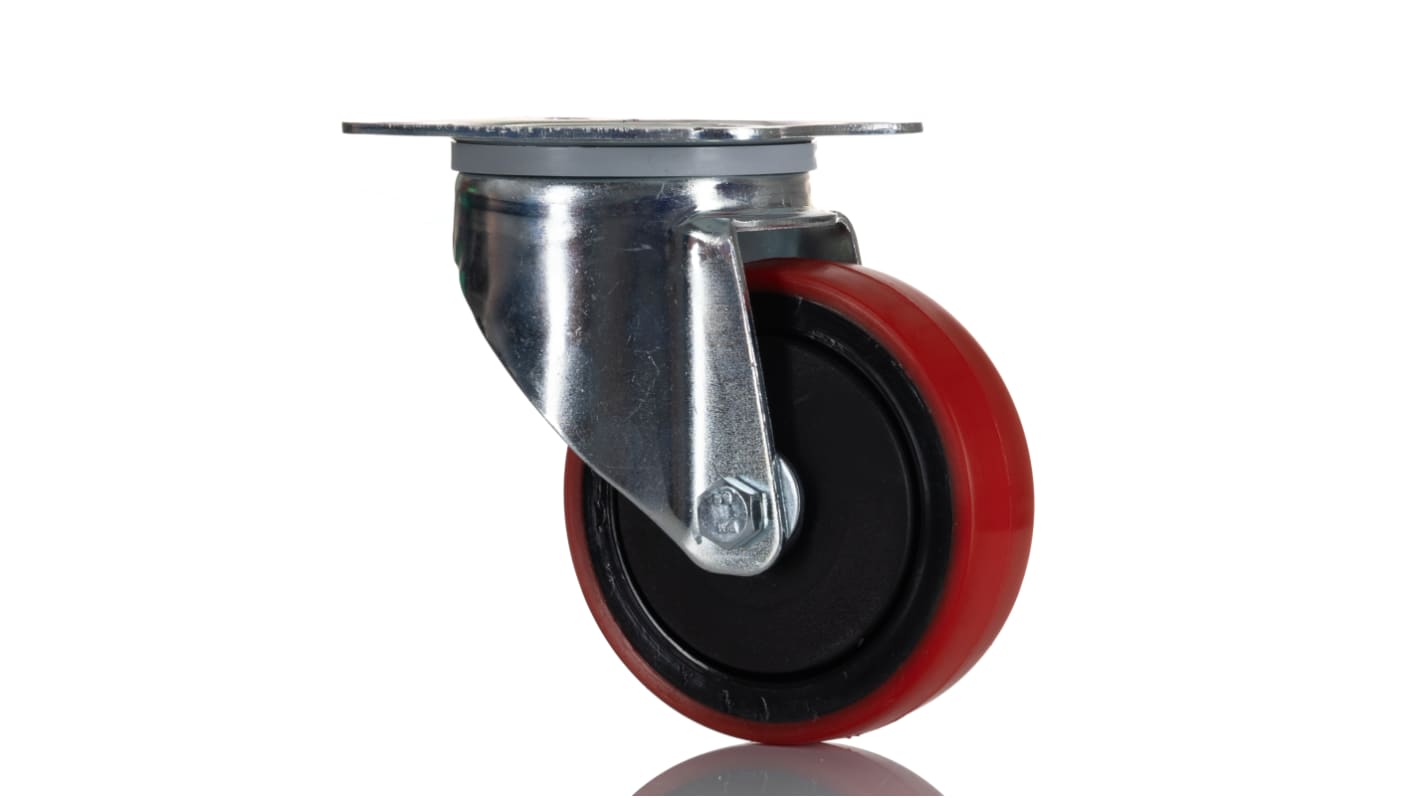

RS PRO Swivel Castor Wheel, 110kg Capacity, 100mm Wheel
- RS Stock No.:
- 196-5166
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£35.29
(exc. VAT)
£42.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 32 unit(s) shipping from 06 October 2025
- Plus 18 unit(s) shipping from 05 November 2025
- Plus 999,999,949 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £35.29 |
5 - 9 | £34.58 |
10 - 24 | £33.88 |
25 + | £33.17 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£20.36
(exc. VAT)
£24.43
(inc. VAT)
- RS Stock No.:
- 196-5166
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Wheel Diameter | 100mm | |
Load Capacity | 110kg | |
Mounting Type | Plate | |
Includes Brake | No | |
Overall Height | 122mm | |
Wheel Width | 30mm | |
Rotation | Swivel | |
Tyre Material | Polyurethane | |
Fixing Centres | 80 x 60mm | |
Fixing Plate Dimensions | 100 x 80mm | |
Number of Fixing Holes | 4 | |
Fixing Hole Size | 8.4mm | |
Weight Class | Medium Duty | |
Hub Bearing Type | Single Ball Race | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Wheel Diameter 100mm | ||
Load Capacity 110kg | ||
Mounting Type Plate | ||
Includes Brake No | ||
Overall Height 122mm | ||
Wheel Width 30mm | ||
Rotation Swivel | ||
Tyre Material Polyurethane | ||
Fixing Centres 80 x 60mm | ||
Fixing Plate Dimensions 100 x 80mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 8.4mm | ||
Weight Class Medium Duty | ||
Hub Bearing Type Single Ball Race | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
RS PRO Swivel Castor, 110 kg Load Capacity, 100 mm Wheel Diameter
You can attach this RS PRO swivel castor to your trolley to help you move heavy and awkwardly shaped loads more easily. The 100 mm diameter wheel is designed for use with medium-duty loads of up to 110 kg. It's suitable for both domestic and commercial settings, from garages to industrial plants and warehouses.
As a swivel castor, it's capable of moving in any direction. The main body of this component is zinc-plated for added strength and protection against day-to-day impact. It's also designed to resist corrosion and tarnishing, all of which means it will last longer.
This reliable component is designed to create low levels of friction, which means it's less effort to push your load. The swivel types are fitted with a double ball race to ensure easy steering. You'll find it attached to hospital beds, workbenches and engineering equipment.
As a swivel castor, it's capable of moving in any direction. The main body of this component is zinc-plated for added strength and protection against day-to-day impact. It's also designed to resist corrosion and tarnishing, all of which means it will last longer.
This reliable component is designed to create low levels of friction, which means it's less effort to push your load. The swivel types are fitted with a double ball race to ensure easy steering. You'll find it attached to hospital beds, workbenches and engineering equipment.
Features and Benefits
• Low-friction features
• Fixing centres of 80 x 60 mm
• Fixing hole size of 8.4 mm
• Fixing plate dimensions of 100 x 80 mm
• Single-ball race hub bearing type
• No brake
• Load capacity of 110 kg
• Plate mounting type
• Four fixing holes
• Swivel rotation
• Polyurethane (PUR) tyre material
• Medium-duty weight class
• Wheel diameter of 100 mm
• Wheel width of 30 mm
• Overall height of 122 mm
• Fixing centres of 80 x 60 mm
• Fixing hole size of 8.4 mm
• Fixing plate dimensions of 100 x 80 mm
• Single-ball race hub bearing type
• No brake
• Load capacity of 110 kg
• Plate mounting type
• Four fixing holes
• Swivel rotation
• Polyurethane (PUR) tyre material
• Medium-duty weight class
• Wheel diameter of 100 mm
• Wheel width of 30 mm
• Overall height of 122 mm
