Littelfuse 15A Blue Blade Car Fuse, 32V dc
- RS Stock No.:
- 220-0915
- Mfr. Part No.:
- 0297015.LXN
- Brand:
- Littelfuse

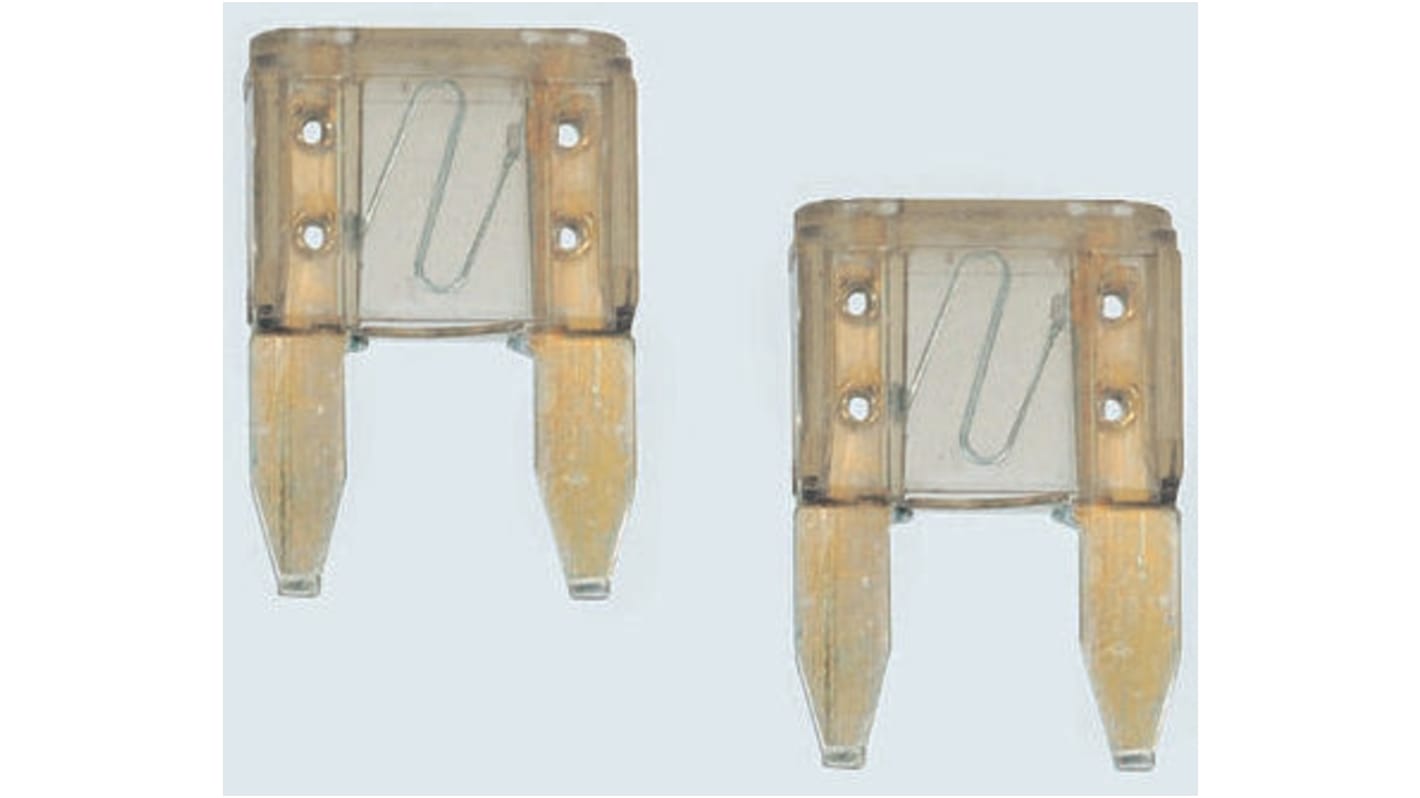

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.212
(exc. VAT)
£0.254
(inc. VAT)
- RS Stock No.:
- 220-0915
- Mfr. Part No.:
- 0297015.LXN
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Current Rating | 15A | |
| Fuse Type | Blade | |
| Blade Size | Mini | |
| Voltage Rating | 32V dc | |
| Colour | Blue | |
| Length | 10.9mm | |
| Width | 3.8mm | |
| Height | 16.3mm | |
| Body Material | Plastic | |
| Fuse Speed | F | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Operating Temperature Range | -40 → +125 °C | |
| Breaking Capacity at Maximum Voltage Rating | 1000 A | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Current Rating 15A | ||
Fuse Type Blade | ||
Blade Size Mini | ||
Voltage Rating 32V dc | ||
Colour Blue | ||
Length 10.9mm | ||
Width 3.8mm | ||
Height 16.3mm | ||
Body Material Plastic | ||
Fuse Speed F | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Operating Temperature Range -40 → +125 °C | ||
Breaking Capacity at Maximum Voltage Rating 1000 A | ||
'MINIFUSE' 297 Series
The MINI fuse series from Littelfuse is the new standard for vehicle circuit protection. The series miniature design utilizes less space and has the ability to cope with high temperatures, even in adverse environments.
Features:
Temperature Range: -40˚C to +125˚C
Miniature fuses to SAE J2 077
Can also be used for low voltage applications
Body thickness 3.81mm
32Vdc
Temperature Range: -40˚C to +125˚C
Miniature fuses to SAE J2 077
Can also be used for low voltage applications
Body thickness 3.81mm
32Vdc
