- RS Stock No.:
- 215-8462
- Mfr. Part No.:
- MIN1072M-TL
- Brand:
- Power Integrations
4000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.95
(exc. VAT)
£2.34
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 45 | £1.95 | £9.75 |
50 - 95 | £1.756 | £8.78 |
100 - 495 | £1.552 | £7.76 |
500 - 995 | £1.328 | £6.64 |
1000 + | £1.23 | £6.15 |
*price indicative |
- RS Stock No.:
- 215-8462
- Mfr. Part No.:
- MIN1072M-TL
- Brand:
- Power Integrations
Technical Reference
Legislation and Compliance
Product Details

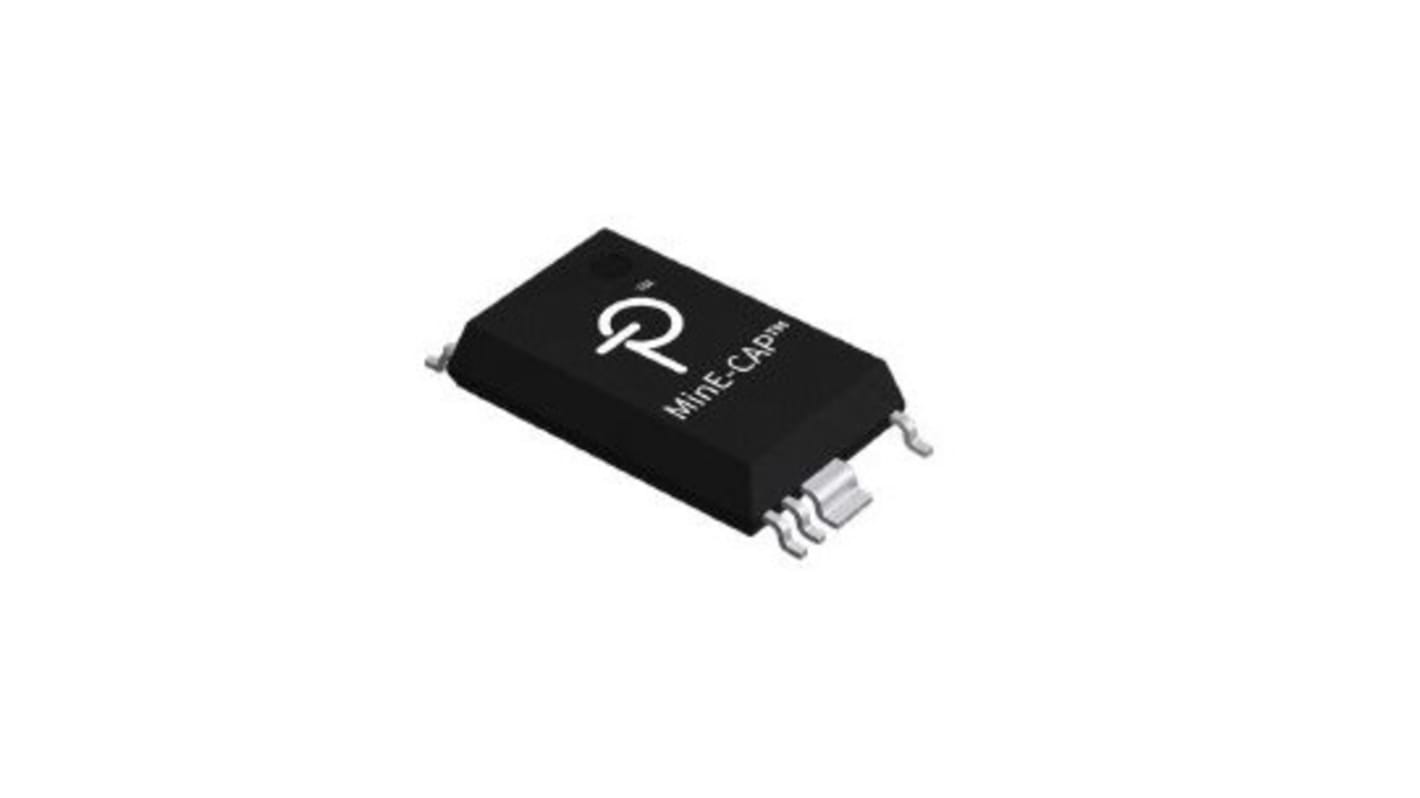

The Power Integrations MinE-CAP is a bulk capacitor miniaturization and inrush management IC which dramatically shrinks the size of input bulk capacitors without compromising output ripple, operating efficiency or requiring redesign of the transformer. When compared to traditional techniques such as very high switching frequency operation, this IC achieves the same or greater overall power supply size reduction whilst avoiding the challenges of complex EMI filtering and the increased transformer or clamp dissipation associated with very high frequency designs. It has pin short-circuit and UV and OV fault reporting.
It significantly reduces i2t stress on the input bridge rectifier and fuse
It has integrated temperature sensing and hysteretic thermal shutdown
It has input surge protection
It has integrated temperature sensing and hysteretic thermal shutdown
It has input surge protection
Specifications
Attribute | Value |
---|---|
Series | MinE-CAP |
Series Resistance | 1.8 MΩ, 2 MΩ |
Package Type | SOP |
Pin Count | 12 |
