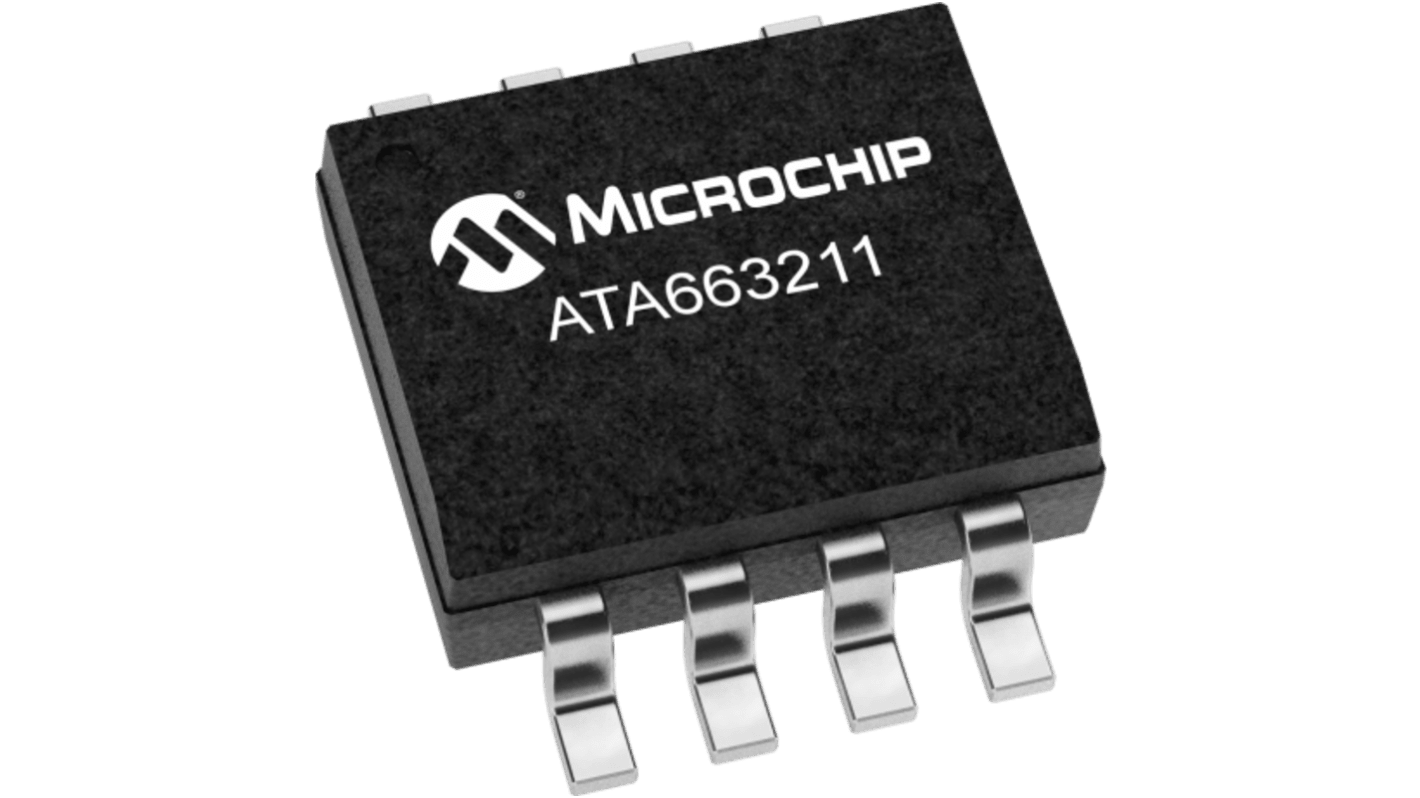

Microchip ATA663211-GAQW, CAN Caps 20 kbps, 8-Pin SOIC
- RS Stock No.:
- 631-342
- Mfr. Part No.:
- ATA663211-GAQW
- Brand:
- Microchip
Subtotal (1 reel of 4000 units)*
£1,368.00
(exc. VAT)
£1,640.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.342 | £1,368.00 |
*price indicative
- RS Stock No.:
- 631-342
- Mfr. Part No.:
- ATA663211-GAQW
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Data Rate | 20kbps | |
| Product Type | CAN Caps | |
| Number of Transceivers | 1 | |
| Sub Type | LIN Physical Layer Transceiver | |
| Power Down Mode | Yes | |
| Supply Current | 250μA | |
| Mount Type | Surface | |
| Interface Type | LIN | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | AEC-Q006, ISO 7637, SAEJ2602-2, ISO 26262, IEC 61000-4-2, AEC-Q100 | |
| Series | ATA663211 | |
| Length | 3mm | |
| Automotive Standard | AEC-Q100, ISO 7637, AEC-Q006, IEC 61000-4-2, ISO 26262 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Data Rate 20kbps | ||
Product Type CAN Caps | ||
Number of Transceivers 1 | ||
Sub Type LIN Physical Layer Transceiver | ||
Power Down Mode Yes | ||
Supply Current 250μA | ||
Mount Type Surface | ||
Interface Type LIN | ||
Package Type SOIC | ||
Pin Count 8 | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals AEC-Q006, ISO 7637, SAEJ2602-2, ISO 26262, IEC 61000-4-2, AEC-Q100 | ||
Series ATA663211 | ||
Length 3mm | ||
Automotive Standard AEC-Q100, ISO 7637, AEC-Q006, IEC 61000-4-2, ISO 26262 | ||
- COO (Country of Origin):
- PH
The Microchip Fully integrated LIN transceiver designed in compliance with the LIN specification 2.0, 2.1, 2.2, 2.2A and SAEJ2602-2. It interfaces the LIN protocol handler and the physical layer. The device is designed to handle the low-speed data communication in vehicles, for example, in convenience electronics. Improved slope control at the LIN bus ensures data communication up to 20Kbaud. Sleep mode guarantees minimal current consumption even in the case of a floating bus line or a short circuit on the LIN bus to GND.
Wake up source recognition
TXD time out timer
Bus pin is over temperature and short circuit protected vs. GND and battery
Advanced EMC and ESD performance
Fulfils the OEM “Hardware Requirements for LIN in Automotive Applications Rev.1.3”
Interference and damage protection according to ISO7637
AEC Q006 and AEC Q100 qualified
