Eaton, 1P 7 Position 45° Multi Step Cam Switch, 690V (Volts), 20A, Toggle Actuator
- RS Stock No.:
- 271-6120
- Mfr. Part No.:
- 095803 T0-3-8244/E
- Brand:
- Eaton
Subtotal (1 unit)*
£36.41
(exc. VAT)
£43.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 04 November 2025
- Plus 6 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.41 |
*price indicative
- RS Stock No.:
- 271-6120
- Mfr. Part No.:
- 095803 T0-3-8244/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Pole and Throw Configuration | 1P | |
| Cam Switch Type | Multi Step Cam Switch | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V (Volts) | |
| Number of Positions | 7 | |
| Angle of Throw | 45° | |
| Actuator Type | Toggle | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 1P | ||
Cam Switch Type Multi Step Cam Switch | ||
Maximum Current 20A | ||
Maximum Voltage 690V (Volts) | ||
Number of Positions 7 | ||
Angle of Throw 45° | ||
Actuator Type Toggle | ||
- COO (Country of Origin):
- GB

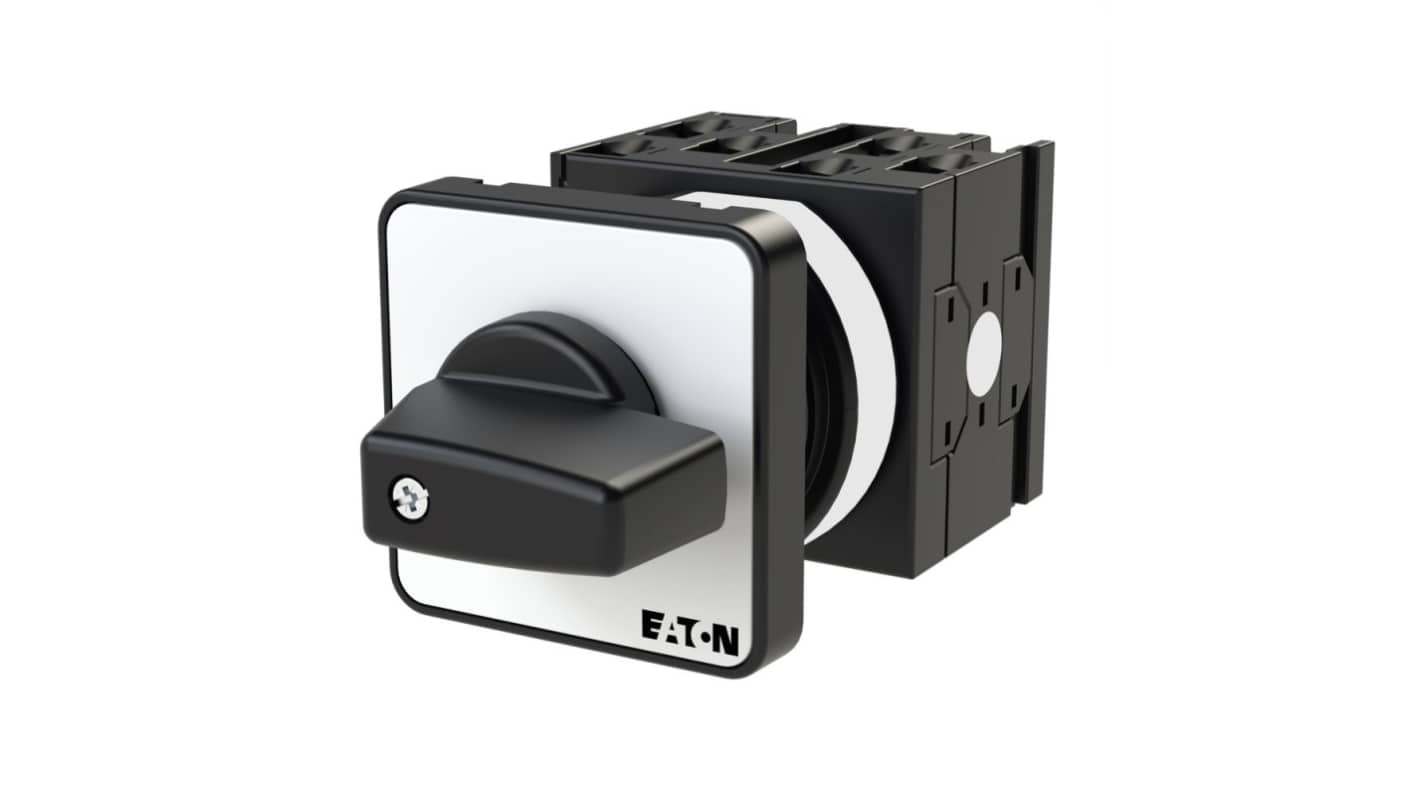

Eaton Cam Switch, 1P Pole Configuration, 20A Maximum Current - 095803 T0-3-8244/E
This cam switch is a highly versatile electrical component designed for efficient control in various applications. This cam switch features a compact design measuring 95 x 48 x 95 mm, intended for flush mounting, making it an ideal choice for space-constrained installations. With a toggle actuator and a robust multi-step functionality, this unit is suitable for both single-phase and three-phase electrical systems.
Features & Benefits
• Supports up to 20A current, ensuring reliable performance
• Operates at a maximum voltage of 690V, enhancing compatibility
• Unique 45° angle of throw allows precise switching
• Offers seven distinct positions, including an off state for safety
• Equipped with screw terminals for secure electrical connections
• Operates at a maximum voltage of 690V, enhancing compatibility
• Unique 45° angle of throw allows precise switching
• Offers seven distinct positions, including an off state for safety
• Equipped with screw terminals for secure electrical connections
Applications
• Used for controlling electrical circuit connections in industrial settings
• Suitable as a motor disconnect switch for enhancing safety
• Utilised in branch circuits for optimised energy management
• Ideal for machine control in automation and manufacturing environments
• Suitable as a motor disconnect switch for enhancing safety
• Utilised in branch circuits for optimised energy management
• Ideal for machine control in automation and manufacturing environments
How does the switching mechanism ensure operational safety?
The toggle actuator design informs users about the switch's position, while the inclusion of an off position provides a clear indication for safe operation, minimising error during use.
What is the expected mechanical lifespan of this switch?
The switch boasts a mechanical life of up to 400,000 operations, making it suitable for applications requiring frequent use without compromising performance.
Can this switch handle various types of loads?
Yes, it is designed to manage both resistive and inductive loads effectively, making it a reliable choice for diverse applications including motor control circuits.
Note
Eaton formerly known as Moeller
