Eaton, 3P 90° On-Off Cam Switch, 690V (Volts), 20A, Door Coupling Rotary Drive Actuator

RS Stock No.:: 271-5487
Mfr. Part No.:: 222646 T0-3-15159/I1/SVB
Brand:: Eaton

Eaton, 3P 90° On-Off Cam Switch, 690V (Volts), 20A, Door Coupling Rotary Drive Actuator

Available to back order for despatch 11/09/2024

Price Each

£58.33

(exc. VAT)

£70.00

(inc. VAT)

Units	Per unit
1 +	£58.33

RS Stock No.:: 271-5487
Mfr. Part No.:: 222646 T0-3-15159/I1/SVB
Brand:: Eaton

Technical Reference

Datasheet - 222646

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

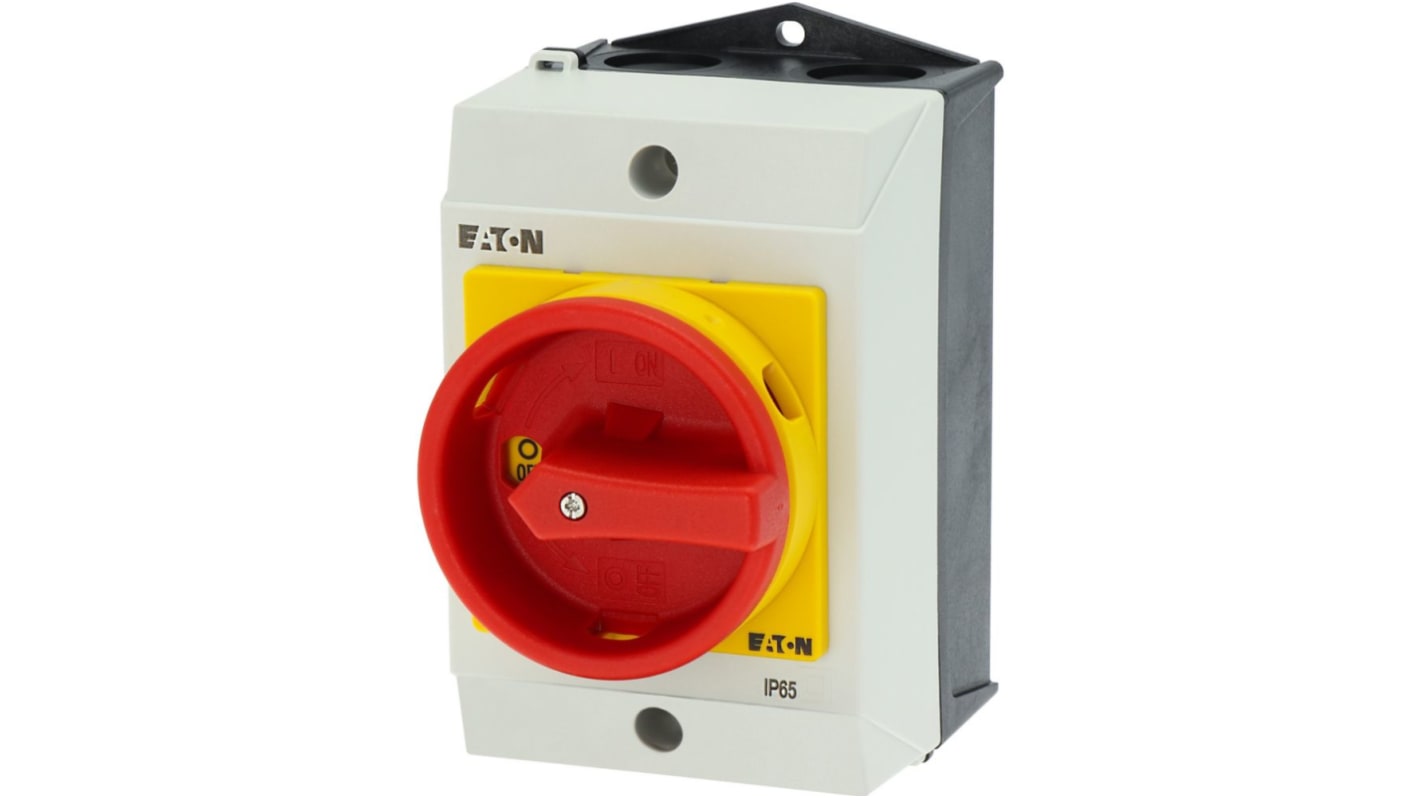

The Eaton Main switch can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. It has red rotary handle and yellow locking ring.

Maintenance switch
Part group reference T0
Emergency switching off function
Degree of protection IP65

Note

Eaton formerly known as Moeller

Specifications

Attribute	Value
Series	Eaton Moeller
Pole and Throw Configuration	3P
Cam Switch Type	On-Off Cam Switch
Normal State Configuration	2NO/1NC
Maximum Current	20A
Maximum Voltage	690V (Volts)
Angle of Throw	90°
Actuator Type	Door Coupling Rotary Drive
