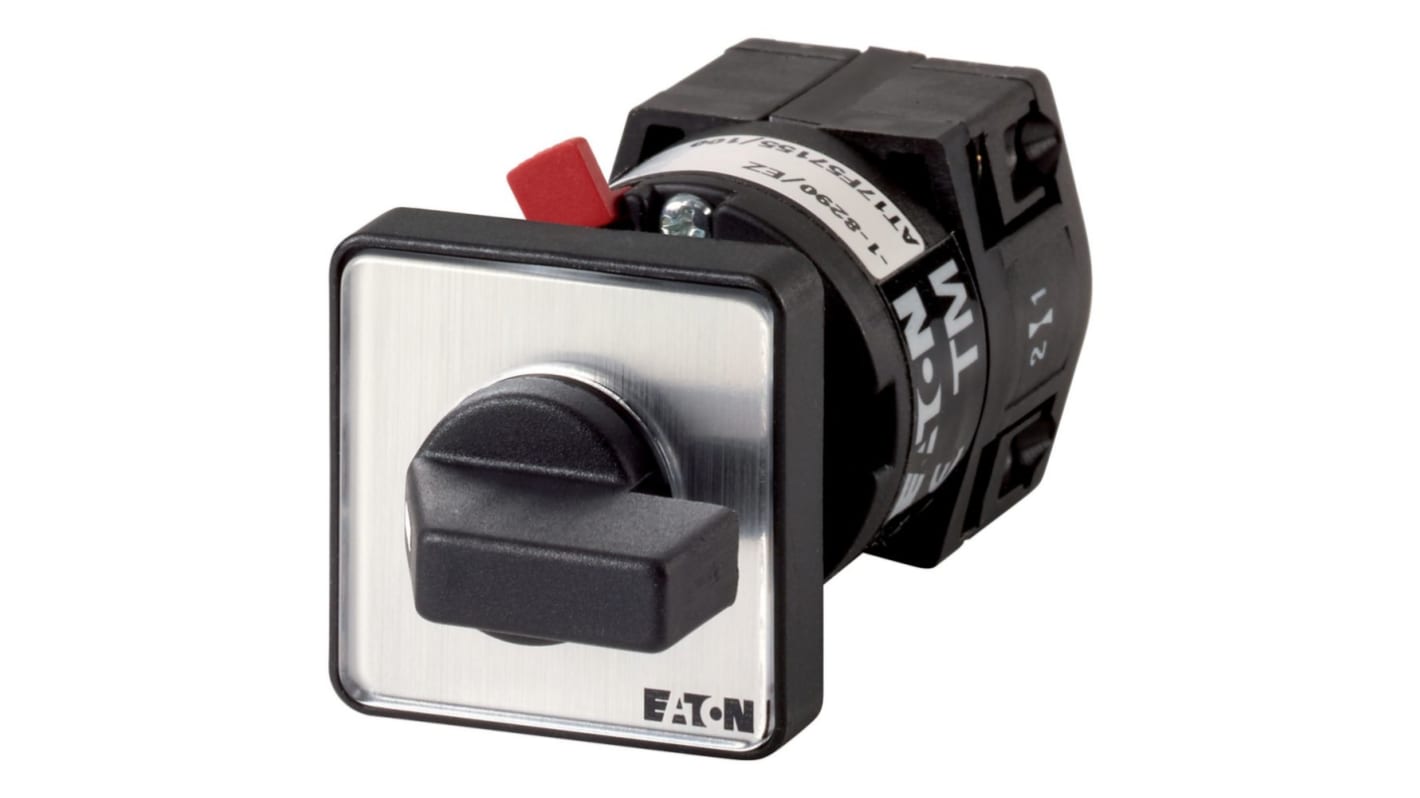

Eaton 3 Position 90 °, Short Lever Actuator 10 A
- RS Stock No.:
- 271-5128
- Mfr. Part No.:
- 045476 TM-1-8218/EZ
- Brand:
- Eaton
Subtotal (1 unit)*
£38.54
(exc. VAT)
£46.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.54 |
*price indicative
- RS Stock No.:
- 271-5128
- Mfr. Part No.:
- 045476 TM-1-8218/EZ
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller TM | |
| Electrical Phase | 3 | |
| Number of Positions | 3 | |
| Mount Type | Center | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Short Lever | |
| Contact Voltage | 500V | |
| Length | 74mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EN/IEC 60947, CSA | |
| Width | 30mm | |
| Depth | 30mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller TM | ||
Electrical Phase 3 | ||
Number of Positions 3 | ||
Mount Type Center | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 10A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Short Lever | ||
Contact Voltage 500V | ||
Length 74mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals EN/IEC 60947, CSA | ||
Width 30mm | ||
Depth 30mm | ||
Mechanical Life 1000000Cycles | ||
The Eaton changeover control switch is type of electrical switch operated by rotation. The switch allow the user to turn a knob or shaft that increases or decreases the resistance conducted through the contacts depending on the direction of the turn.
Part group reference TM
Degree of protection front IP65
Design centre mounting
