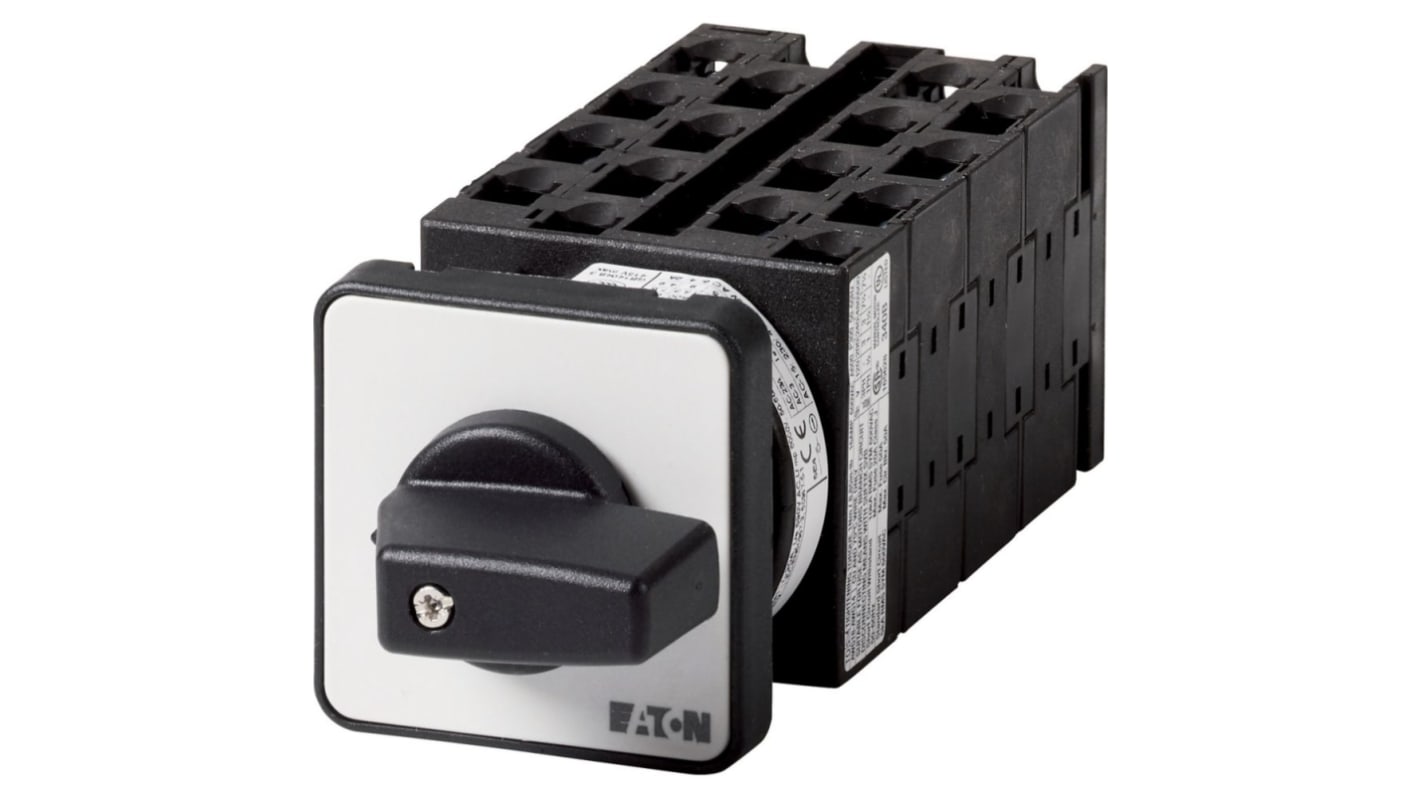

Eaton 3 Position 90 °, Short Thumb Grip Actuator 20 A
- RS Stock No.:
- 271-4778
- Mfr. Part No.:
- 016134 T0-8-8352/E
- Brand:
- Eaton
Subtotal (1 unit)*
£74.16
(exc. VAT)
£88.99
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.16 |
*price indicative
- RS Stock No.:
- 271-4778
- Mfr. Part No.:
- 016134 T0-8-8352/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Moeller | |
| Product Type | Cam Switch | |
| Mount Type | Flush | |
| Number of Positions | 3 | |
| Number of Poles | 16 | |
| Terminal Type | Screw | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Short Thumb Grip | |
| Contact Voltage | 60V | |
| Depth | 48mm | |
| Length | 143mm | |
| Width | 48mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 60204, IEC/EN 60947-3, VDE 0660 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Moeller | ||
Product Type Cam Switch | ||
Mount Type Flush | ||
Number of Positions 3 | ||
Number of Poles 16 | ||
Terminal Type Screw | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Short Thumb Grip | ||
Contact Voltage 60V | ||
Depth 48mm | ||
Length 143mm | ||
Width 48mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 60204, IEC/EN 60947-3, VDE 0660 | ||
Hazardous Area Certification NO | ||
Mechanical Life 400000Cycles | ||
Eaton Cam Switch, 20A Maximum Current, 690V Maximum Voltage - 016134 T0-8-8352/E
This Cam Switch is an On-Off Cam Switch designed specifically for reliable performance in various electrical applications. Featuring a sturdy construction, it includes a short thumb grip for easy operation. The switch operates at a maximum current of 20A and a maximum voltage of 690V (Volts), making it well-suited for demanding environments. Its dimensions are 143 x 48 x 143 mm, allowing for convenient installation.
Features & Benefits
• 16-pole configuration enables versatile connectivity
• Screw terminal design simplifies wiring and maintenance
• Flush mounting facilitates seamless integration into panels
• Degree of protection IP65 guards against dust and water
• Rated operational power of 5.5kW enhances performance efficiency
Applications
• Used for motor disconnection in industrial settings
• Ideal for front-mounting in control panels
• Suitable for automation and process control systems
• Effective in requiring electrical isolation
What current and voltage ratings can be expected?
The device supports a maximum continuous current of 20A and an operational voltage of up to 690V.
How does the switch ensure long-term reliability?
With a mechanical lifespan of 400,000 operations and robust construction, it is designed to withstand rigorous usage.
What type of mounting does this switch support?
It is optimally designed for flush mounting, allowing for a sleek installation in various applications.
How does the degree of protection contribute to its functionality?
The IP65 rating provides protection against dust and water ingress, making it suitable for harsh environments.
Note
Eaton formerly known as Moeller
