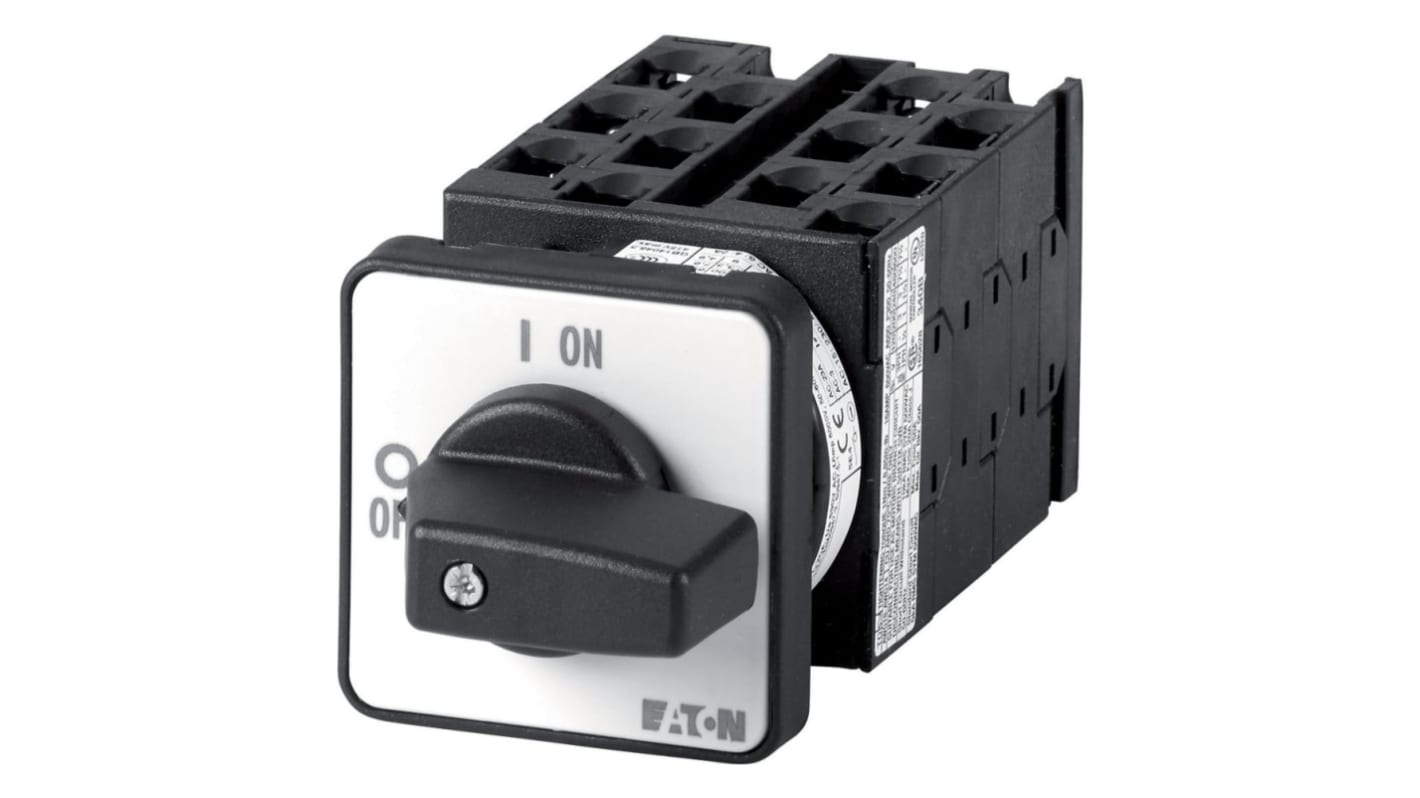

Eaton 4 Position 90 °, Knob Actuator 20 A
- RS Stock No.:
- 271-4710
- Mfr. Part No.:
- 015624 T0-6-8034/E
- Brand:
- Eaton
Subtotal (1 unit)*
£65.03
(exc. VAT)
£78.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.03 |
*price indicative
- RS Stock No.:
- 271-4710
- Mfr. Part No.:
- 015624 T0-6-8034/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller | |
| Number of Positions | 4 | |
| Mount Type | Flush | |
| Terminal Type | Screw | |
| Number of Poles | 6 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V | |
| Actuator Type | Knob | |
| Maximum Operating Temperature | 40°C | |
| Depth | 48mm | |
| Length | 124mm | |
| Width | 48mm | |
| Standards/Approvals | EN/IEC 60204, CSA | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller | ||
Number of Positions 4 | ||
Mount Type Flush | ||
Terminal Type Screw | ||
Number of Poles 6 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V | ||
Actuator Type Knob | ||
Maximum Operating Temperature 40°C | ||
Depth 48mm | ||
Length 124mm | ||
Width 48mm | ||
Standards/Approvals EN/IEC 60204, CSA | ||
Hazardous Area Certification NO | ||
Mechanical Life 400000Cycles | ||
The Eaton cam switch is a type of electrical switch operated by rotation. Cam switch allow the user to turn a knob or shaft that increases or decreases the resistance conducted through the contacts depending on the direction of the turn. Cam switch is an ideal alternative to more conventional toggle or slide switches when the number of circuits or electrical states in a circuit requiring control exceeds the capability of toggle and slide switches.
Size T0
Degree of protection Front IP65
Note
Eaton formerly known as Moeller
