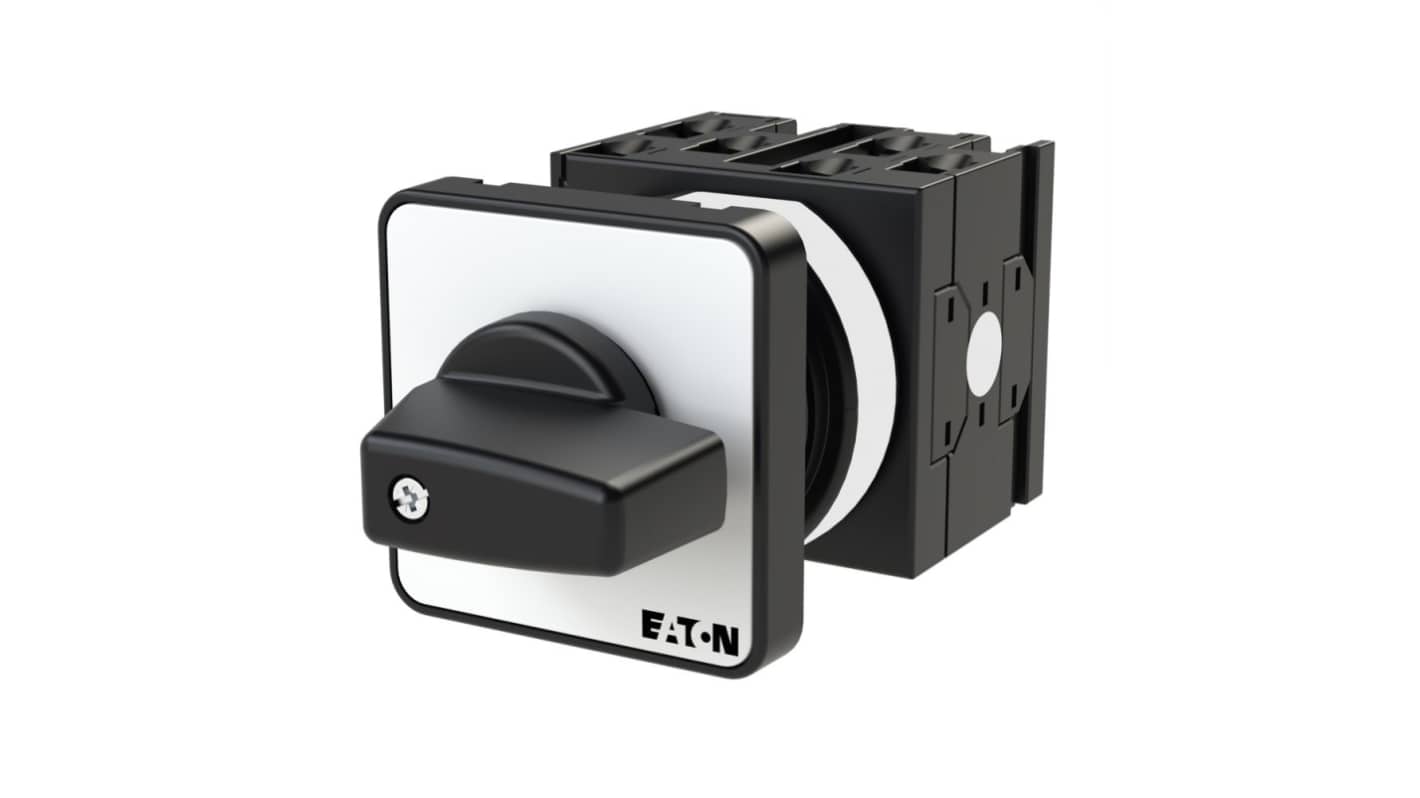

Eaton 3 Position 45 °, Short Thumb Grip Actuator 20 A
- RS Stock No.:
- 271-4645
- Mfr. Part No.:
- 015112 T0-3-8228/E
- Brand:
- Eaton
Subtotal (1 unit)*
£36.41
(exc. VAT)
£43.69
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.41 |
*price indicative
- RS Stock No.:
- 271-4645
- Mfr. Part No.:
- 015112 T0-3-8228/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Mount Type | Flush | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V | |
| Actuator Type | Short Thumb Grip | |
| Width | 76mm | |
| Standards/Approvals | CE, CSA, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 60947-4-1, VDE 0660 | |
| Hazardous Area Certification | NO | |
| Depth | 68mm | |
| Length | 116mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Mount Type Flush | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V | ||
Actuator Type Short Thumb Grip | ||
Width 76mm | ||
Standards/Approvals CE, CSA, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 60947-4-1, VDE 0660 | ||
Hazardous Area Certification NO | ||
Depth 68mm | ||
Length 116mm | ||
Mechanical Life 400000Cycles | ||
Eaton Cam Switch, 20A Maximum Current, 690V Maximum Voltage - 015112 T0-3-8228/E
This cam switch is a motor reversing device designed for efficient control in electrical applications. With a robust design measuring 116 x 76 x 68 mm, it features three positions and a maximum operational current of 20A. Ideal for use in single and three-phase systems, its flush mounting design ensures seamless integration into control panels.
Features & Benefits
• Short thumb grip for easy operation and quick adjustments
• Designed for flush mounting to save panel space
• Suitable for single and three-phase electrical usage
• IP65 rating ensures protection against dust and water
• Mechanical lifespan of 400,000 operations for durability
• Spring-return feature enhances operational safety
Applications
• Used for motor reversing control in industrial machinery
• Suitable for electrical panels requiring compact switching solutions
• Ideal for machinery control in automation processes
• Used in branch circuits for effective motor disconnection
What is the maximum current rating and operational voltage for this device?
The device accommodates a maximum current of 20A and supports voltages up to 690V, making it versatile for various electrical applications.
How does the design benefit installation in control panels?
Its flush mounting design allows for straightforward installation in standard panels, utilising space efficiently while maintaining accessibility for operation.
What are the ambient operating temperature limits for optimal performance?
The switch operates effectively in temperatures ranging from -25°C to 50°C, ensuring reliable function across diverse environments.
Note
Eaton formerly known as Moeller
