Eaton 5 Position 45 °, Short Thumb Grip Actuator 32 A
- RS Stock No.:
- 271-4055
- Mfr. Part No.:
- 005651 T3-8-15152/EZ
- Brand:
- Eaton
Subtotal (1 unit)*
£161.26
(exc. VAT)
£193.51
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £161.26 |
*price indicative
- RS Stock No.:
- 271-4055
- Mfr. Part No.:
- 005651 T3-8-15152/EZ
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Number of Positions | 5 | |
| Mount Type | Center | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 32A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Short Thumb Grip | |
| Contact Voltage | 690V | |
| Width | 61mm | |
| Standards/Approvals | IEC/EN 60947, VDE 0660, UL 60947-4-1, UL, IEC/EN 60947-3, CE, IEC 60204-1-2 | |
| Hazardous Area Certification | NO | |
| Depth | 54mm | |
| Length | 182mm | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Number of Positions 5 | ||
Mount Type Center | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 32A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Short Thumb Grip | ||
Contact Voltage 690V | ||
Width 61mm | ||
Standards/Approvals IEC/EN 60947, VDE 0660, UL 60947-4-1, UL, IEC/EN 60947-3, CE, IEC 60204-1-2 | ||
Hazardous Area Certification NO | ||
Depth 54mm | ||
Length 182mm | ||
Mechanical Life 500000Cycles | ||
- COO (Country of Origin):
- GB

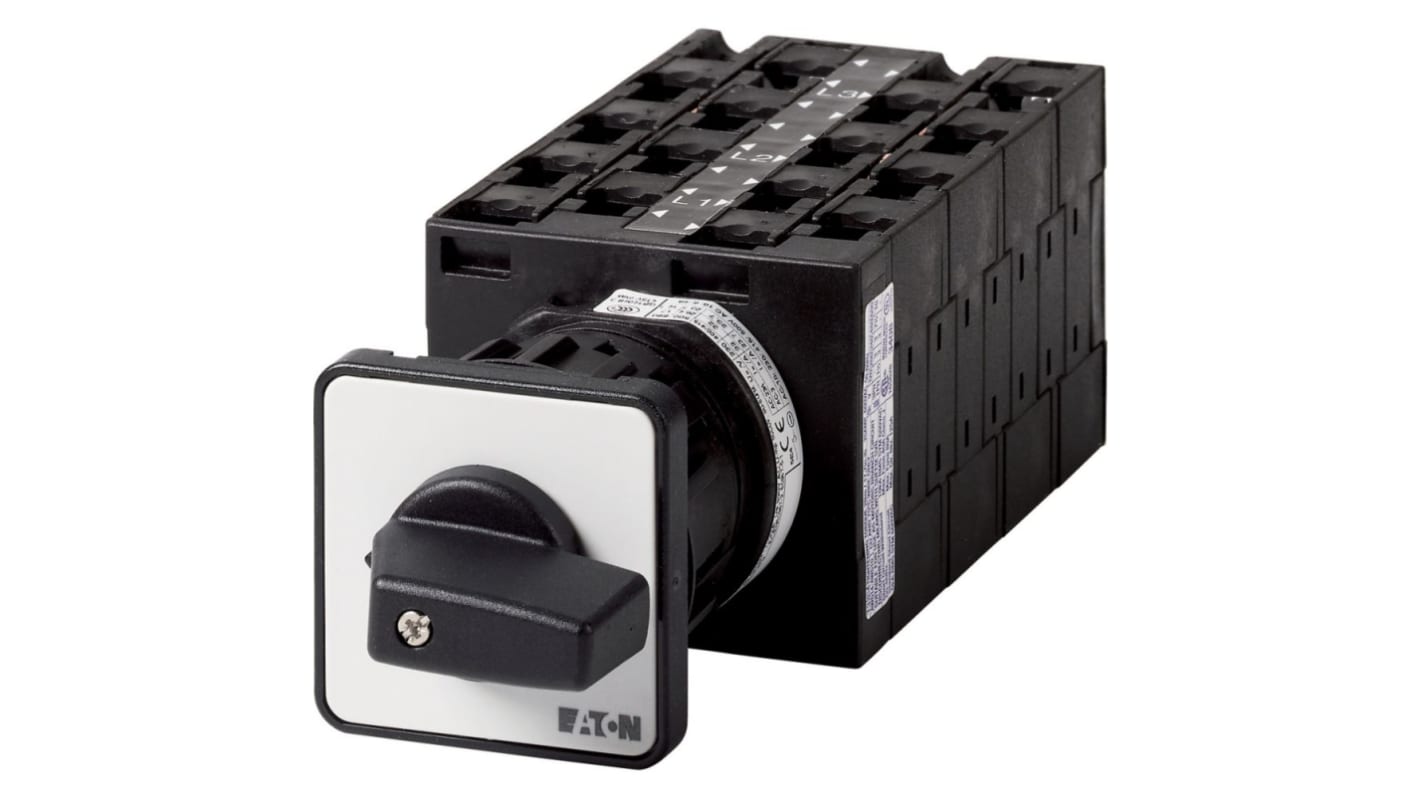

The Eaton electrical step switch disconnector used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The step switch disconnector has black thumb grip and front plate protective cover.
Standards IEC/EN 60947
VDE approved
CSA approved
Switch-disconnector according to IEC/EN 60947-3
Part group reference T3
Note
Eaton formerly known as Moeller
