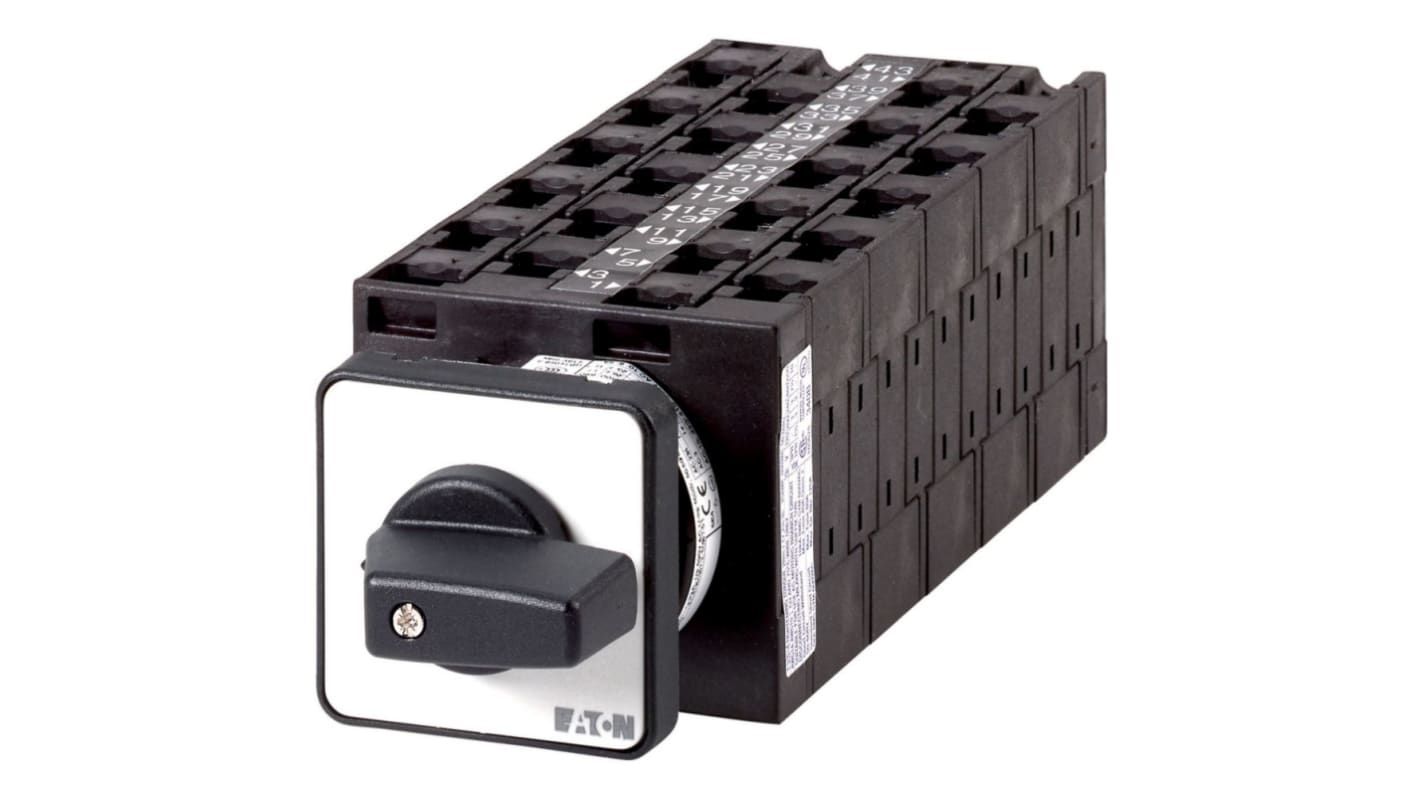

Eaton 7 Position 45 °, Angled Toggle Actuator 32 A
- RS Stock No.:
- 271-3987
- Mfr. Part No.:
- 003861 T3-11-15021/E
- Brand:
- Eaton
Subtotal (1 unit)*
£215.47
(exc. VAT)
£258.56
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £215.47 |
*price indicative
- RS Stock No.:
- 271-3987
- Mfr. Part No.:
- 003861 T3-11-15021/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | T3 | |
| Product Type | Cam Switch | |
| Electrical Phase | 3 | |
| Mount Type | Flush | |
| Number of Positions | 7 | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 32A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 60V | |
| Actuator Type | Angled Toggle | |
| Maximum Operating Temperature | 50°C | |
| Length | 194mm | |
| Depth | 54mm | |
| Standards/Approvals | CSA, IEC/EN 60947, VDE 0660, UL, IEC/EN 60947-3, IEC/EN 60204 | |
| Width | 61mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series T3 | ||
Product Type Cam Switch | ||
Electrical Phase 3 | ||
Mount Type Flush | ||
Number of Positions 7 | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 32A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 60V | ||
Actuator Type Angled Toggle | ||
Maximum Operating Temperature 50°C | ||
Length 194mm | ||
Depth 54mm | ||
Standards/Approvals CSA, IEC/EN 60947, VDE 0660, UL, IEC/EN 60947-3, IEC/EN 60204 | ||
Width 61mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 500000Cycles | ||
The Eaton electrical step switch disconnector used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The step switch disconnector has black thumb grip and front plate protective cover.
Standards IEC/EN 60947
VDE approved
CSA approved
Switch-disconnector according to IEC/EN 60947-3
Part group reference T3
