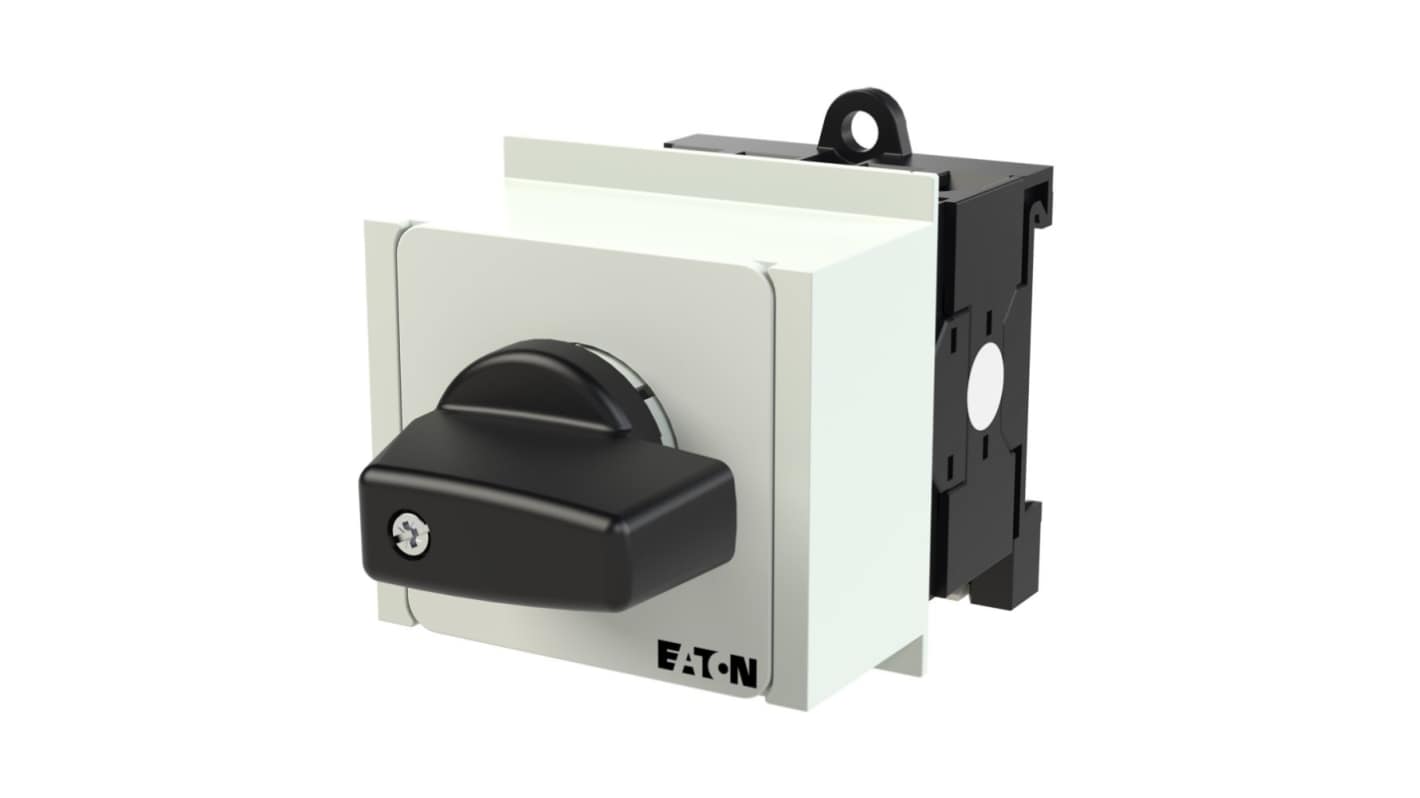

Eaton 3 Position 60 °, Short Actuator 20 A

View all Cam Switches

Subtotal (1 unit)*

£29.62

(exc. VAT)

£35.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 6 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£29.62

*price indicative

RS Stock No.:
269-9741
Mfr. Part No.:
076813 T0-2-8211/IVS
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Series

Eaton Moeller Series T0

Product Type

Cam Switch

Electrical Phase

3

Mount Type

Board

Number of Positions

3

Terminal Type

Screw

Number of Poles

2

Angle of Throw

60 °

IP Rating

IP30

Contact Current

20A

Minimum Operating Temperature

-25°C

Contact Voltage

60V ac

Actuator Type

Short

Maximum Operating Temperature

50°C

Length

92mm

Hazardous Area Certification

NO

Standards/Approvals

UL, VDE 0660, IEC/EN 60947, IEC/EN 60947-3, IEC/EN 60204, CSA, CE

Width

54mm

Depth

92mm

Mechanical Life

400000Cycles

Eaton Cam Switch, 20A Maximum Current, 690V AC Maximum Voltage - 076813 T0-2-8211/IVS


This cam switch is a versatile changeover cam switch designed for use in service distribution boards. With a compact size of 92 x 54 x 55mm, it houses a reliable mechanism capable of handling electrical configurations including 2 poles and a 60° angle of throw. This electrical cam switch effectively manages high power applications while ensuring robust performance across various installations.

Features & Benefits


• Designed for up to 20A operational current for extensive use

• Rated for 690V AC, accommodating high-voltage settings

• Screw terminal connections offer secure and stable wiring

• Maintained actuator function allows consistent performance

• IP30 protection rating safeguards against dust ingress

• Compact design with short thumb grip for easy operation

Applications


• Used for switching in electrical distribution boards

• Ideal for motor disconnection in industrial settings

• Suitable for installation in automated control circuits

• Effective in branch circuits requiring reliable switching

What are the mechanical and electrical lifespan capabilities of this device?


This cam switch features a mechanical lifespan of 400,000 operations, ensuring longevity and reliability in repeated use. The electrical operations align with various current ratings, optimising functionality across applications.

How does the design ensure effective handling of loads?


The switch supports a rated operational current of 20A at AC-3 status, providing robust performance in motor control applications. The rated breaking capacities enhance its ability to handle abrupt load changes without compromising safety.

What type of terminal connections can I use with it?


It accommodates both flexible and solid conductors with a terminal capacity ranging from 0.75 to 2.5mm². This versatility makes it easy to integrate into existing systems without specialised connectors.
