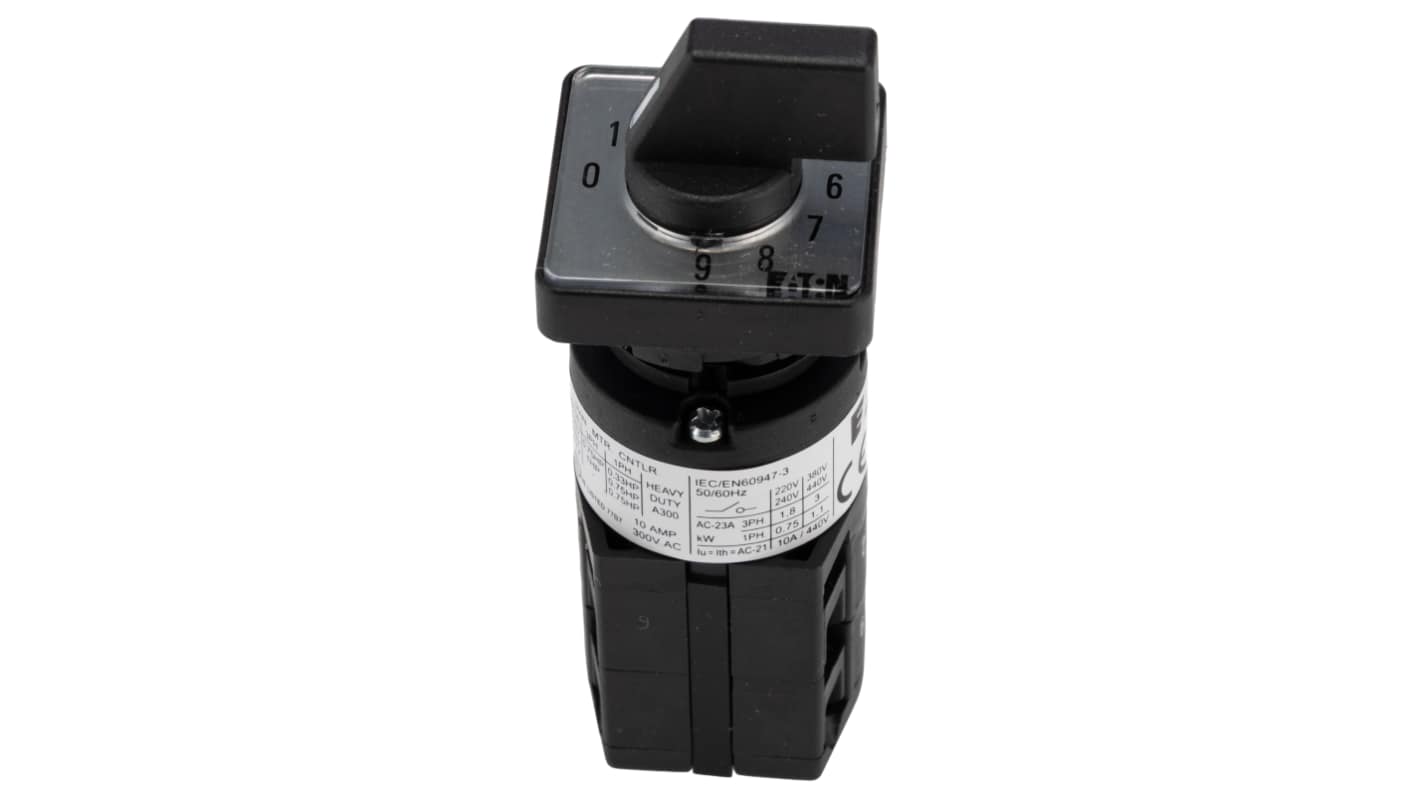

Eaton 10 Position 30 °, Toggle Actuator 10 A
- RS Stock No.:
- 269-9739
- Mfr. Part No.:
- 000699 TM-2-8550/EZ
- Brand:
- Eaton
Subtotal (1 unit)*
£53.78
(exc. VAT)
£64.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.78 |
*price indicative
- RS Stock No.:
- 269-9739
- Mfr. Part No.:
- 000699 TM-2-8550/EZ
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller TM | |
| Electrical Phase | 3 | |
| Number of Positions | 10 | |
| Mount Type | Front | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 30 ° | |
| IP Rating | IP65 | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 500V ac | |
| Actuator Type | Toggle | |
| Maximum Operating Temperature | 50°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | CE, CSA, VDE 0660, IEC/EN 60947-5, UL, UL 508, IEC/EN 60947 | |
| Depth | 87mm | |
| Width | 30mm | |
| Length | 87mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller TM | ||
Electrical Phase 3 | ||
Number of Positions 10 | ||
Mount Type Front | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 30 ° | ||
IP Rating IP65 | ||
Contact Current 10A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 500V ac | ||
Actuator Type Toggle | ||
Maximum Operating Temperature 50°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals CE, CSA, VDE 0660, IEC/EN 60947-5, UL, UL 508, IEC/EN 60947 | ||
Depth 87mm | ||
Width 30mm | ||
Length 87mm | ||
Mechanical Life 1000000Cycles | ||
Eaton Cam Switch, 10A Maximum Current, 500V AC Maximum Voltage - 000699 TM-2-8550/EZ
This cam switch is a versatile multi-step cam switch designed for durable performance in electrical applications. With a compact size of 87 x 30 x 87mm, it is equipped with two contact units and features a toggle actuator for ease of use. This electrical cam switch excels in various environments, making it suitable for automation and control tasks.
Features & Benefits
• Configured for both normally open and normally closed circuits
• Maximum operational current of 10A for reliable performance
• Rated for voltages up to 500V AC to ensure compatibility
• Easy front mounting for straightforward installation
• IP65 rated for protection against dust and moisture
• Mechanical lifespan of 1,000,000 operations guarantees longevity
Applications
• Used for control in industrial machinery
• Suitable for automation and electrical distribution systems
• Ideal for switching operations in mechanical equipment
• Employed in BCD coding for precise control
What is the operational current capability of this device?
The device is rated for a maximum operational current of 10A, suitable for various electrical applications, ensuring it can handle standard loads efficiently.
How does the degree of protection enhance its usability?
With an IP65 rating, the device is protected against dust ingress and water splashes, making it ideal for demanding environments where moisture resistance is crucial.
What are the advantages of its toggle actuator design?
The toggle actuator design allows for simple operation, providing a comfortable grip and precise control while switching, making it user-friendly even in challenging conditions.
In what temperature range can this device operate effectively?
It is designed to operate efficiently within a temperature range of -25 °C to 50 °C, making it adaptable to various environmental conditions without performance degradation.
