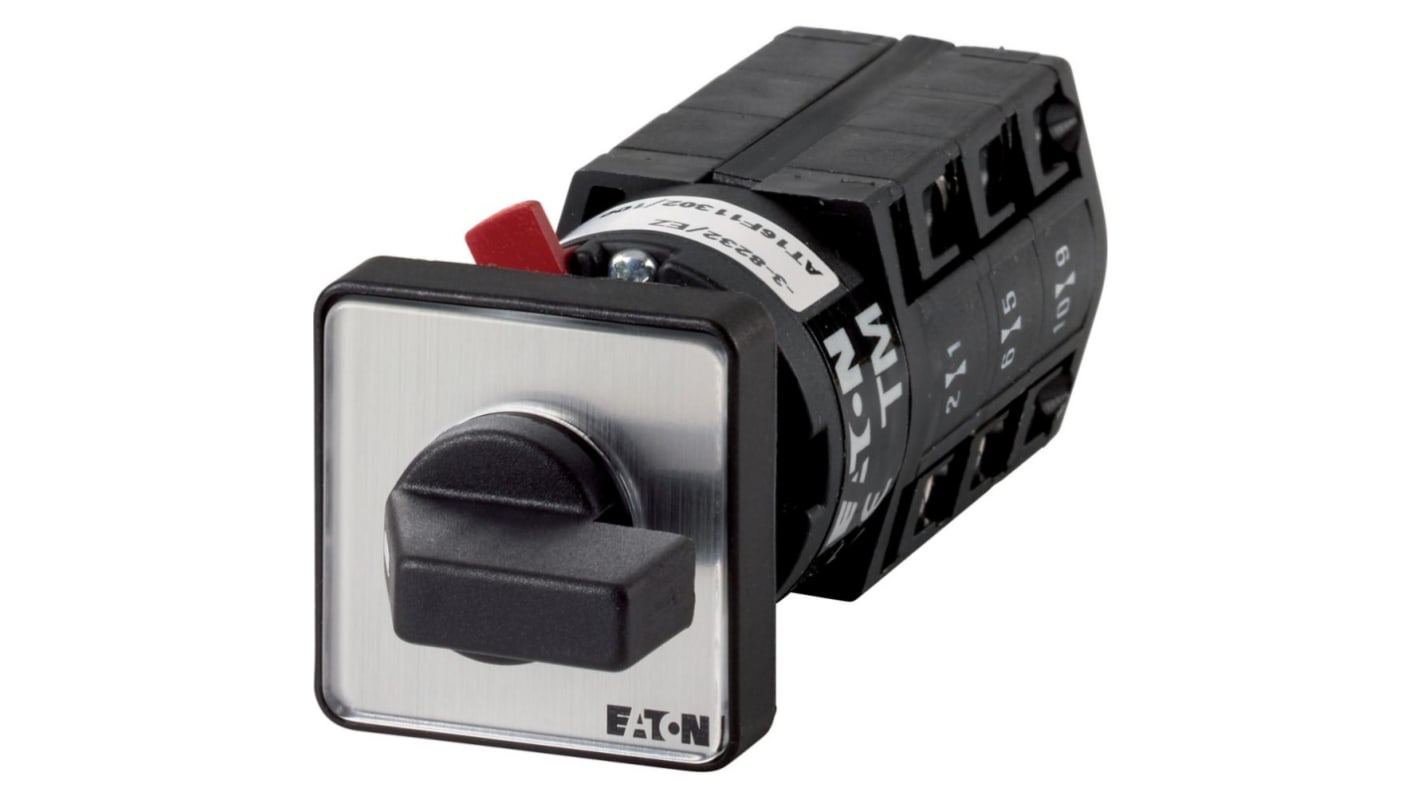

Eaton, 1P 6 Position 30° Multi Step Cam Switch, 500V (Volts), 10A, Toggle Actuator

RS Stock No.:: 271-4703
Mfr. Part No.:: 015537 TM-3-8243/EZ
Brand:: Eaton

Eaton, 1P 6 Position 30° Multi Step Cam Switch, 500V (Volts), 10A, Toggle Actuator

Available to back order for despatch 03/09/2024

Price Each

£59.78

(exc. VAT)

£71.74

(inc. VAT)

Units	Per unit
1 +	£59.78

RS Stock No.:: 271-4703
Mfr. Part No.:: 015537 TM-3-8243/EZ
Brand:: Eaton

Technical Reference

Datasheet - 015537

Legislation and Compliance

COO (Country of Origin):: AT

Product Details

The Eaton electrical step switch disconnector used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The step switch disconnector has black thumb grip and front plate protective cover.

Standards IEC/EN 60947
VDE approved
CSA approved
UL approved
Auxiliary switch as per IEC/EN 60947-5-1
Part group reference TM

Note

Eaton formerly known as Moeller

Specifications

Attribute	Value
Pole and Throw Configuration	1P
Series	Eaton Moeller
Cam Switch Type	Multi Step Cam Switch
Maximum Current	10A
Maximum Voltage	500V (Volts)
Number of Positions	6
Angle of Throw	30°
Actuator Type	Toggle
