Eaton, 1P 5 Position 45°, 690V ac, 20A, Toggle Actuator
- RS Stock No.:
- 269-9727
- Mfr. Part No.:
- 026988 T0-3-8232/E
- Brand:
- Eaton
Subtotal (1 unit)*
£36.41
(exc. VAT)
£43.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.41 |
*price indicative
- RS Stock No.:
- 269-9727
- Mfr. Part No.:
- 026988 T0-3-8232/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller Series T0 | |
| Pole and Throw Configuration | 1P | |
| Normal State Configuration | NO/NC | |
| Electrical Phase | 3 | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V ac | |
| Number of Positions | 5 | |
| Terminal Type | Screw | |
| Angle of Throw | 45° | |
| Length | 95mm | |
| Width | 48mm | |
| Depth | 95mm | |
| Actuator Type | Toggle | |
| Mounting Type | Flush Mount | |
| Dimensions | 95 x 48 x 95mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller Series T0 | ||
Pole and Throw Configuration 1P | ||
Normal State Configuration NO/NC | ||
Electrical Phase 3 | ||
Maximum Current 20A | ||
Maximum Voltage 690V ac | ||
Number of Positions 5 | ||
Terminal Type Screw | ||
Angle of Throw 45° | ||
Length 95mm | ||
Width 48mm | ||
Depth 95mm | ||
Actuator Type Toggle | ||
Mounting Type Flush Mount | ||
Dimensions 95 x 48 x 95mm | ||
- COO (Country of Origin):
- GB

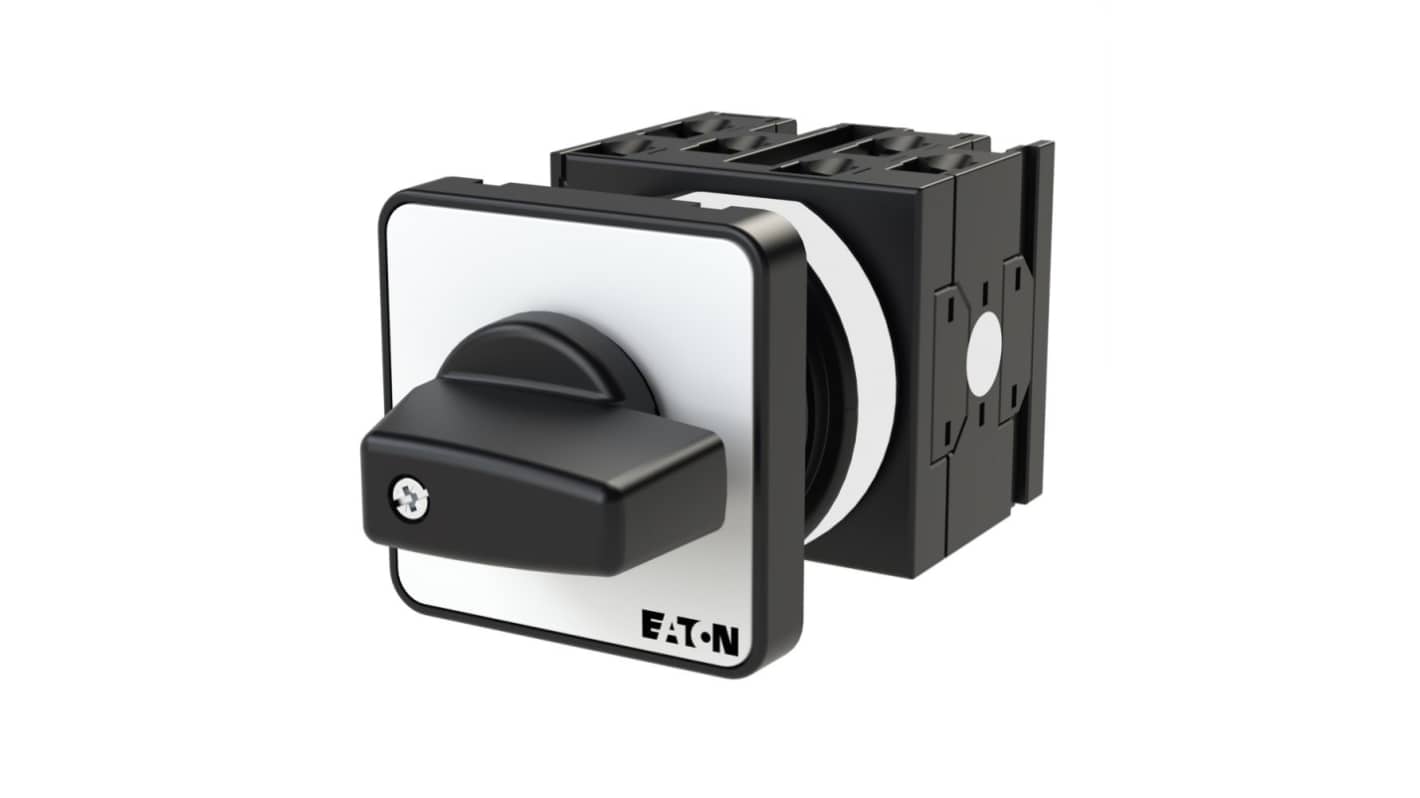

Eaton Cam Switch, 20A Maximum Current, 690V AC Maximum Voltage - 026988 T0-3-8232/E
This cam switch is a versatile electrical switch designed primarily for industrial applications. Known for its reliability, it offers a multi-step configuration with five distinct positions, facilitating seamless control in automation systems. The switch is flush mounted, making it suitable for space-constrained environments. With a maximum current rating of 20A and a voltage capacity of 690V AC, it efficiently manages electrical loads in various settings.
Features & Benefits
• Multi-step cam switch enhances control over devices
• Toggle actuator allows for easy operation and handling
• Single-pole design simplifies installation and usage
• Durable construction ensures longevity with 400,000 mechanical operations
• Flush mount design provides a clean, professional finish
• IP65 rating protects against dust and water ingress
• Toggle actuator allows for easy operation and handling
• Single-pole design simplifies installation and usage
• Durable construction ensures longevity with 400,000 mechanical operations
• Flush mount design provides a clean, professional finish
• IP65 rating protects against dust and water ingress
Applications
• Utilised in motor disconnect for safety
• Implemented in branch circuits for effective load management
• Suitable for front mounting in switchboards
• Ideal for industrial controls in automated settings
• Implemented in branch circuits for effective load management
• Suitable for front mounting in switchboards
• Ideal for industrial controls in automated settings
What type of mounting does this switch support?
It supports flush mounting, ensuring a streamlined installation on control panels.
How does the cam switch enhance operational flexibility?
The multi-step feature with five positions allows for precise control in various applications, including motor control.
What is the maximum operating temperature range for this switch?
It can operate effectively in ambient temperatures ranging from -25°C to 50°C, ensuring adaptability in diverse environments.
What materials and features contribute to its reliability?
Its design features strong insulating materials and corrosion resistance, enabling it to withstand mechanical impacts and environmental factors.
What is the significance of the IP65 rating?
The IP65 rating signifies that the switch is protected against dust and low-pressure water jets, enhancing its suitability for industrial settings.
