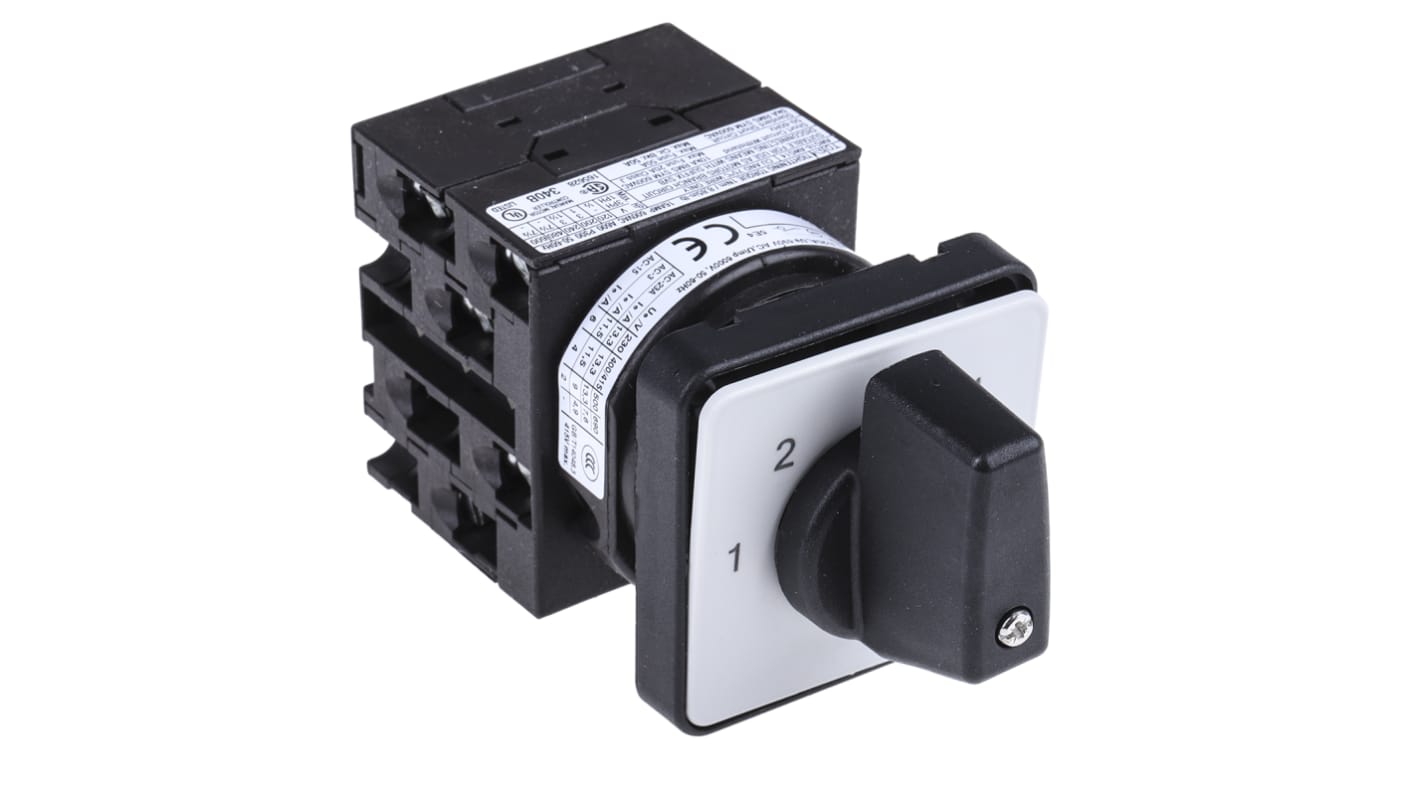

Eaton, SP 5 Position 45° Multi Step Cam Switch, 690V ac, 20A, Rotary Actuator

Subtotal (1 unit)*

£41.84

(exc. VAT)

£50.21

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 10 unit(s) shipping from 06 October 2025
  • Plus 8 unit(s) shipping from 06 October 2025
  • Plus 20 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£41.84

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Each

£20.03

(exc. VAT)

£24.04

(inc. VAT)

RS Stock No.:
257-9659
Distrelec Article No.:
304-23-074
Mfr. Part No.:
78627336 T0-3-8232/E/EZ-P1(RS257-9659)
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Cam Switch Type

Multi Step Cam Switch

Pole and Throw Configuration

SP

Maximum Current

20A

Maximum Voltage

690V ac

Number of Positions

5

Terminal Type

Screw

Angle of Throw

45°

Length

48mm

Width

48mm

Depth

100mm

Actuator Type

Rotary

Dimensions

48 x 48 x 100mm

RoHS Status: Exempt

COO (Country of Origin):
GB

Eaton Rotary Cam Switches - T0 Series


The T0 series of rotary cam switches and switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of cam switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These cam switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mount, flush-mount, rear mount, and service distribution board mount). These cam switches can be selected in a multitude of contact sequence configurations.

This professional range of cam switches offers corrosion resistance, weather sustainability, insulating material resistance to normal heat and fire due to internal electric effects and more. It comes with various advantages including high reliability, high adaptability, low power usage and makes the product efficient in its performance.

Features and Benefits


• Emergency stop provision
• Flexibility in application design
• Variety of mounting options
• Option of either 2, 4, 6 or 8 auxiliary contacts
• 45, 60 or 90° switching angle
• High precision
• Long mechanical lifespan
• Low power consumption
• Multipole and multi position (up to 4 positions for bespoke switching operations)
• Performs local isolation, manual override & safety switch functions
• T0 Series fit a standard front plate of 45 x 45 mm
• For spare rotary thumb stick (black) see stock no. 176-9759

Applications


• Branch circuits
• Circuit breaker control panel switch
• Electric engineering
• Industrial automation
• Low-voltage cam switch technology
• Motor disconnect applications
• Off-load switch
• Change-over switch
• Process control engineering

Eaton Rotary Cam Switch With Rotary Actuator, 5 Positions, 20A - T0 Series - 78627336 T0-3-8232/E/EZ-P1


Manually power down or disconnect machinery for safe maintenance with this rotary cam switch from Eaton. It's supplied with mounting accessories for quick and simple assembly. The reliable switch safely isolates electrical current to stop operators from accidentally shocking themselves when undertaking equipment repairs. Thanks to its broad operating temperature range of -25°C to +40°C, it's suitable for use in a variety of demanding environments. Use this versatile device as an off-load switch, circuit breaker or control switch in your low-voltage industrial applications.

• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Long mechanical lifespan of over 4 million operations for an extended service life
• Maximum operating frequency of 1200 operations per hour for rapid switching capabilities

How do I install this switch?


The switch uses screw terminals for secure wiring that stays firmly in position, even in the event of shocks or heavy vibrations. To mount the device, use the included adapter plate and mounting accessories to screw it into place on a machine.

Note

Eaton formerly known as Moeller
