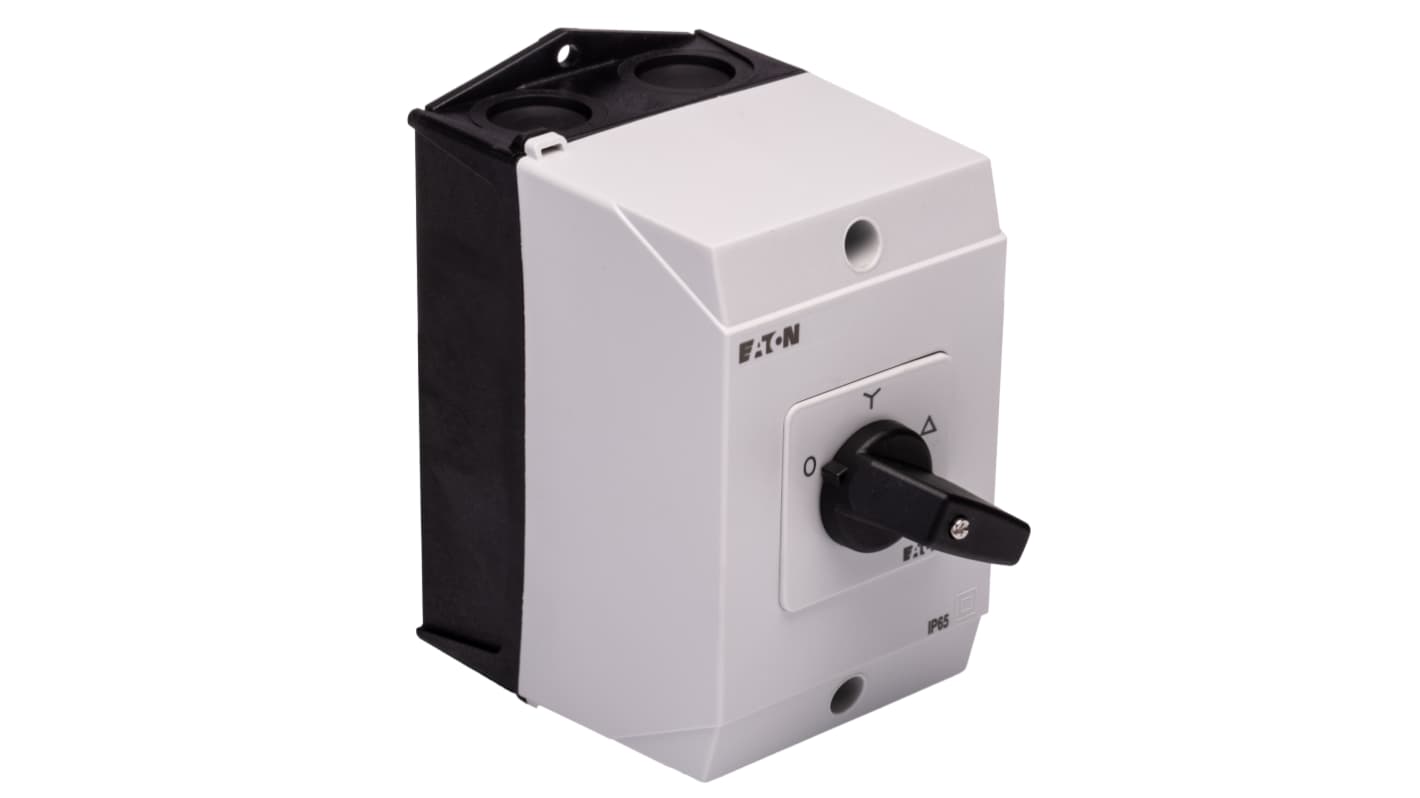

Eaton 3 Position 60 °, Short Actuator 20 A
- RS Stock No.:
- 269-9709
- Distrelec Article No.:
- 135-11-878
- Mfr. Part No.:
- 207140 T0-4-8410/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£52.19
(exc. VAT)
£62.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £52.19 |
*price indicative
- RS Stock No.:
- 269-9709
- Distrelec Article No.:
- 135-11-878
- Mfr. Part No.:
- 207140 T0-4-8410/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller Series T0 | |
| Product Type | Cam Switch | |
| Number of Positions | 3 | |
| Mount Type | Surface Mount | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Actuator Type | Short | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 40°C | |
| Depth | 122mm | |
| Width | 80mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 60204, VDE 0660, IEC/EN 60947-3 | |
| Hazardous Area Certification | NO | |
| Length | 137mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller Series T0 | ||
Product Type Cam Switch | ||
Number of Positions 3 | ||
Mount Type Surface Mount | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Actuator Type Short | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 40°C | ||
Depth 122mm | ||
Width 80mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 60204, VDE 0660, IEC/EN 60947-3 | ||
Hazardous Area Certification NO | ||
Length 137mm | ||
Mechanical Life 400000Cycles | ||
Eaton Series T0 Cam Switch, 20A Maximum Current, NO/NC Normal State Configuration - 207140 T0-4-8410/I1
This cam switch from Eaton, known for its short throw and high current rating, provides efficient switching capabilities for various industrial applications. With its compact design and reliable performance, it offers a versatile solution for controlling electrical circuits.
Features & Benefits
• Surface mounting design for easy installation
• Screw terminals for secure connections
• Short angle of throw for quick and precise switching
• NO/NC configuration for flexible operation
• 3P configuration for enhanced functionality
Applications
• Ideal for use in control panels
• Suitable for industrial automation systems
Can it be used for controlling high voltage circuits?
Yes, it is designed to handle voltages up to 690V ac.
Will it fit in standard electrical enclosures?
Yes, the compact design allows for surface mounting in various enclosures.
Is it suitable for applications requiring both Normally Open and Normally Closed configurations?
Yes, the cam switch can be configured to operate in both NO and NC modes.
