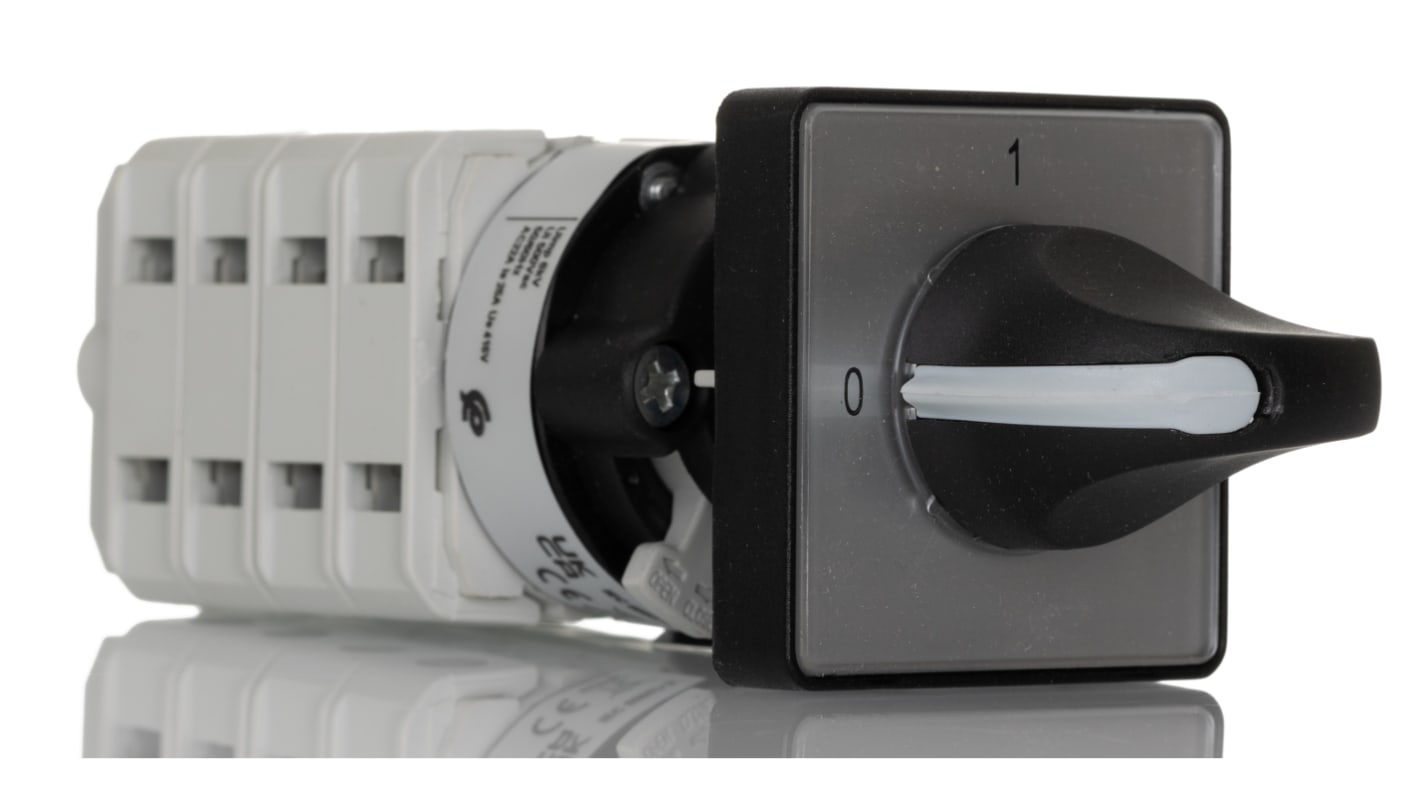

RS PRO, 8P 2 Position 60° Rotary Cam Switch, 500V ac, 25A, Knob Actuator
- RS Stock No.:
- 265-7682
- Brand:
- RS PRO
Subtotal (1 unit)*
£46.27
(exc. VAT)
£55.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9 unit(s) shipping from 27 October 2025
- Plus 16 unit(s) shipping from 06 January 2026
- Plus 999,999,974 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.27 |
*price indicative
- RS Stock No.:
- 265-7682
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Pole and Throw Configuration | 8P | |
| Cam Switch Type | Rotary Cam Switch | |
| Normal State Configuration | 8NO/8NC | |
| Electrical Phase | 1 | |
| Maximum Current | 25A | |
| Maximum Voltage | 500V ac | |
| Number of Positions | 2 | |
| Terminal Type | Screw | |
| Angle of Throw | 60° | |
| Length | 50mm | |
| Width | 50mm | |
| Depth | 85.5mm | |
| Actuator Type | Knob | |
| Dimensions | 50 x 50 x 85.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Pole and Throw Configuration 8P | ||
Cam Switch Type Rotary Cam Switch | ||
Normal State Configuration 8NO/8NC | ||
Electrical Phase 1 | ||
Maximum Current 25A | ||
Maximum Voltage 500V ac | ||
Number of Positions 2 | ||
Terminal Type Screw | ||
Angle of Throw 60° | ||
Length 50mm | ||
Width 50mm | ||
Depth 85.5mm | ||
Actuator Type Knob | ||
Dimensions 50 x 50 x 85.5mm | ||
- COO (Country of Origin):
- ES
RS PRO 8 Pole 2 Position 90° Rotary Cam Switch (500V/ 25A)
A tough and reliable 90° rotary cam switch with 4 Pole configuration and 2 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and a 22mm mounting for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and a 22mm mounting for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
Rotary cam switch
8 Pole configuration
2 positions
Marked 0 to 1
IP65 rated
Contact rating of 25 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
22mm fixing
8 Pole configuration
2 positions
Marked 0 to 1
IP65 rated
Contact rating of 25 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
22mm fixing
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
