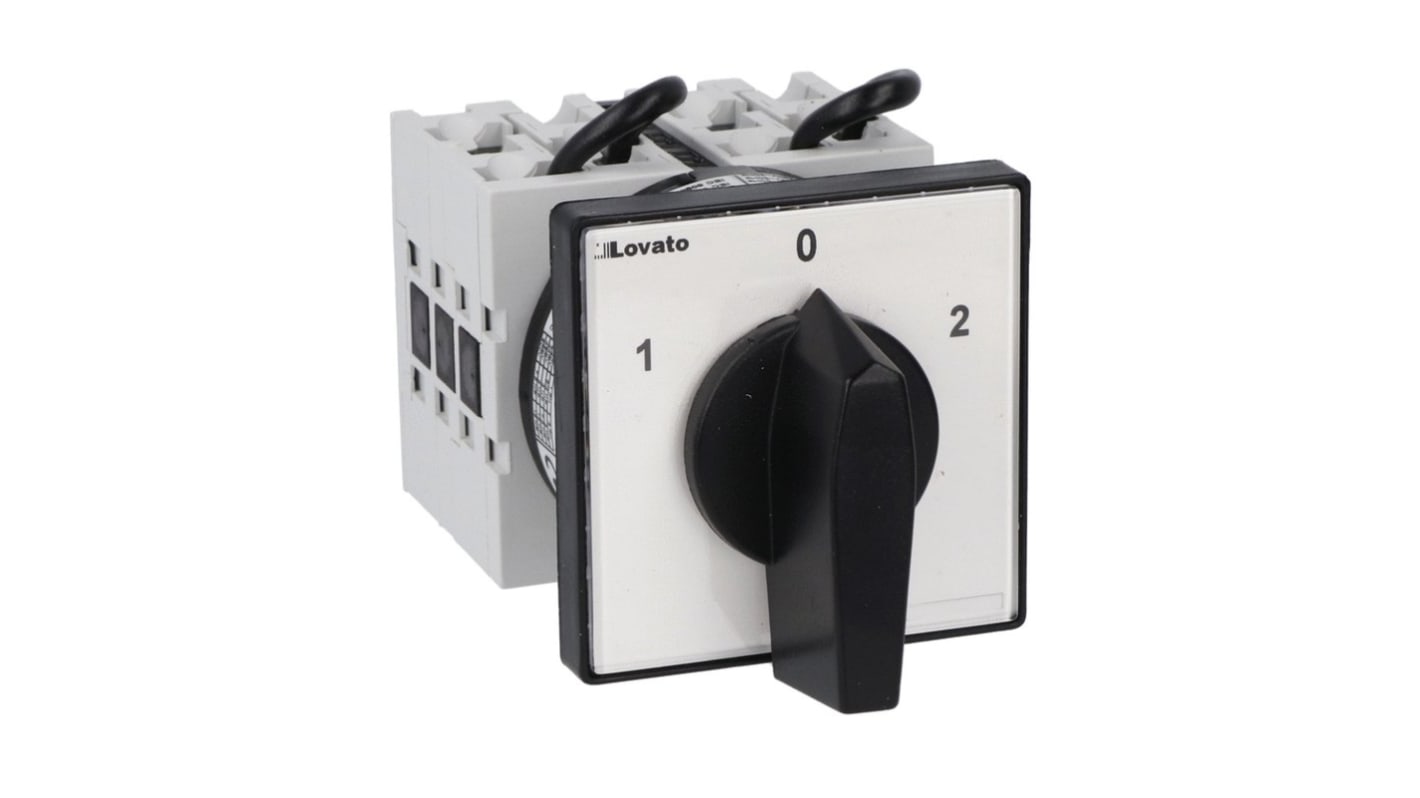

Lovato 3 Position 60 °, Short Black Handle Actuator 32 A
- RS Stock No.:
- 248-5591
- Mfr. Part No.:
- GX3211U
- Brand:
- Lovato
Subtotal (1 unit)*
£68.45
(exc. VAT)
£82.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.45 |
*price indicative
- RS Stock No.:
- 248-5591
- Mfr. Part No.:
- GX3211U
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Product Type | Cam Switch | |
| Series | GX | |
| Electrical Phase | 3, 1 | |
| Number of Positions | 3 | |
| Mount Type | Front | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP20, IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 32A | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 55°C | |
| Actuator Type | Short Black Handle | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC/EN/BS 60947-5-1, IEC/EN/BS 60947-1, UL 508 | |
| Width | 26.5mm | |
| Length | 43mm | |
| Depth | 26.5mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Product Type Cam Switch | ||
Series GX | ||
Electrical Phase 3, 1 | ||
Number of Positions 3 | ||
Mount Type Front | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 60 ° | ||
IP Rating IP20, IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 32A | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 55°C | ||
Actuator Type Short Black Handle | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC/EN/BS 60947-5-1, IEC/EN/BS 60947-1, UL 508 | ||
Width 26.5mm | ||
Length 43mm | ||
Depth 26.5mm | ||
Mechanical Life 1000000Cycles | ||
Lovato GX Series Cam Switch, 32A Maximum Current, Screw Terminal - GX3211U
This cam switch is crucial for motor control across a variety of electrical applications. It accommodates both single-phase and three-phase operations, making it suitable for the automation, electronics, and mechanical sectors. The switch features a robust design that ensures reliable performance in diverse conditions and allows for seamless integration into existing systems while simplifying operation.
Features & Benefits
• Designed with a 3P configuration to support multiple connections
• Capable of handling up to 32A for effective performance
• Front mounting enhances access and visibility
• Screw terminal design ensures secure wiring
• Short black handle provides ergonomic operation
Applications
• Utilised for motor control in industrial machinery
• Suitable for reversing motor applications
• Applicable in automation systems that require multiple positions
• Ideal for installation in electrical control panels
What is the installation process for the switch?
Installation is straightforward due to its front-mount design and screw terminal features.
Can it be used for both single and three-phase motors?
Yes, it is compatible with both single-phase and three-phase systems, offering versatility.
What is the angle of throw for operation?
The switch operates with a throw angle of 60°, ensuring precise positioning.
