Schneider Electric 2 Position 90 °, Knob Actuator 12 A
- RS Stock No.:
- 211-8384
- Mfr. Part No.:
- K1H014UCH
- Brand:
- Schneider Electric
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£90.71
(exc. VAT)
£108.85
(inc. VAT)
- RS Stock No.:
- 211-8384
- Mfr. Part No.:
- K1H014UCH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Cam Switch | |
| Series | K1 | |
| Electrical Phase | 3 | |
| Mount Type | Front | |
| Number of Positions | 2 | |
| Number of Poles | 4 | |
| Terminal Type | Screw | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 12A | |
| Minimum Operating Temperature | -25°C | |
| Actuator Type | Knob | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | EN/IEC 60947-3 | |
| Hazardous Area Certification | No | |
| Depth | 77mm | |
| Length | 45mm | |
| Width | 45mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Cam Switch | ||
Series K1 | ||
Electrical Phase 3 | ||
Mount Type Front | ||
Number of Positions 2 | ||
Number of Poles 4 | ||
Terminal Type Screw | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 12A | ||
Minimum Operating Temperature -25°C | ||
Actuator Type Knob | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals EN/IEC 60947-3 | ||
Hazardous Area Certification No | ||
Depth 77mm | ||
Length 45mm | ||
Width 45mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ

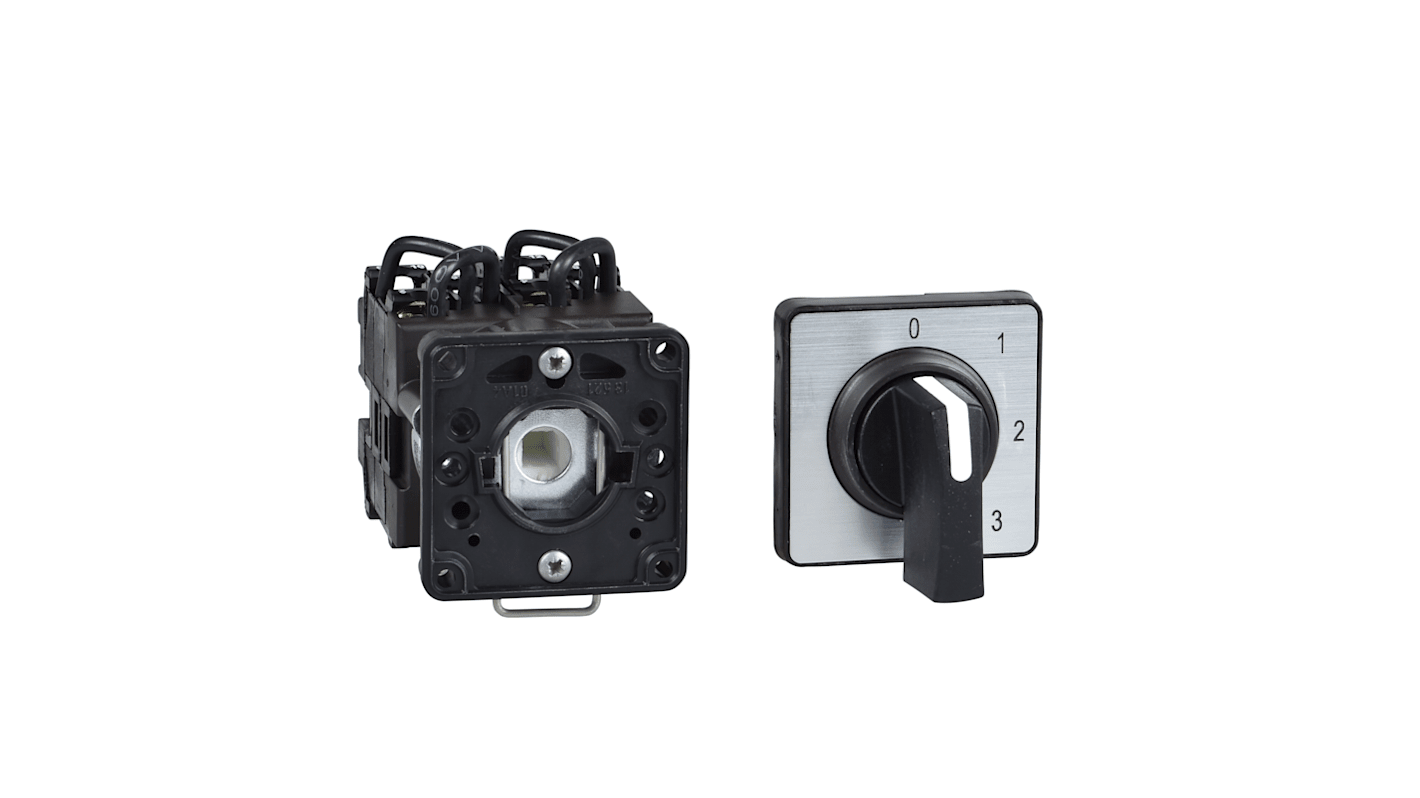

The Schneider Electrics 4 pole cam changeover switch of 90° angle with 12 A.
Specifically Designed
Compact Size
Easy to Integrate
