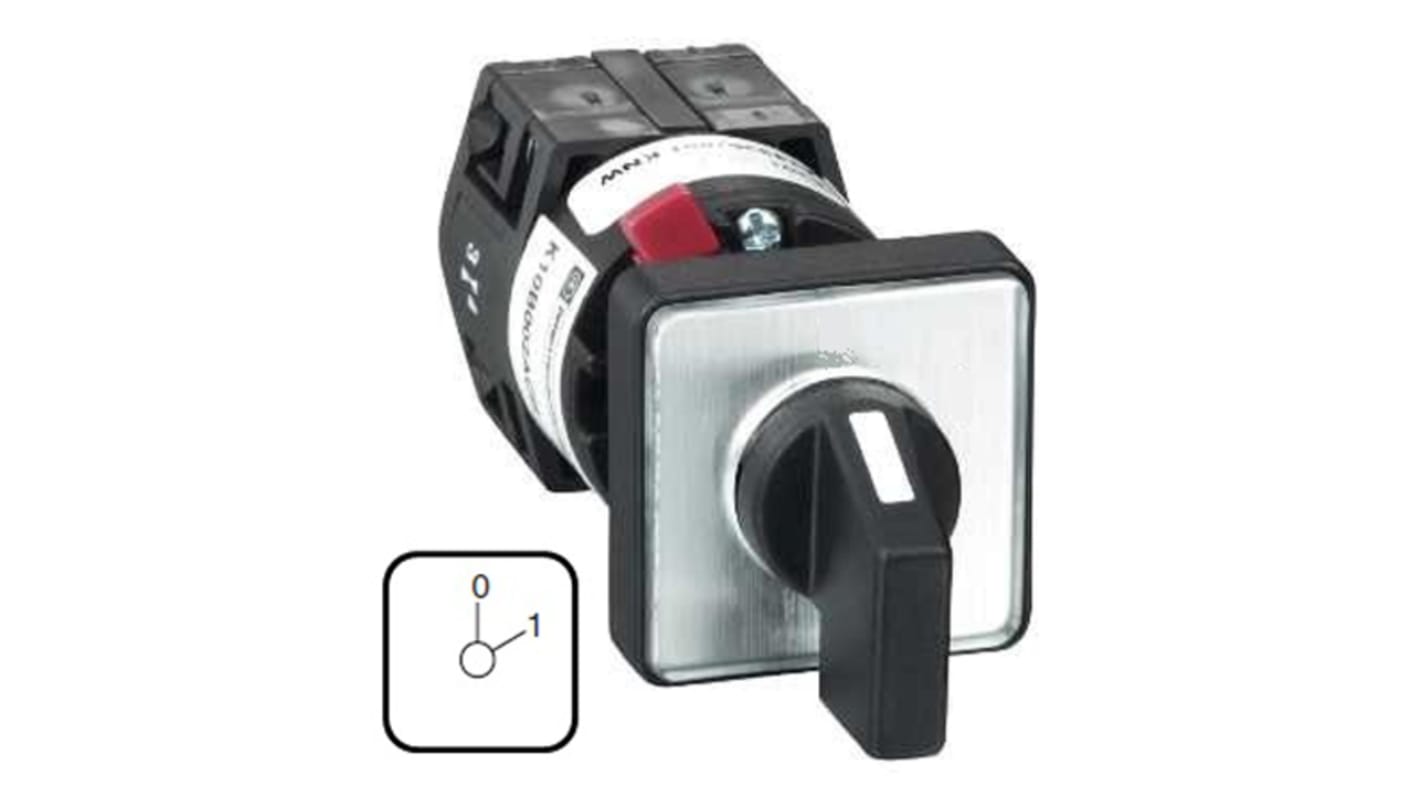

Schneider Electric 2 Position 45 °, Black Handle Actuator 12 A
- RS Stock No.:
- 123-8128
- Mfr. Part No.:
- K1A001ALH
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£19.45
(exc. VAT)
£23.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.45 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 123-8128
- Mfr. Part No.:
- K1A001ALH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Cam Switch | |
| Series | Harmony K | |
| Electrical Phase | 3 | |
| Mount Type | Front | |
| Number of Positions | 2 | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP40 | |
| Contact Current | 12A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Contact Voltage | 690V ac | |
| Actuator Type | Black Handle | |
| Width | 45mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1 | |
| Length | 45mm | |
| Depth | 45mm | |
| Better World Product | Yes | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Cam Switch | ||
Series Harmony K | ||
Electrical Phase 3 | ||
Mount Type Front | ||
Number of Positions 2 | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 45 ° | ||
IP Rating IP40 | ||
Contact Current 12A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Contact Voltage 690V ac | ||
Actuator Type Black Handle | ||
Width 45mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1 | ||
Length 45mm | ||
Depth 45mm | ||
Better World Product Yes | ||
Mechanical Life 1000000Cycles | ||
RoHS Status: Exempt
K10 Industrial Cam Switches
Thermal current rating 10A
16 or 22mm diameter fixing hole
Operating temperature -20 to +55°C
Slow break contacts
