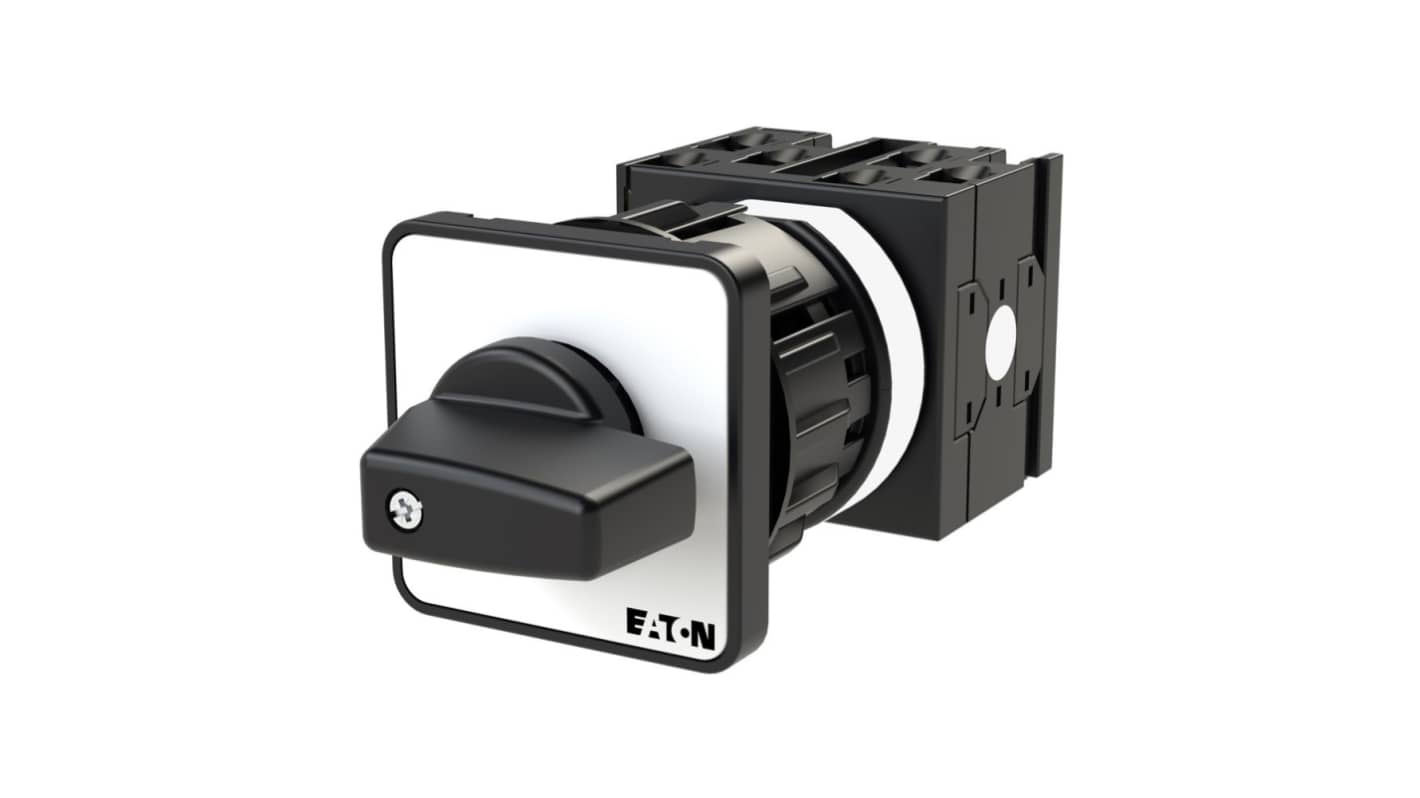

Eaton, 3PST 7 Position 45° Voltmeter Cam Switch, 690V ac, 20A
- RS Stock No.:
- 103-8451
- Mfr. Part No.:
- 098186 T0-3-8007/EZ
- Brand:
- Eaton
Subtotal (1 unit)*
£37.90
(exc. VAT)
£45.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £37.90 |
*price indicative
- RS Stock No.:
- 103-8451
- Mfr. Part No.:
- 098186 T0-3-8007/EZ
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Cam Switch Type | Voltmeter Cam Switch | |
| Pole and Throw Configuration | 3PST | |
| Normal State Configuration | 3NO | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V ac | |
| Number of Positions | 7 | |
| Terminal Type | Screw | |
| Angle of Throw | 45° | |
| Length | 48mm | |
| Width | 120mm | |
| Depth | 48mm | |
| Dimensions | 48 x 120 x 48mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Cam Switch Type Voltmeter Cam Switch | ||
Pole and Throw Configuration 3PST | ||
Normal State Configuration 3NO | ||
Electrical Phase 1, 3 | ||
Maximum Current 20A | ||
Maximum Voltage 690V ac | ||
Number of Positions 7 | ||
Terminal Type Screw | ||
Angle of Throw 45° | ||
Length 48mm | ||
Width 120mm | ||
Depth 48mm | ||
Dimensions 48 x 120 x 48mm | ||
- COO (Country of Origin):
- GB
Eaton Cam Switch, 3PST Pole and Throw Configuration, 20A Maximum Current - 098186 T0-3-8007/EZ
This cam switch is designed for precise electrical control in various automation applications. Featuring a 3PST configuration, it allows seamless position selection between multiple circuits. With dimensions of 115 x 48 x 115mm, this front-mounted voltmeter cam switch delivers reliable performance under demanding circumstances.
Features & Benefits
• 20A maximum current rating accommodates robust electrical demands
• Rated for up to 690V AC, ensuring versatile application potential
• Toggle actuator type enhances user-friendly operation
• IP65 degree of protection prevents ingress of dust and moisture
• Six contacts enable multiple phase connections for flexibility
• 7-position functionality allows precise circuit management
• Rated for up to 690V AC, ensuring versatile application potential
• Toggle actuator type enhances user-friendly operation
• IP65 degree of protection prevents ingress of dust and moisture
• Six contacts enable multiple phase connections for flexibility
• 7-position functionality allows precise circuit management
Applications
• Used for voltage selection between phase-phase and phase-neutral
• Ideal for testing voltages in electrical installations
• Suitable for control in machinery and industrial equipment
• Utilised in electrical panels for multi-phase control systems
• Ideal for testing voltages in electrical installations
• Suitable for control in machinery and industrial equipment
• Utilised in electrical panels for multi-phase control systems
What is the rated operational voltage for this device?
The device is rated for an operational voltage of up to 690V AC, providing extensive compatibility with various electrical systems and equipment.
How does the toggle actuator improve usability during operation?
The toggle actuator provides a simple and intuitive way to switch between positions, making it easy for users to adjust settings quickly while ensuring robust performance.
What is the significance of the IP65 rating for this switch?
An IP65 rating indicates that the switch is fully dust-tight and protected against low-pressure water jets, making it suitable for outdoor use and in harsh environments where moisture and debris are present.
Can this switch handle short-circuit conditions?
Yes, it has a rated short-time withstand current of 320 Arms for 1 second, highlighting its robustness in managing short-circuit conditions effectively.
What is the installation process for this cam switch?
The front-mounted design allows for straightforward installation into control panels, with screw terminals facilitating secure electrical connections for ease of use.
Note
Eaton formerly known as Moeller
