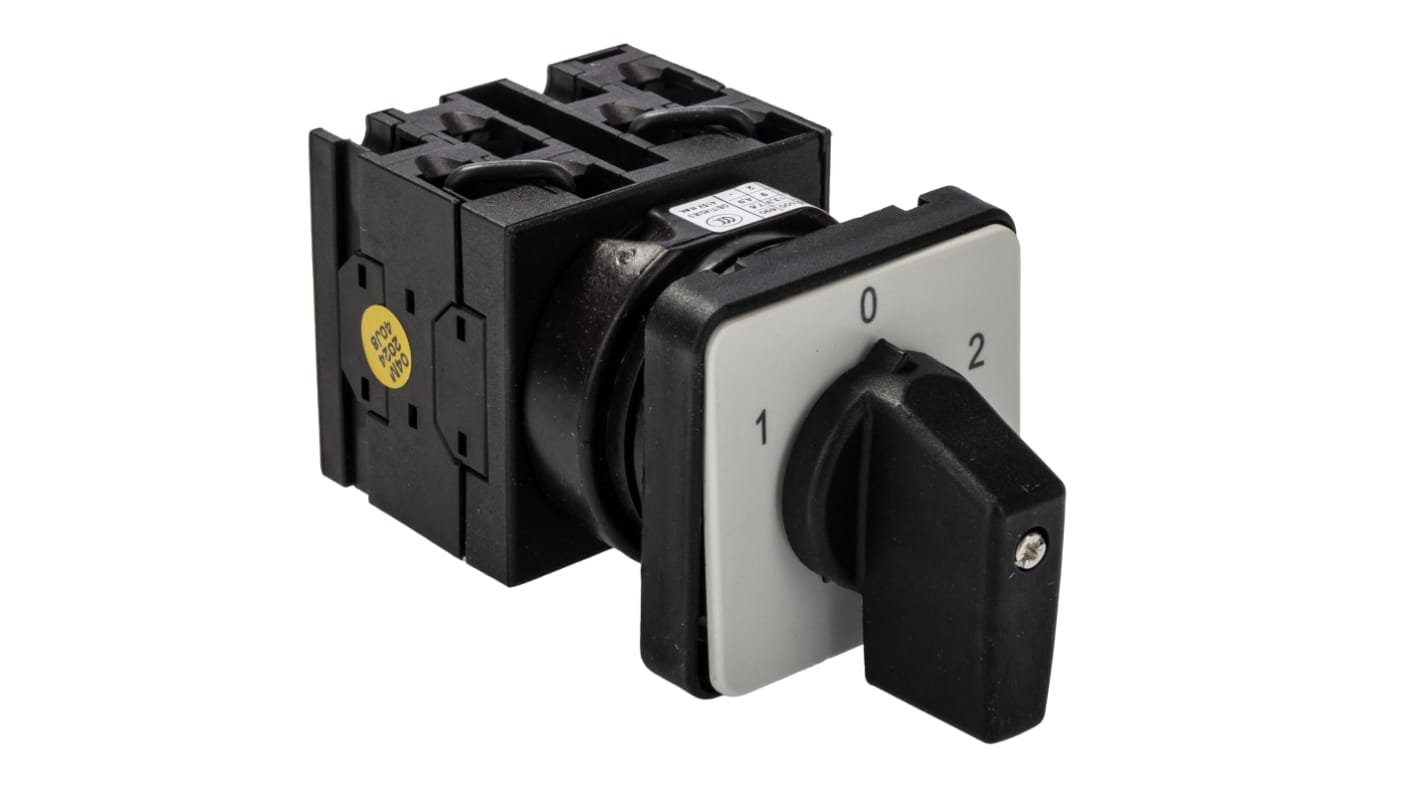

Eaton 3 Position 60 °, Toggle Actuator 20 A
- RS Stock No.:
- 103-8443
- Mfr. Part No.:
- 091047 T0-3-8401/E
- Brand:
- Eaton
Subtotal (1 unit)*
£30.81
(exc. VAT)
£36.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.81 |
*price indicative
- RS Stock No.:
- 103-8443
- Mfr. Part No.:
- 091047 T0-3-8401/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Electrical Phase | 3, 1 | |
| Number of Positions | 3 | |
| Mount Type | Flush | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V ac | |
| Actuator Type | Toggle | |
| Hazardous Area Certification | No | |
| Depth | 48mm | |
| Length | 95mm | |
| Width | 48mm | |
| Standards/Approvals | CSA-C22.2 No. 94, UL 60947-4-1, CSA - C22.2 No. 60947-4-1-14, CSA, VDE 0660, UL, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, CE marking | |
| Mechanical Life | 10000000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Electrical Phase 3, 1 | ||
Number of Positions 3 | ||
Mount Type Flush | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V ac | ||
Actuator Type Toggle | ||
Hazardous Area Certification No | ||
Depth 48mm | ||
Length 95mm | ||
Width 48mm | ||
Standards/Approvals CSA-C22.2 No. 94, UL 60947-4-1, CSA - C22.2 No. 60947-4-1-14, CSA, VDE 0660, UL, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, CE marking | ||
Mechanical Life 10000000Operations | ||
- COO (Country of Origin):
- GB
Eaton Moeller Series Cam Switch, 20A Maximum Current, 3NO Normal State Configuration - 091047 T0-3-8401/E
This cam switch by Eaton offers a reliable solution for motor reversing and control applications. With a maximum current of 20 A and a high voltage rating of 690 V AC, this switch ensures efficient operation.
Features & Benefits
• Designed for motor reversing applications to control the direction of rotation
• With a maximum current of 20 A, it can handle heavy electrical loads
• The screw terminal ensures a secure and reliable connection
• Featuring 3 positions for flexible operation
• The dimensions of 48 x 100 x 48mm make it suitable for various installations
Applications
• Ideal for use in control panels and switchgear assemblies
• Can be used for applications requiring motor direction changes
Can it handle high current loads efficiently?
Yes, it has a maximum current rating of 20 A, making it suitable for heavy-duty applications.
Will it work for motor reversing applications?
Yes, this switch is designed specifically for motor reversing functions.
Is the screw terminal type easy to install?
Yes, the screw terminals provide a secure and reliable connection for quick and convenient installation.
Note
Eaton formerly known as Moeller
