IKO Nippon Thompson Standard Type Cam Follower Cam Follower CFKR90UUR 14 mm ID, 90 mm OD
- RS Stock No.:
- 255-0101
- Mfr. Part No.:
- CFKR90UUR
- Brand:
- IKO Nippon Thompson
Subtotal (1 unit)*
£91.59
(exc. VAT)
£109.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £91.59 |
*price indicative
- RS Stock No.:
- 255-0101
- Mfr. Part No.:
- CFKR90UUR
- Brand:
- IKO Nippon Thompson
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IKO Nippon Thompson | |
| Product Type | Cam Follower | |
| Roller Diameter | 90mm | |
| Roller Width | 35mm | |
| Sub Type | Standard Type Cam Follower | |
| Bore Size | 14mm | |
| Static Load Rating | 85100N | |
| Dynamic Load Rating | 45400N | |
| Roller Shape | Crowned | |
| Roller Style | Stud | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand IKO Nippon Thompson | ||
Product Type Cam Follower | ||
Roller Diameter 90mm | ||
Roller Width 35mm | ||
Sub Type Standard Type Cam Follower | ||
Bore Size 14mm | ||
Static Load Rating 85100N | ||
Dynamic Load Rating 45400N | ||
Roller Shape Crowned | ||
Roller Style Stud | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP

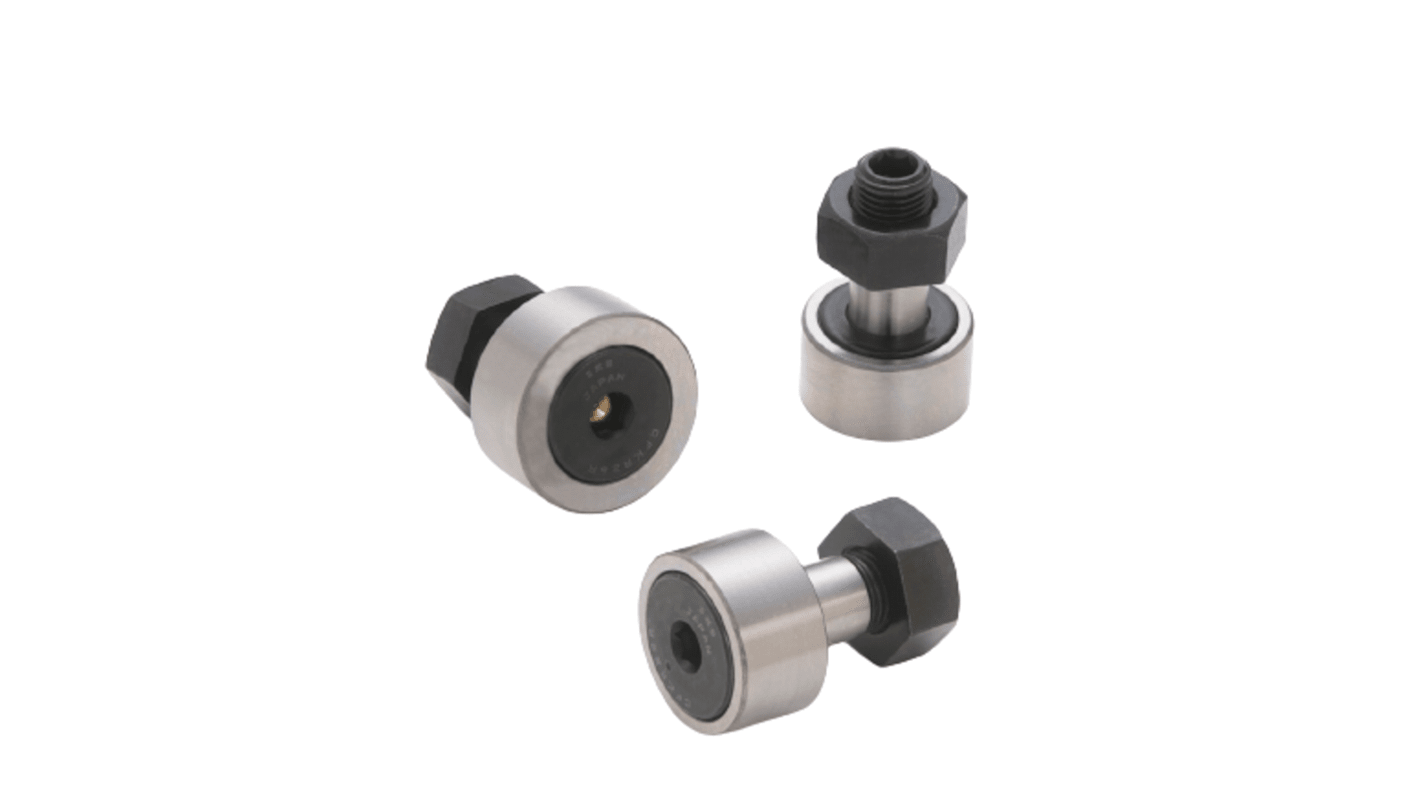

The IKO Nippon Thompson cam followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation with superior rotational performance, a low coefficient of friction and high load capacity. Double hex hole cam followers have a structure with hexagon sockets at each end of the stud, allowing for use in any mounting location.
High carbon steel made
Double hex hole
