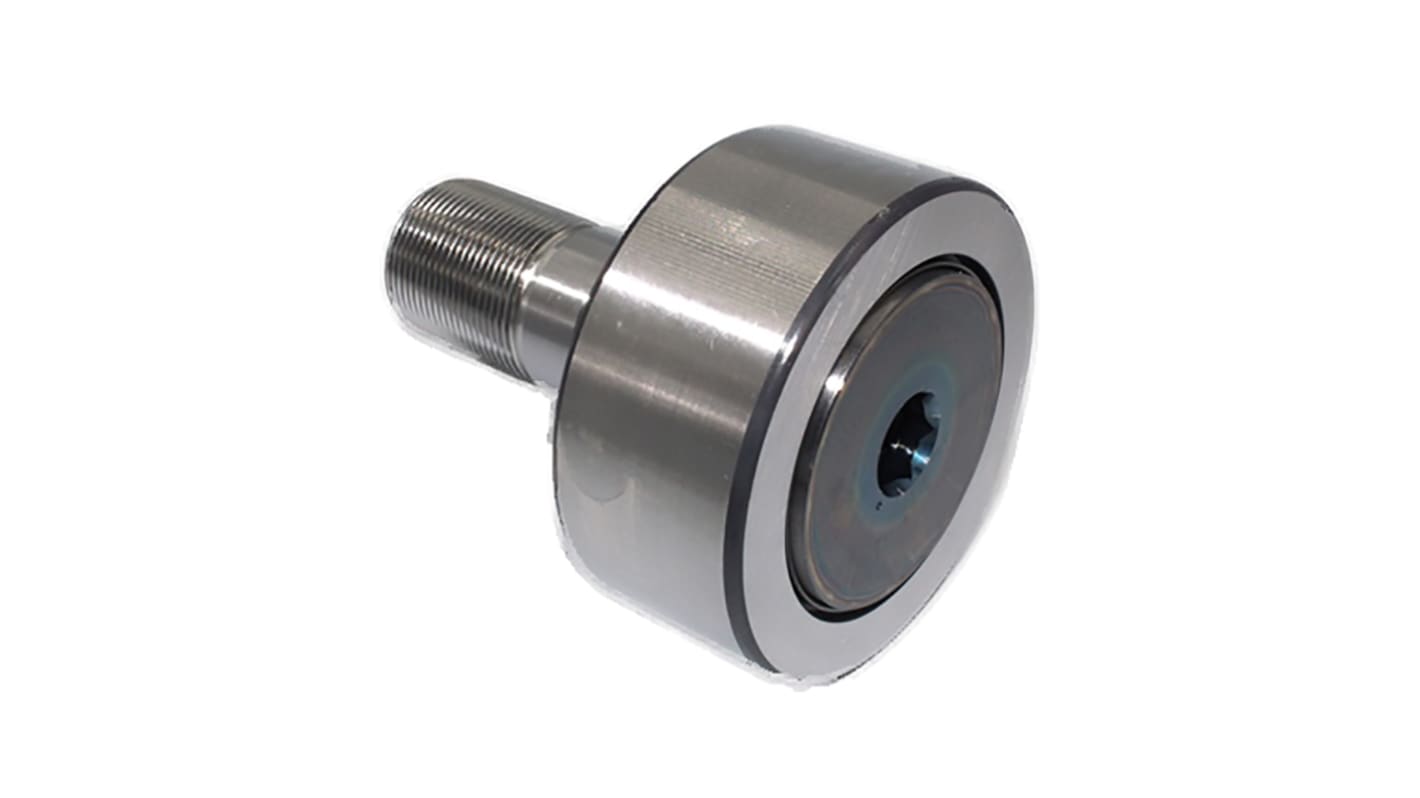

Stud Cam Follower KRV72-PP-A, 24mm ID, 72mm OD
- RS Stock No.:
- 194-7218
- Mfr. Part No.:
- KRV72-PP-A
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£168.42
(exc. VAT)
£202.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £168.42 |
5 - 9 | £161.68 |
10 + | £158.32 |
*price indicative
- RS Stock No.:
- 194-7218
- Mfr. Part No.:
- KRV72-PP-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Roller Diameter | 72mm | |
Roller Length | 80mm | |
Type | Stud | |
Bore Size | 24mm | |
Static Load Rating | 85000N | |
Dynamic Load Rating | 36500N | |
Ring Slide & Track System Bearing Type | Eccentric | |
Material | Steel | |
Select all | ||
---|---|---|
Brand INA | ||
Roller Diameter 72mm | ||
Roller Length 80mm | ||
Type Stud | ||
Bore Size 24mm | ||
Static Load Rating 85000N | ||
Dynamic Load Rating 36500N | ||
Ring Slide & Track System Bearing Type Eccentric | ||
Material Steel | ||
Yoke and stud type roller bearing track rollers:
Are ready-to-fit needle or cylindrical roller bearings of single or double row design
Are mounted on shafts or studs (yoke type track rollers) or supplied with a heavy-section roller stud with fixing thread and a mounting aid (stud type track rollers)
Have particularly thick-walled outer rings with a crowned outside surface section
Can support high radial loads
Tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts
Are available with or without an inner ring (yoke type track rollers)
Are produced with or without axial guidance of the outer ring (stud type track rollers are always produced with axial guidance)
Are open or sealed on both sides
Are not mounted in a housing bore, but are supported on a flat mating track
Can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction
Are ready-to-fit needle or cylindrical roller bearings of single or double row design
Are mounted on shafts or studs (yoke type track rollers) or supplied with a heavy-section roller stud with fixing thread and a mounting aid (stud type track rollers)
Have particularly thick-walled outer rings with a crowned outside surface section
Can support high radial loads
Tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts
Are available with or without an inner ring (yoke type track rollers)
Are produced with or without axial guidance of the outer ring (stud type track rollers are always produced with axial guidance)
Are open or sealed on both sides
Are not mounted in a housing bore, but are supported on a flat mating track
Can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction
