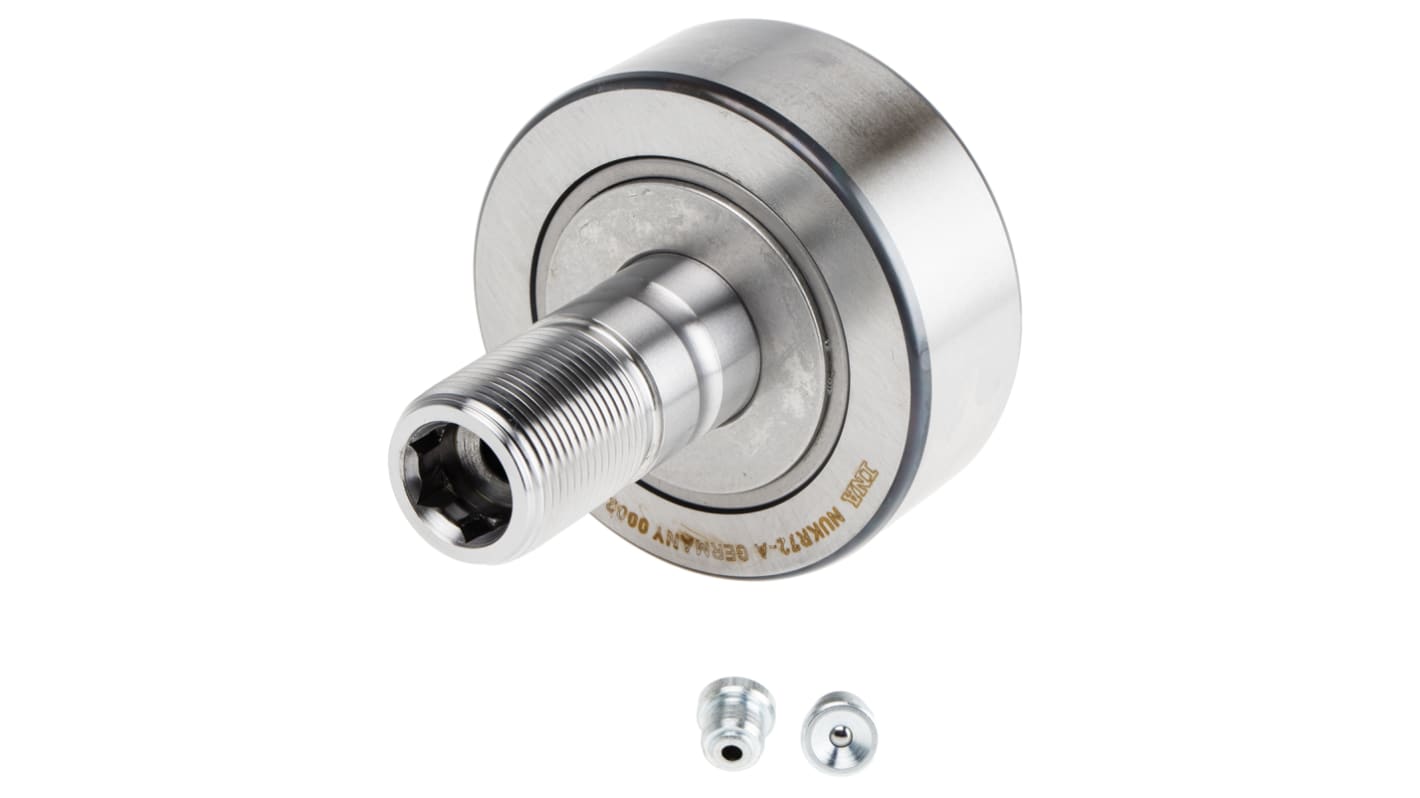

Stud Cam Follower NUKR72-A, 24mm ID, 72mm OD
- RS Stock No.:
- 174-1321
- Mfr. Part No.:
- NUKR72-A
- Brand:
- INA
Subtotal (1 unit)*
£187.78
(exc. VAT)
£225.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £187.78 |
*price indicative
- RS Stock No.:
- 174-1321
- Mfr. Part No.:
- NUKR72-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Roller Diameter | 72mm | |
Roller Length | 80mm | |
Type | Stud | |
Bore Size | 24mm | |
Static Load Rating | 65000N | |
Dynamic Load Rating | 45000N | |
Select all | ||
---|---|---|
Brand INA | ||
Roller Diameter 72mm | ||
Roller Length 80mm | ||
Type Stud | ||
Bore Size 24mm | ||
Static Load Rating 65000N | ||
Dynamic Load Rating 45000N | ||
Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets. Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running, they are suitable for applications such as cam gears, bed ways and conveying equipment. The bearings are available with and without an inner ring and in both sealed and open versions.
Outside surface profile of the outer ring
Yoke type track rollers without inner ring
With cage, axial guidance of outer ring
Sealing
Lubrication
Yoke type track rollers with inner ring
Axial guidance of outer ring
Anti-corrosion protection
Sealing
Lubrication
Operating temperature
Suffixes
Yoke type track rollers without inner ring
With cage, axial guidance of outer ring
Sealing
Lubrication
Yoke type track rollers with inner ring
Axial guidance of outer ring
Anti-corrosion protection
Sealing
Lubrication
Operating temperature
Suffixes
