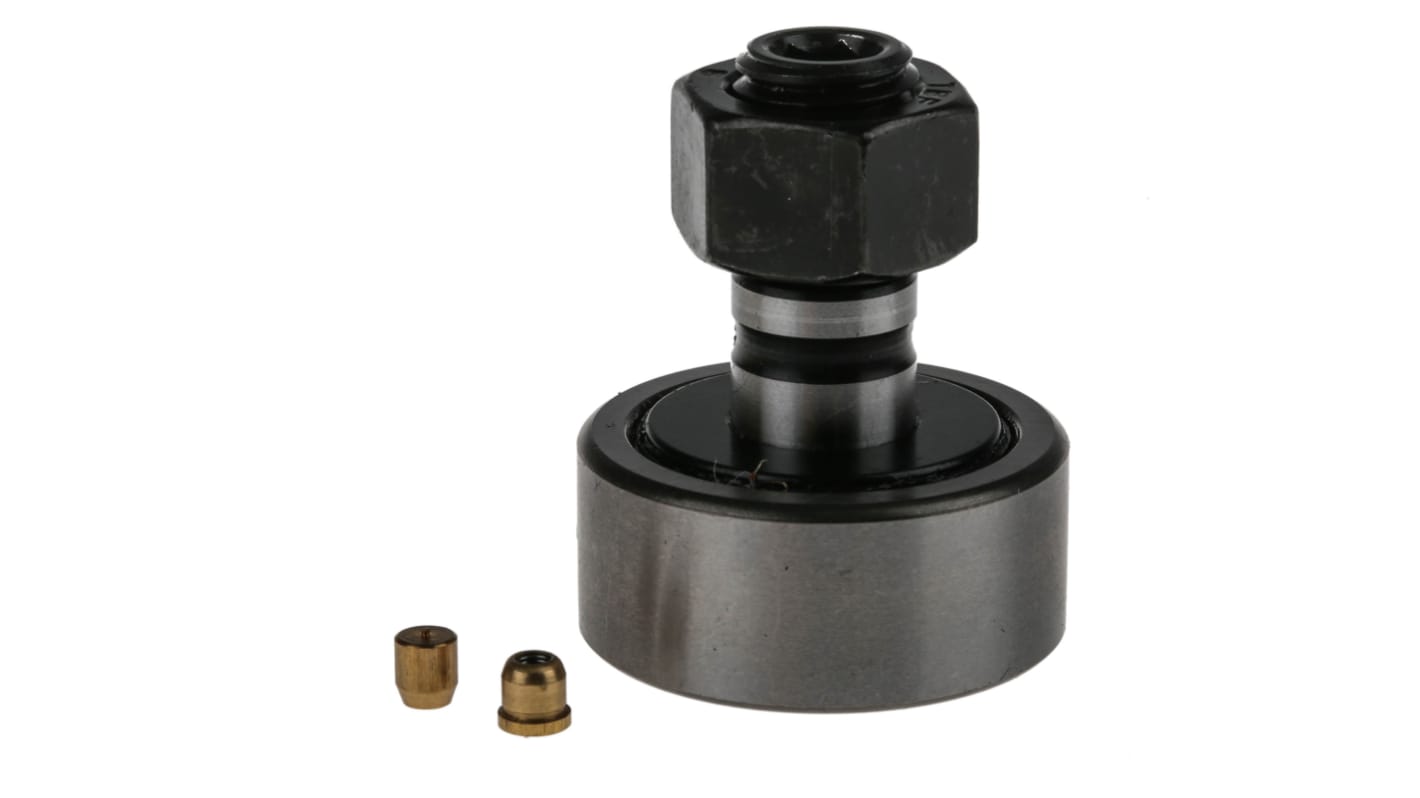

Stud Cam Follower 12mm ID, 32mm OD

Bulk discount available

Subtotal (1 unit)*

£28.87

(exc. VAT)

£34.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 33 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£28.87
5 - 9£28.30
10 - 24£27.72
25 +£27.15

*price indicative

RS Stock No.:
471-358
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Roller Diameter

32mm

Roller Length

40mm

Type

Stud

Bore Size

12mm

Static Load Rating

9700N

Dynamic Load Rating

8100N

Ring Slide & Track System Bearing Type

Eccentric

COO (Country of Origin):
CN

Stud Type Track Roller


Suitable for use as eccentric rollers, guide rollers, rocker valve rollers, cam rollers in slideways or pressure rollers
2 O-ring seals, single coated
Operating temperature: -30°C to +100°C

RS PRO Stud type Track Roller


When it comes to facilitating system operations and getting significant speed and efficiency, there is a component that plays a critical role. It is called a Track Roller or referred to as Idler Roller. These Track Rollers have their place in conveyor systems, cam drives and other similar handling parts. The main types of Track Rollers are Ball Bearing Track Rollers (self-retaining), Yoke-type Track Rollers (mounted on shafts or studs) and Cam Rollers (similar, but the raceway has more substantial Roller stud, fixing thread and lubrication hole). They intend to absorb high radial loads and axial loads arising from misalignment. Pretty impressive operating temperature various from -30°C to +100°C makes them stabilise parts for many machinery applications. Track Rollers are suitable also for use as eccentric rollers, guide rollers, rocker valve rollers, cam rollers in slideways or pressure rollers O-ring seals and single coated. The shape of the outer ring Stud Track Roller reduces the load on edges. The Stud type airframe Track is exploring to a high temperature that brings high tolerance load-carrying capacity and enormous flexibility. The Ring Slide and Track Roller Bearing type are eccentric, which in the mechanical engineering profession means it is out of the centre. We are proudly introducing our own branded RS PRO Stud Type Track Roller with a static load rating (Cor) of 9700 N and dynamic load rating (Cr) of 8100 N.

Features and Benefits


  • The Track has a high operating temperature (-30°C to up to +100°C)

  • 2 O-ring seals, single coated

  • Versatile use in many applications

  • Adaptable to high radial loads

  • Long service life

Application


The Track Rollers have a wide range of use in many industries and applications, such as:
  • Automotive assembly

  • Food and beverage production

  • Medical

  • Mining

  • Pharmaceutical

  • Warehouses for conveyor system
