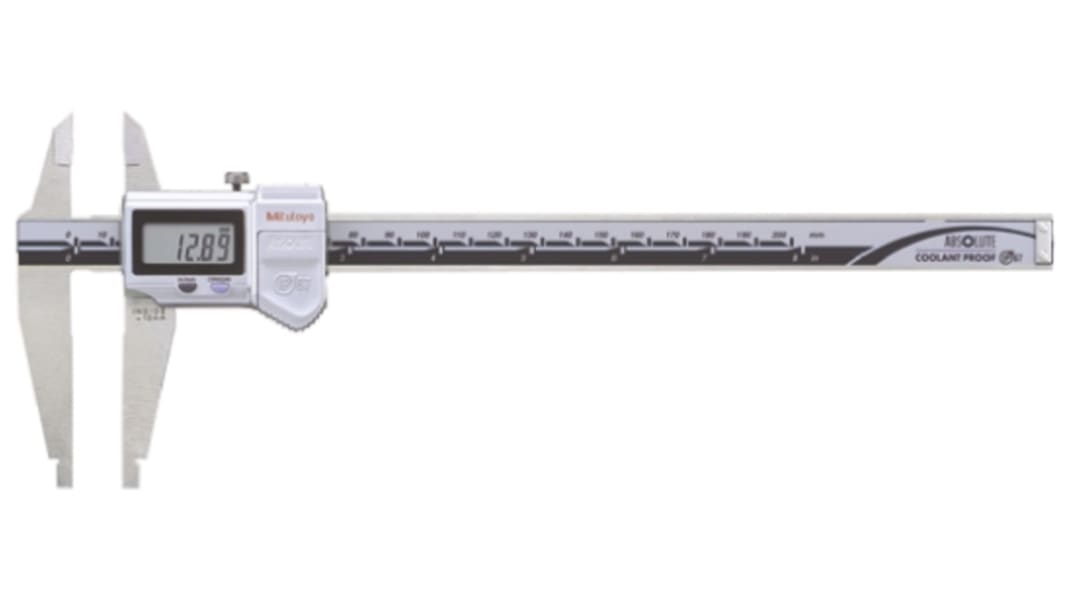

Mitutoyo 300mm Digital Caliper 0.01 mm Resolution, Metric

RS Stock No.:: 794-3623
Mfr. Part No.:: 551-331-20
Brand:: Mitutoyo

Mitutoyo 300mm Digital Caliper 0.01 mm Resolution, Metric

Subtotal (1 unit)**

£557.00

(exc. VAT)

£668.40

(inc. VAT)

7 In stock - FREE next working day delivery available*

3 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£557.00

**price indicative

Calibration Options:

Mitutoyo 300mm Digital Caliper 0.01 mm Resolution, Metric With UKAS Calibration

Calibration Type:: UKAS

RS Stock No.: 794-5537

Each

£595.00

(exc. VAT)

£714.00

(inc. VAT)

RS Stock No.:: 794-3623
Mfr. Part No.:: 551-331-20
Brand:: Mitutoyo

Series 551 ABSOLUTE Digimatic Caliper with Nib Style and Standard Jaws Data Sheet

Mitutoyo-Absolute

Electronic calipers with an LCD display which will display in either ’metric/imperial (switchable)’ or ’metric only’ reading depending on model.

General Features:

Fully hardened stainless steel beam & jaws with an anti-glare, satin chrome finish

All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Storage Temp: -10°C to +60°C
Operating Temp: 0°C to +40°C

Electronic Features:

ON/OFF - Switches unit on, display indicates distance of jaws from pre-set origin point
ABS - Absolute feature re-sets the ’reference’ point of measurement of the instrument jaws
in./mm - Selects imperial or metric display
Origin - Pre-sets the zero point of the instrument. This point is memorised even if the unit is switched off

Note

Imperial/metric versions have thumbwheel where metric does not.
SPC output versions - A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section

Supplied with

SR44 Battery

Mitutoyo Precision Caliper

The Mitutoyo 0 to 300mm range precision calliper is an accurate measuring device. It can withstand temporary immersion in water without suffering any damage. Also, it is completely dustproof. It has a function that starts the absolute-mode measurement without any zero-setting after it is switched on. The original position of the calliper can be set or reset with the ’origin' switch at any time. It comes with many advanced functions like low battery alarm indication, external output function for exporting data using optional data cable, and a standard jaw. Such features make this device ideal for various applications. The Mitutoyo precision calliper can also be integrated into statistical process control and measurement systems.
Note:
Imperial/metric versions have thumbwheel where metric does not.
SPC output versions -A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
Supplied with SR44 Battery

Features and Benefits

Resolution of 0.01mm
Accuracy of ±0.04mm
High response speed
Fully hardened stainless steel beam and jaws with an anti-glare
Satin chrome finish
All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Low voltage alarm
Auto power OFF after 20 minutes non use

Applications

Mechanical engineering
Aerospace industries
Steel and other metalwork industry
