Thomas & Betts Cable Ties, 184.15mm x 4.83 mm, Natural Nylon, Pk-50
- RS Stock No.:
- 812-5716
- Mfr. Part No.:
- 7TAG009510R0060 TY546MF
- Brand:
- Thomas & Betts
Available to back order for despatch 25/10/2024
Price 1 Bag of 50
£123.20
(exc. VAT)
£147.84
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 14 | £123.20 | £2.464 |
15 - 49 | £117.04 | £2.341 |
50 + | £101.02 | £2.02 |
*price indicative
- RS Stock No.:
- 812-5716
- Mfr. Part No.:
- 7TAG009510R0060 TY546MF
- Brand:
- Thomas & Betts
Technical Reference
Legislation and Compliance
Product Details

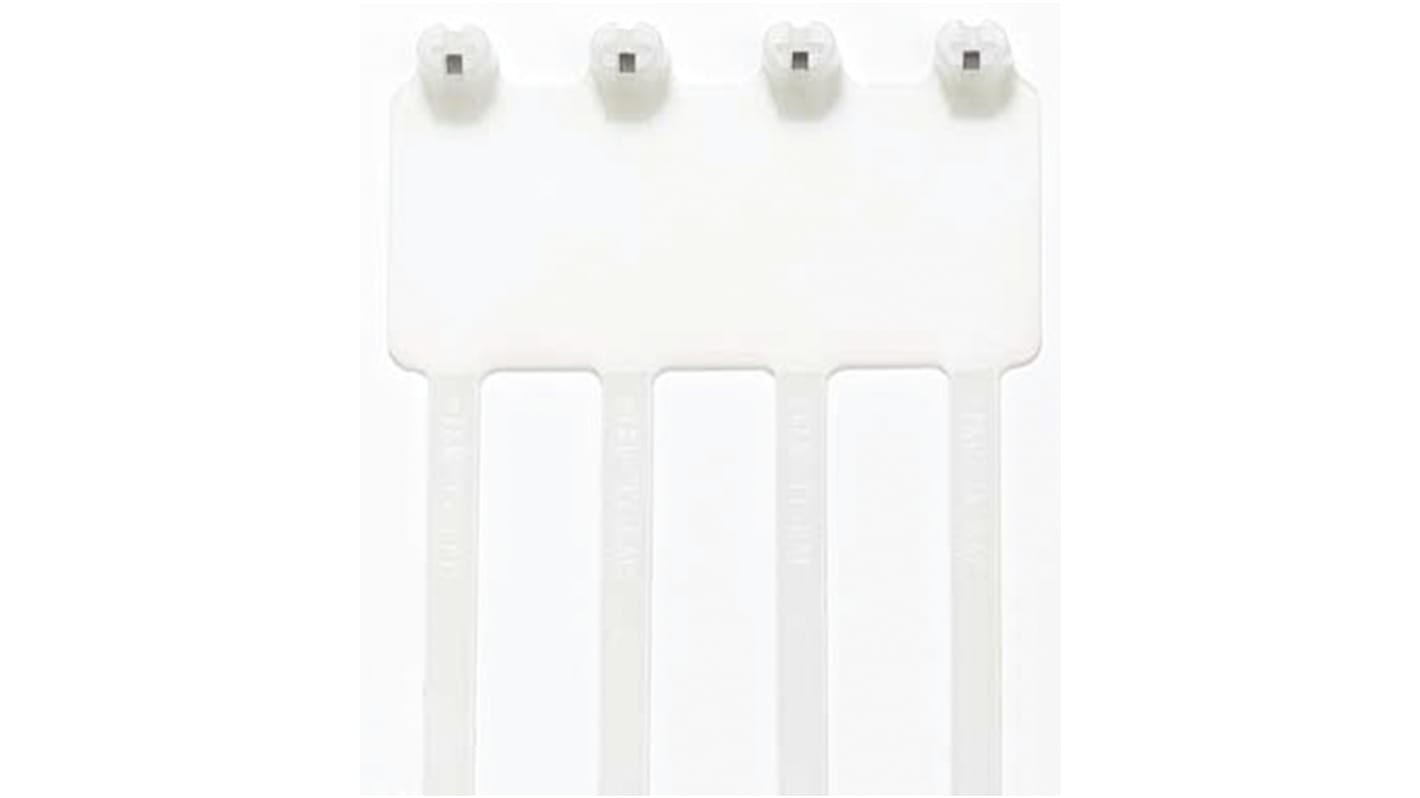

Ty-Rap® Special Cable Ties with Identification Tag and Locking Barb
These Ty-Rap® special cable ties have an identification tag and locking stainless steel barb. Four versions (those up to 3 straps) are Mil-specified: MS-3368-2, TY48M 812-5687 1000-off, TY548M 812-5696 100-off; MS-3368-1, TY46M 812-5699 1000-off, TY546M 812-5693 100-off; MS-3368-3, TY46MD 812-5703 500-off, TY546MD 812-5706 50-off; MS-3368-4, TY46MT 812-5700 500-off, TY546MT 812-5719 100-off. The largest (4 strap) versions are TY46MF 812-5712 250-off and TY546MF 812-5716 50-off.
Identification ties with incorporated label for durable marking and tying
Label forms on to the bundle
Easy installation - all edges rounded and surfaces smoothed
Moulding Polyamide 6.6
Colour natural
Locking barb in 316 grade stainless steel
Temperature range -40°C to +85°C
Flammability rating UL 94 V-2
Halogen-free
Silicone-free
Label forms on to the bundle
Easy installation - all edges rounded and surfaces smoothed
Moulding Polyamide 6.6
Colour natural
Locking barb in 316 grade stainless steel
Temperature range -40°C to +85°C
Flammability rating UL 94 V-2
Halogen-free
Silicone-free
Standards
Specifications
Attribute | Value |
---|---|
Length | 184.15mm |
Width | 4.83 mm |
Colour | Natural |
Material | Nylon 66 |
Type | Non-Releasable |
Quantity | 50 |
UV Resistant | Yes |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Fire Behaviour | Halogen Free |
Tensile Strength | 222.4N |
Series | Ty-Rap |
Maximum Bundle Diameter | 44.45mm |
