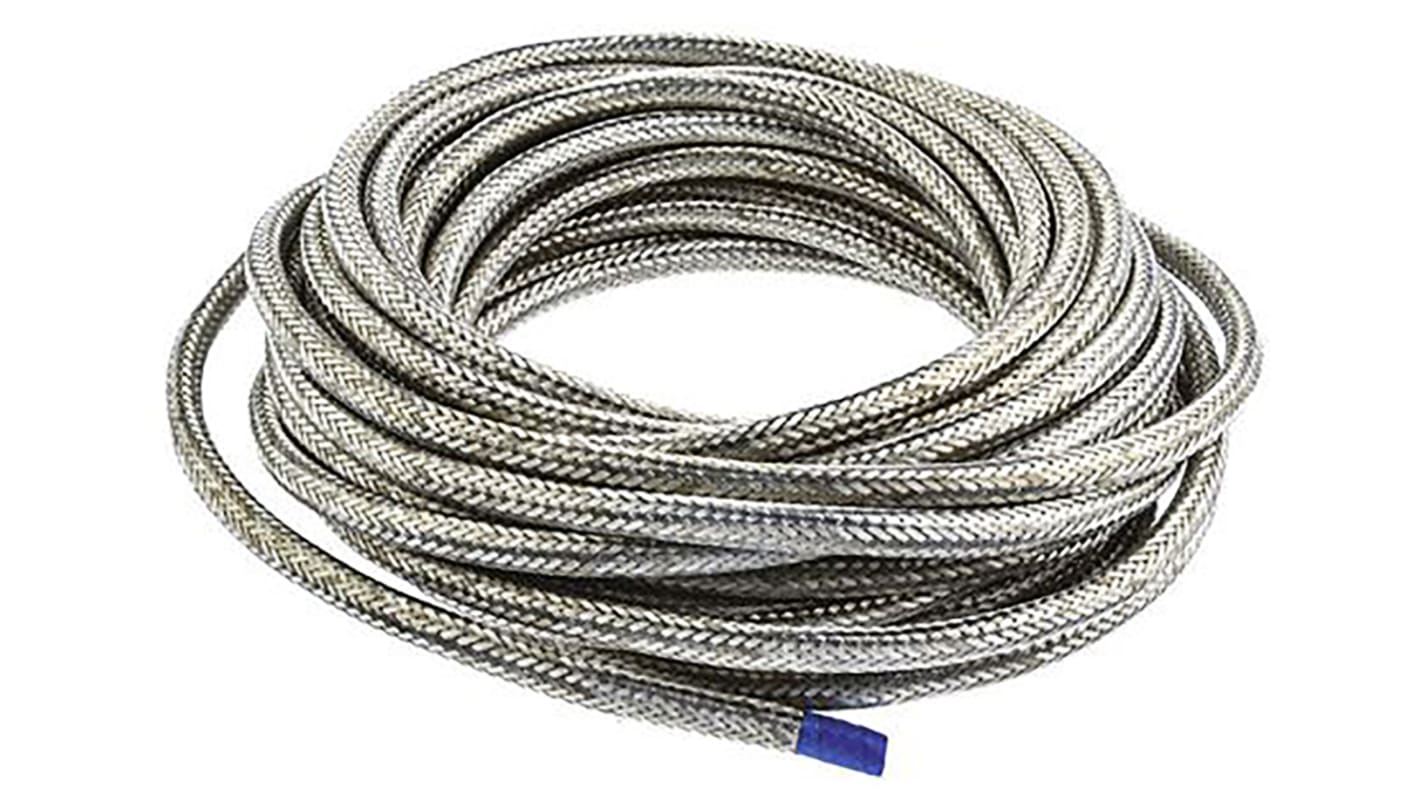

TE Connectivity Expandable Braided Nickel Plated Copper Alloy Cable Sleeve, 3mm Diameter, 10m Length, RayBraid Series
- RS Stock No.:
- 887-2844
- Mfr. Part No.:
- RAY-103-3.0(10)
- Brand:
- TE Connectivity
300 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.126
(exc. VAT)
£12.151
(inc. VAT)
Units | Per unit | Per Reel* |
10 - 140 | £10.126 | £101.26 |
150 - 490 | £9.619 | £96.19 |
500 + | £9.318 | £93.18 |
*price indicative |
- RS Stock No.:
- 887-2844
- Mfr. Part No.:
- RAY-103-3.0(10)
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Raybraid Plated Copper Braid
Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.
Features and benefits
• Provides EMC screen for wires and cables
• Easy removal from PVC former
• Min. 93%, max. 100% optical coverage
• Highly usable expansion ratio (min 2:1)
• Tin-plated copper or Nickel-plated copper sleeving available
• Available in a wide range of sizes to cover 2.5 to 40mm diameters
Specifications
Attribute | Value |
---|---|
Sleeve Diameter | 3mm |
Material | Nickel Plated Copper Alloy |
Sleeve Length | 10m |
Braided | Yes |
Expandable | Yes |
Minimum Cable Diameter | 2.5mm |
Maximum Cable Diameter | 5mm |
Shielded | Yes |
Standards Met | WSD 1922 (Performance Standard) |
Series | RayBraid |
- RS Stock No.:
- 887-2844
- Mfr. Part No.:
- RAY-103-3.0(10)
- Brand:
- TE Connectivity
