HellermannTyton Polyurethane Cable Joint, Straight Joint Type , 3 x 1.5 → 5 x 6mm²
- RS Stock No.:
- 102-859
- Mfr. Part No.:
- 435-12209
- Brand:
- HellermannTyton
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 102-859
- Mfr. Part No.:
- 435-12209
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HellermannTyton | |
Product Type | Cable Joint | |
Joint Type | Straight | |
Cable Size | 3 x 1.5 → 5 x 6mm² | |
Number of Cores | 5 | |
Dimensions | 190 x 36mm | |
Material | Polyurethane | |
Select all | ||
---|---|---|
Brand HellermannTyton | ||
Product Type Cable Joint | ||
Joint Type Straight | ||
Cable Size 3 x 1.5 → 5 x 6mm² | ||
Number of Cores 5 | ||
Dimensions 190 x 36mm | ||
Material Polyurethane | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL

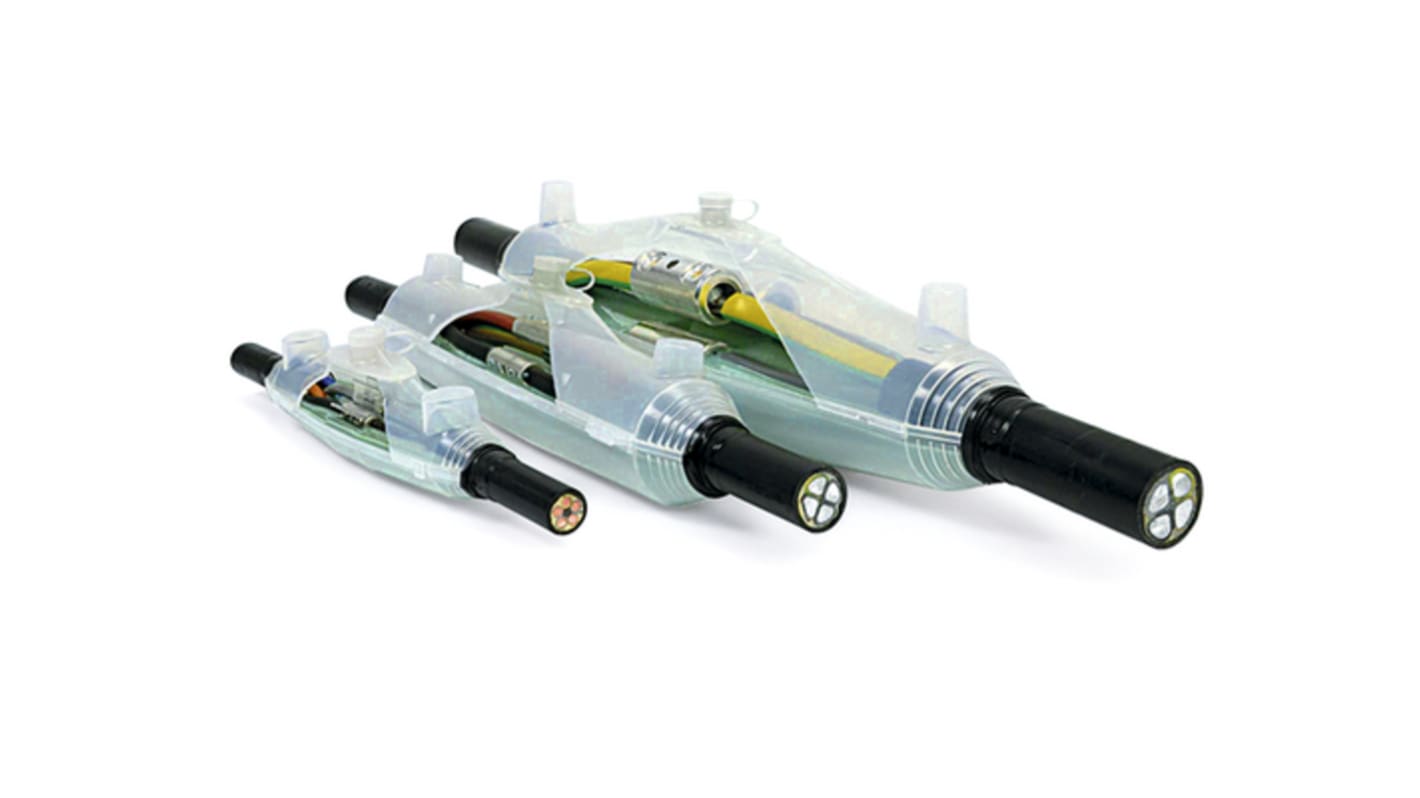

The HellermannTyton Polyurethane Resin cable joints (PUR) in the vibrant Green (GN) color offers a versatile and durable solution for a wide range of applications. Known for its exceptional properties, PUR is a resilient material that combines flexibility, strength, and chemical resistance, making it suitable for various industries and environments. RELICON cast resin Premium cable joints for armoured cables are suitable for polymeric cables with earth bonding/continuity of AWA and SWA. The transparent two-chamber resin bag makes the mixing process visible and therefore more reliable. Integrated connector block with 6 connectors that guarantee optimum and stable distances with smaller cable cross-sections.
Variant Cast resin
ELV compliant
Halogen free
RoHS compliant
ELV compliant
Halogen free
RoHS compliant
