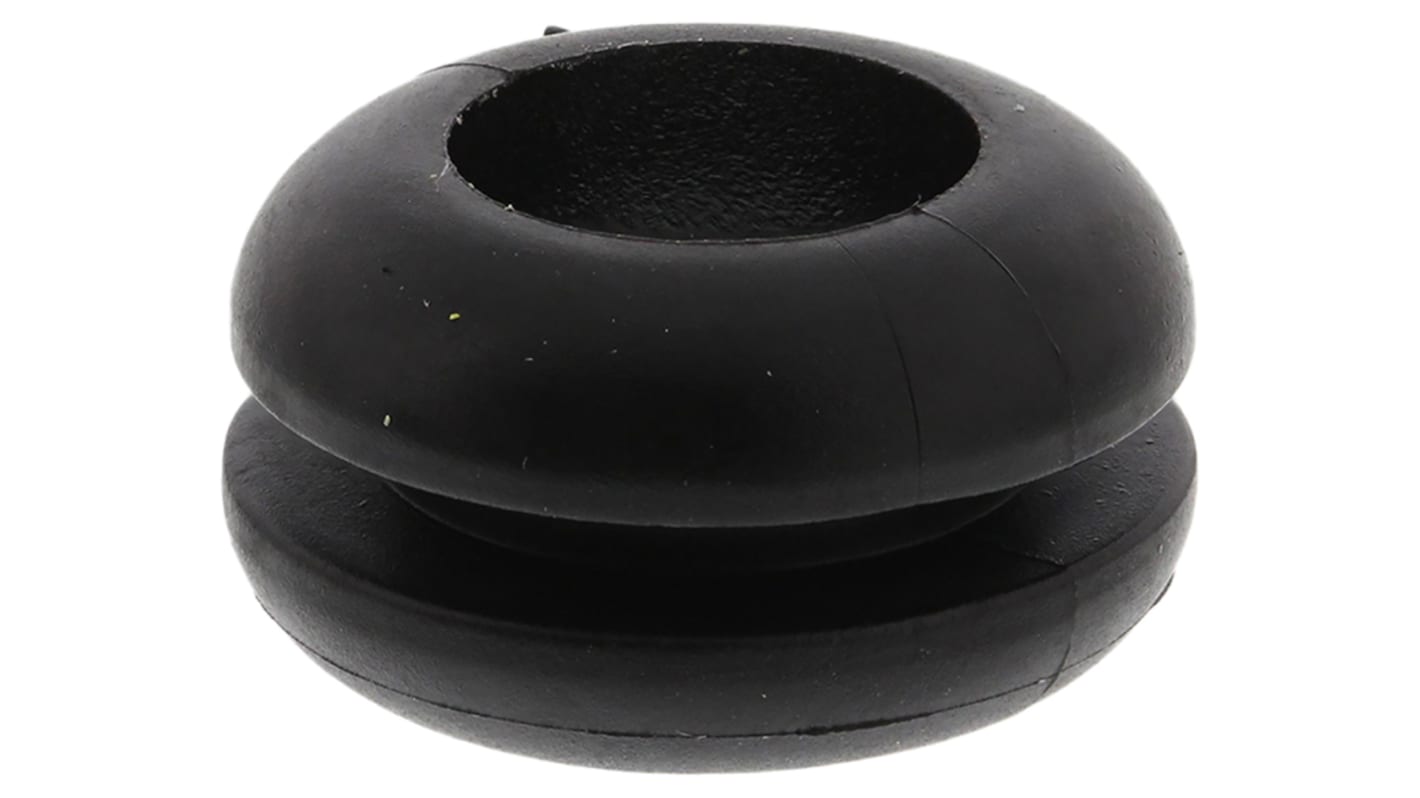

HellermannTyton HV Black PVC 9.5mm Cable Grommet for Maximum of 8mm Cable Dia. 633-02080 HV1208-PVC-FR-BK
- RS Stock No.:
- 187-9510
- Mfr. Part No.:
- 633-02080 HV1208-PVC-FR-BK
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 bag of 100 units)*
£8.93
(exc. VAT)
£10.72
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 77 left, shipping from 06 October 2025
- Plus 19 left, shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £8.93 | £0.089 |
5 - 9 | £8.50 | £0.085 |
10 + | £8.04 | £0.08 |
*price indicative
- RS Stock No.:
- 187-9510
- Mfr. Part No.:
- 633-02080 HV1208-PVC-FR-BK
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HellermannTyton | |
Grommet Type | Cable Grommet | |
Maximum Cable Diameter | 8mm | |
Panel Hole Diameter | 9.5mm | |
Material | PVC | |
Colour | Black | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +60°C | |
Series | HV | |
Maximum Panel Thickness | 1.5mm | |
Select all | ||
---|---|---|
Brand HellermannTyton | ||
Grommet Type Cable Grommet | ||
Maximum Cable Diameter 8mm | ||
Panel Hole Diameter 9.5mm | ||
Material PVC | ||
Colour Black | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +60°C | ||
Series HV | ||
Maximum Panel Thickness 1.5mm | ||
- COO (Country of Origin):
- DE

HellermannTyton Series HV Cable Grommet, 9.5mm Panel Hole Diameter, 8mm Maximum Cable Diameter - 633-02080 HV1208-PVC-FR-BK
This cable grommet is designed for efficient cable management, providing a secure entry point for electrical cables. The grommet is made from durable PVC material, ensuring protection against both high and low temperatures. With a panel hole diameter of 9.5mm and a maximum cable diameter of 8mm, it is versatile for various applications.
Features & Benefits
• Constructed from PVC for long-lasting durability
• Operates efficiently in temperatures from -30°C to +60°C
• Suitable for panel thicknesses up to 1.5mm
• Water-resistant properties enhance protection for cables
• Simplifies the process of routing electrical wiring through panels
• Operates efficiently in temperatures from -30°C to +60°C
• Suitable for panel thicknesses up to 1.5mm
• Water-resistant properties enhance protection for cables
• Simplifies the process of routing electrical wiring through panels
Applications
• Used for protecting electrical cables in machinery
• Effective in automation systems requiring cable management
• Suitable for installations where temperature variation occurs
• Employed in electronics to safeguard wiring from damage
• Utilised in mechanical environments for neat cable routing
• Effective in automation systems requiring cable management
• Suitable for installations where temperature variation occurs
• Employed in electronics to safeguard wiring from damage
• Utilised in mechanical environments for neat cable routing
What are the temperature limits for effective use?
It can withstand temperatures ranging from -30°C to +60°C, making it suitable for diverse environments.
How does the grommet protect cables?
The PVC construction and precise fit ensure cables are secured and safeguarded against wear and environmental factors.
What types of panels can it be used with?
It is compatible with panels having a thickness of up to 1.5mm, ensuring a tight fit and reliable functionality.
Can it accommodate multiple cables?
Designed primarily for a maximum cable diameter of 8mm, it effectively manages single cables but may accommodate multiple smaller cables depending on their total diameter.
Is it compliant with industry standards?
This product conforms to the EU RoHS Directive, ensuring it is free from restricted hazardous substances.
