Icotek KTS Grey Elastomer Cable Grommet for 16 mm Cable Dia. for 1 mm Cable Dia. KTS 16

View all Cable Grommets

Subtotal (1 unit)*

£1.35

(exc. VAT)

£1.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 34 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1.35

*price indicative

RS Stock No.:
361-821
Distrelec Article No.:
155-19-503
Mfr. Part No.:
KTS 16
Brand:
Icotek
Find similar products by selecting one or more attributes.
Select all

Brand

Icotek

Grommet Type

Cable Grommet

Product Type

Cable Grommet

Material

Elastomer

Colour

Grey

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Minimum Cable Diameter

1mm

Maximum Cable Diameter

16mm

Series

KTS

Standards/Approvals

IP54 / UL Type 12 / EN 60529 / UL 50E / UL94-V-0 / EN 62444

COO (Country of Origin):
DE

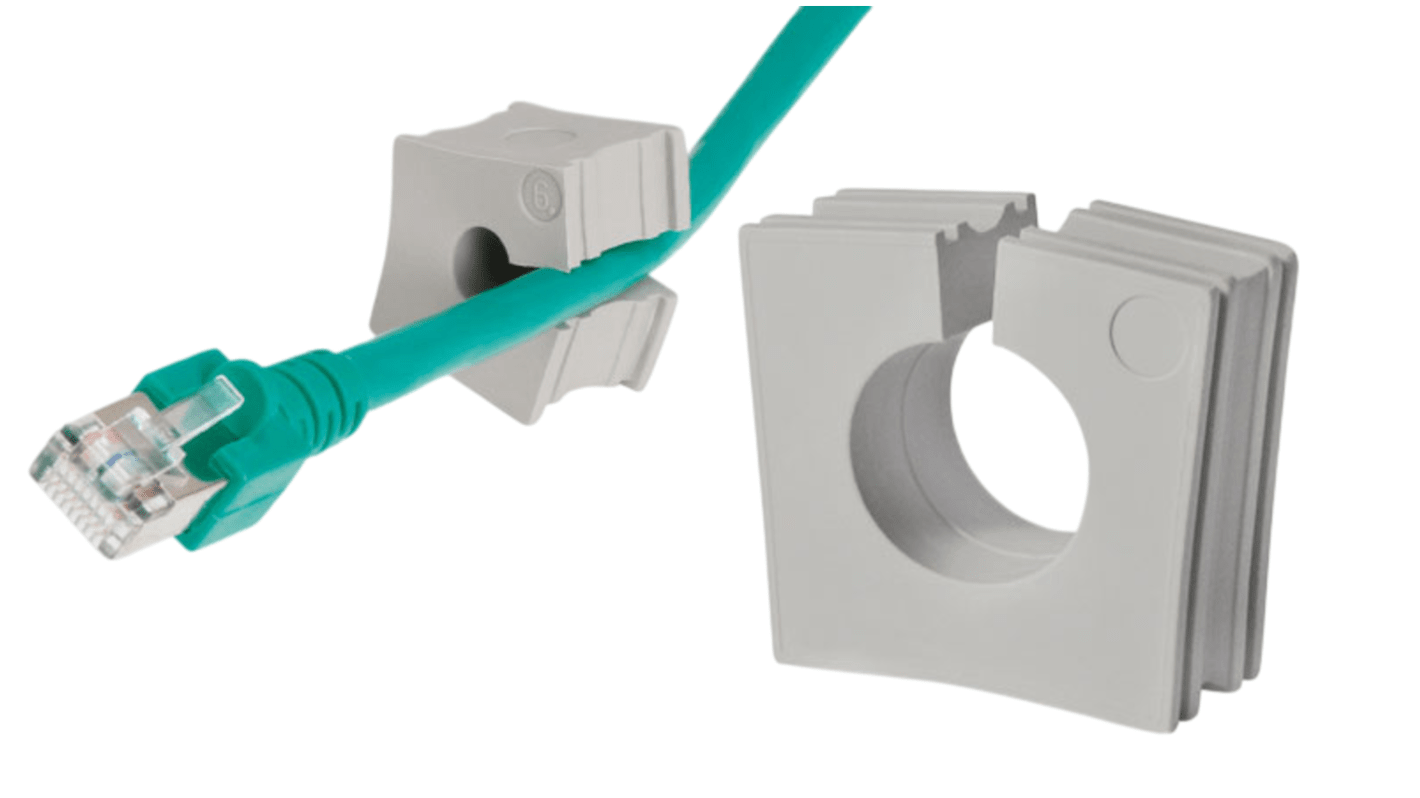

The Icotek Cable grommets KT small are used with the KEL cable entry frames and KVT split cable glands. KT multi-hole and special grommets enable a sealing of the cables with IP54 and UL Type 12. When using double or quadruple grommets the cable density of cable entry frames and cable glands can be greatly increased. The multi-hole model range KT small is designed for cable diameters from 1 to 8 mm. icotek also offers special cable grommets for e.g. ASI lines. ATG adapter grommets provide the possibility to hold a small KT grommet to reduce the clamping range down to 1 mm.

Enable routing of pre-terminated cables through cable entry frames and split cable glands

High strain relief in accordance with EN 62444 when a suitable cable entry is selected

Available for a large range of cable diameters

Greatly increased cable density when using double or quadruple grommets
