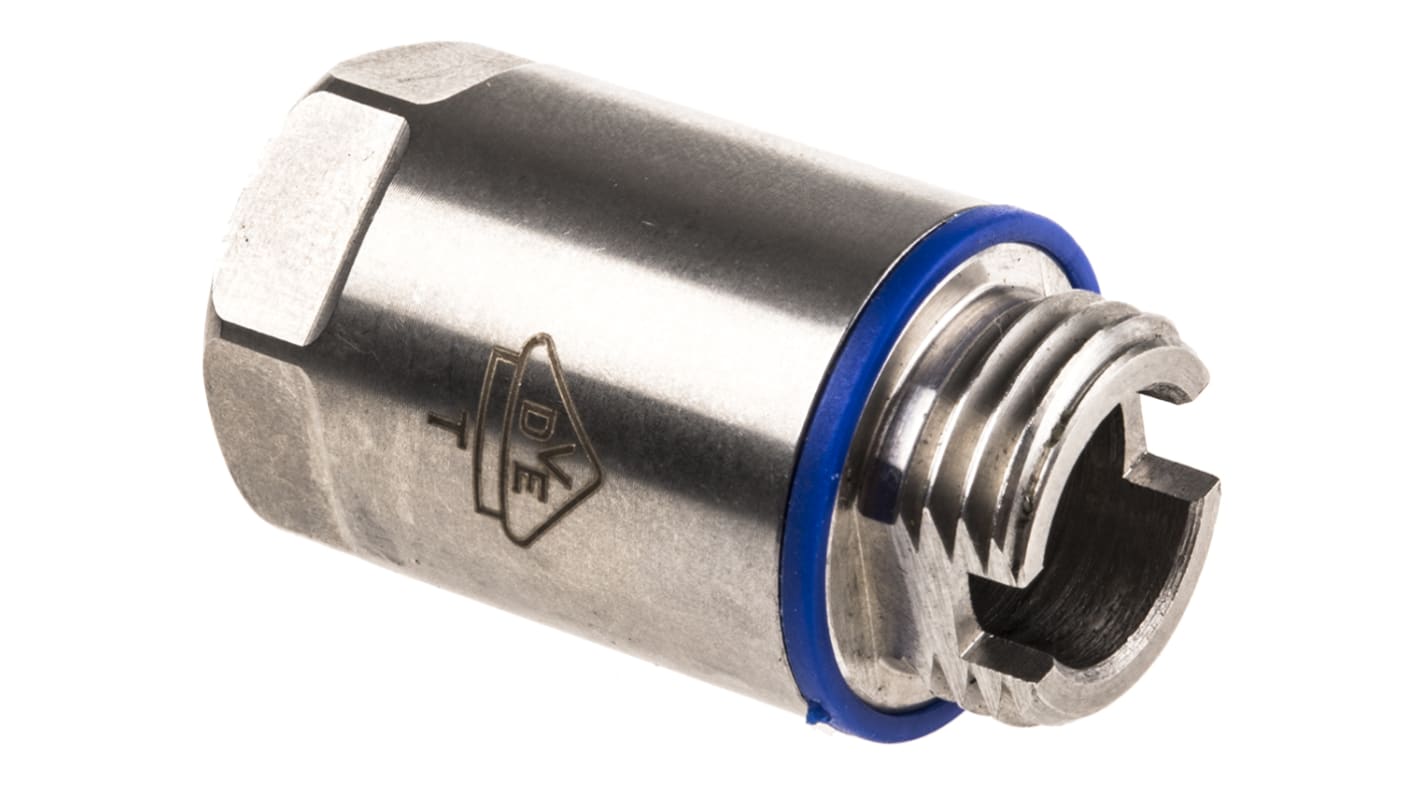

Rittal HD Series Metallic Cable Gland, M16 Thread, 4.5mm Min, 10mm Max, IP68
- RS Stock No.:
- 668-4938
- Mfr. Part No.:
- 2410010
- Brand:
- Rittal
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 668-4938
- Mfr. Part No.:
- 2410010
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Thread Size | M16 | |
| Maximum Cable Diameter | 10mm | |
| Minimum Cable Diameter | 4.5mm | |
| Colour | Metallic | |
| Series | HD | |
| IP Rating | IP68 | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Rittal | ||
Thread Size M16 | ||
Maximum Cable Diameter 10mm | ||
Minimum Cable Diameter 4.5mm | ||
Colour Metallic | ||
Series HD | ||
IP Rating IP68 | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Rittal HD Hygienic Cable Glands
Designed for use in Food & Drink production and packaging areas, clean rooms ( i.e. Pharmaceuticals) Bio-tech and Chemical industries, or anywhere that a reduction of locations where harmful build ups of micro organisms is an important consideration.
Features and Benefits
Easy Clean Smooth Exterior finish
No exposed exterior threads
Secure cable strain relief
Resistant to high pressure cleaning processes
IP68 (5bar,30 mins) as per EN 60 529/10.91
IP69K as per DIN 40 050-9/05.93
Approvals
FDA approved outer seal material
