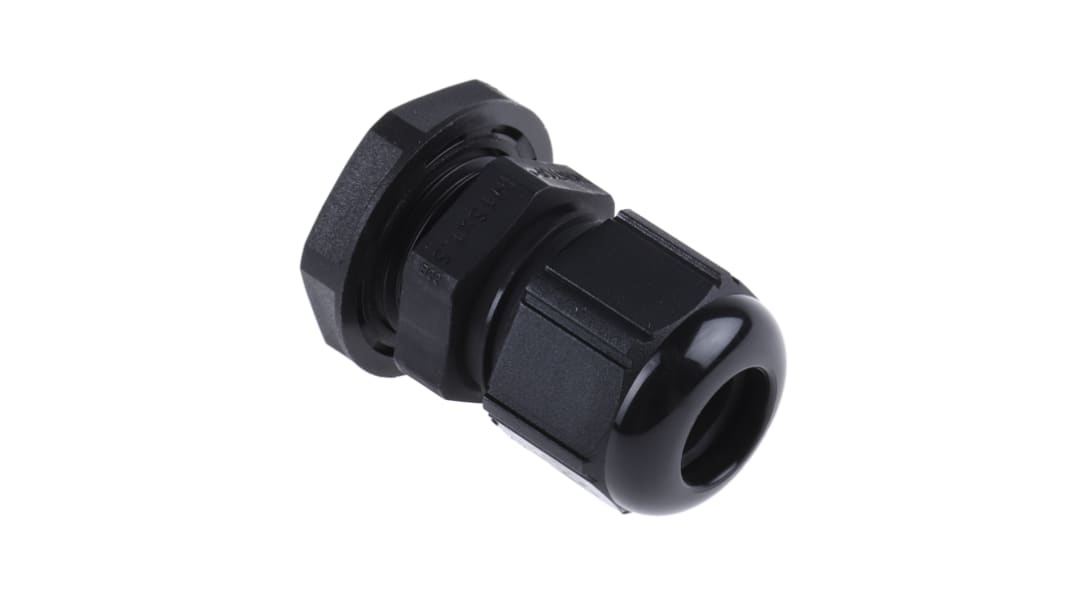

Lapp SKINTOP Series Black Polyamide Cable Gland, M16 Thread, 4mm min., 10mm max., IP66, IP68, IP69
- RS Stock No.:
- 365-8450
- Distrelec Article No.:
- 304-22-909
- Mfr. Part No.:
- 53111210+53119110
- Brand:
- Lapp
Save 10% when you buy 10 units
Subtotal (1 bag of 5 units)*
£6.71
(exc. VAT)
£8.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 618 unit(s) ready to ship
- Plus 36 unit(s) ready to ship from another location
- Plus 360 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £6.71 | £1.342 |
5 - 9 | £6.38 | £1.276 |
10 + | £6.00 | £1.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£1.028
(exc. VAT)
£1.234
(inc. VAT)
- RS Stock No.:
- 365-8450
- Distrelec Article No.:
- 304-22-909
- Mfr. Part No.:
- 53111210+53119110
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Thread Size | M16 | |
Maximum Cable Diameter | 10mm | |
Minimum Cable Diameter | 4mm | |
Material | Polyamide | |
Colour | Black | |
Series | SKINTOP | |
IP Rating | IP66, IP68, IP69 | |
Locknut Included | Yes | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -20°C | |
Number of Pieces | 100 | |
Standards Met | CE, cRUus Certified | |
Operating Temperature Range | -20 → +100 °C | |
Reference | SKINTOP | |
Select all | ||
---|---|---|
Brand Lapp | ||
Thread Size M16 | ||
Maximum Cable Diameter 10mm | ||
Minimum Cable Diameter 4mm | ||
Material Polyamide | ||
Colour Black | ||
Series SKINTOP | ||
IP Rating IP66, IP68, IP69 | ||
Locknut Included Yes | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -20°C | ||
Number of Pieces 100 | ||
Standards Met CE, cRUus Certified | ||
Operating Temperature Range -20 → +100 °C | ||
Reference SKINTOP | ||
LAPP Polyamide Cable Gland With Locknut, M16, 10mm Maximum Cable Diameter - SKINTOP Series - 53111210+53119110
Looking for a compact cable management option for your electrical panels and enclosures? Try this weatherproof cable gland from LAPP. It supports the cable and secures its link to electrical equipment, preventing it from being pulled out. This means you enjoy a stable and reliable connection. Its polyamide body is durable and impact-resistant, making it suitable for use in rugged settings. The unit also comes with a locknut that attaches it onto the enclosure, making it vibration proof and fit for use on heavy-duty industrial machinery.
Features & Benefits
• Wide operating temperature range of -20°C to +100°C for use in demanding industrial applications
• Strain relief prevents cables twisting or bending, prolonging service life
• Cable diameter range of 4 to 10mm for versatile use
• Ultraviolet (UV) stable to withstand direct exposure to sunlight
• Strain relief prevents cables twisting or bending, prolonging service life
• Cable diameter range of 4 to 10mm for versatile use
• Ultraviolet (UV) stable to withstand direct exposure to sunlight
Applications
• Water and sewage treatment facilities
• Solar cell panels
• Machine manufacturing
• Solar cell panels
• Machine manufacturing
Can I use this cable gland in wet environments?
The cable gland has an IP69 (ingress protection) rating, which indicates effective shielding from dust and hot, high-pressure water jets. This makes it suitable for use in wet environments.
