RS PRO Grey EPDM Cable Gland, M50 Thread, 27mm min., 35mm max., IP67
- RS Stock No.:
- 279-7087
- Brand:
- RS PRO
Save 13% when you buy 400 units
Subtotal (1 bag of 10 units)*
£53.50
(exc. VAT)
£64.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 210 unit(s) ready to ship
- Plus 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
10 - 90 | £5.35 | £53.50 |
100 - 190 | £5.136 | £51.36 |
200 - 290 | £4.981 | £49.81 |
300 - 390 | £4.702 | £47.02 |
400 + | £4.601 | £46.01 |
*price indicative
- RS Stock No.:
- 279-7087
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thread Size | M50 | |
Maximum Cable Diameter | 35mm | |
Minimum Cable Diameter | 27mm | |
Material | EPDM | |
Colour | Grey | |
IP Rating | IP67 | |
Maximum Operating Temperature | +110°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thread Size M50 | ||
Maximum Cable Diameter 35mm | ||
Minimum Cable Diameter 27mm | ||
Material EPDM | ||
Colour Grey | ||
IP Rating IP67 | ||
Maximum Operating Temperature +110°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FI

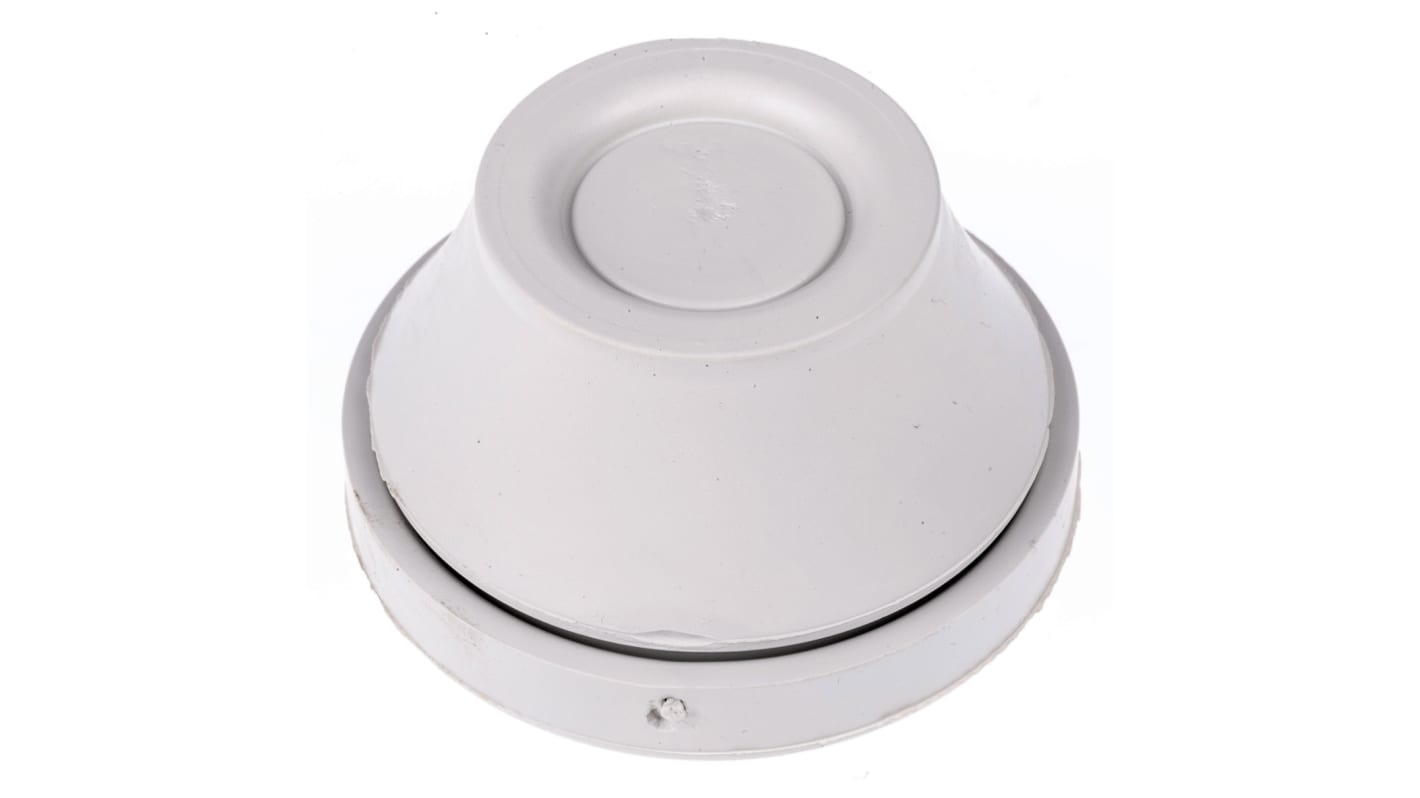

RS Pro IP67 EPDM Cable Glands/Grommets
The grey RS Pro halogen free rubber membrane cable grommets are an excellent choice where space is limited.
Features and Benefits
Provides protection up to IP67
Quick and low-cost method of feeding cables through panels
Tapered top provides a degree of retention and sealing
Thread size of M16 to M50
Operating temperature of -40°C to +110°C
Cable diameter range of 5 to 35 mm
Note
This product is not suitable as a direct replacement for traditional cable glands when positive and secure retention are needed.
