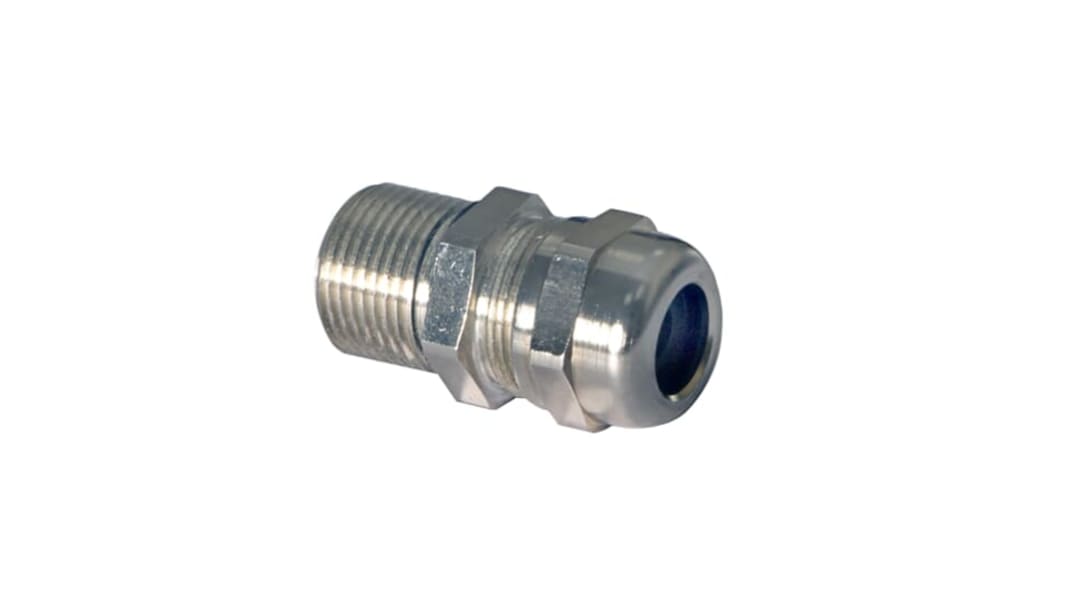

ABB Glands Series Metallic Nickel Plated Brass Cable Gland, M32 Thread, 10 mm min., 18 mm max., IP66, IP68, IP69
- RS Stock No.:
- 266-4550
- Mfr. Part No.:
- 7TCA303080R0034
- Brand:
- ABB
Subtotal (1 pack of 5 units)*
£203.67
(exc. VAT)
£244.405
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £40.734 | £203.67 |
*price indicative
- RS Stock No.:
- 266-4550
- Mfr. Part No.:
- 7TCA303080R0034
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Thread Size | M32 | |
| Product Type | Cable Gland | |
| Maximum Cable Diameter | 18mm | |
| Minimum Cable Diameter | 10mm | |
| Material | Nickel Plated Brass | |
| Colour | Metallic | |
| Series | Glands | |
| IP Rating | IP66, IP68, IP69 | |
| Hazardous Area Certification | EN 45545-2 HL3 | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 140°C | |
| Standards/Approvals | EN 45545-2, EN 62444, HL3, LVD, R22 and R23, RoHS, WEEE | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Thread Size M32 | ||
Product Type Cable Gland | ||
Maximum Cable Diameter 18mm | ||
Minimum Cable Diameter 10mm | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
Series Glands | ||
IP Rating IP66, IP68, IP69 | ||
Hazardous Area Certification EN 45545-2 HL3 | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 140°C | ||
Standards/Approvals EN 45545-2, EN 62444, HL3, LVD, R22 and R23, RoHS, WEEE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TR
The ABB EN45545-2 compliant cable gland is designed for use in rail, rolling stock and infrastructure applications. It is made up of nickel plated brass.
Robust metallic construction
Multiple seal bushings for wide clamping range
