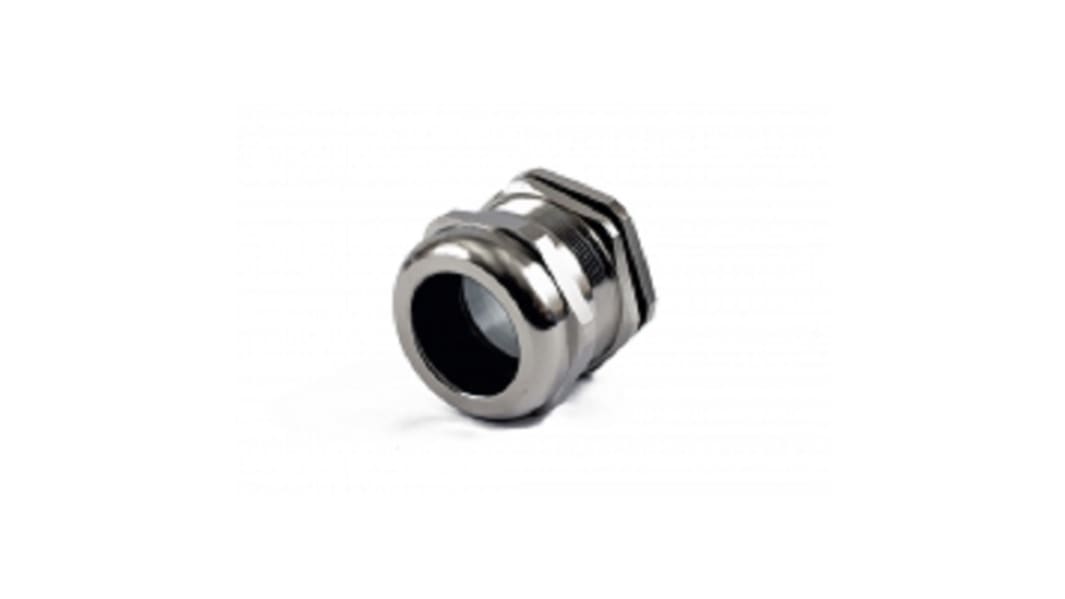

Hammond 1427BCG Series Grey Nickel Plated Brass Cable Gland, PG36 Thread, 22mm min., 32mm max., IP68

View all Cable Glands

Subtotal (1 unit)*

£37.86

(exc. VAT)

£45.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£37.86

*price indicative

RS Stock No.:
256-5556
Mfr. Part No.:
1427BCGPG36
Brand:
Hammond
Find similar products by selecting one or more attributes.
Select all

Brand

Hammond

Thread Size

PG36

Maximum Cable Diameter

32mm

Minimum Cable Diameter

22mm

Material

Nickel Plated Brass

Colour

Grey

Series

1427BCG

IP Rating

IP68

Locknut Included

Yes

COO (Country of Origin):
CN
The Hammonds 1427BCG series of liquid-tight cordgrip made from nickel plated brass used for where cable is entering or leaving an enclosure. It accepts a wide range of cable diameters due to large opening and NBR seal made up of nitrile rubber. This strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.

Nylon locknut and EPDM O-ring included
Operating temperature at static state is -40°C to 100°C
Outer length is 37 mm
Temporary heat resistance up to 120°C
Designed to meet NEMA Type
