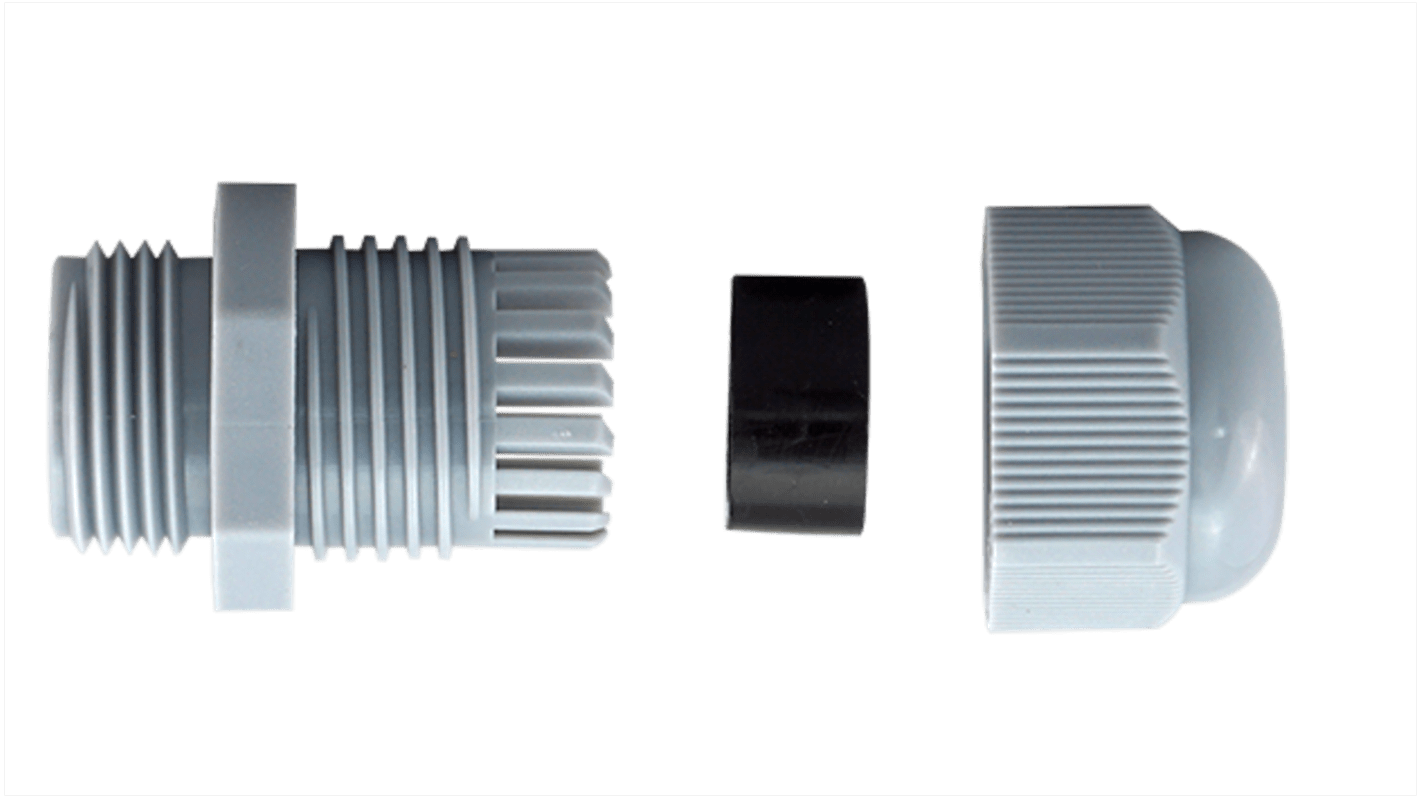

RS PRO Grey Nylon Cable Gland, PG16 Thread, 10mm min., 14mm max., IP68

RS Stock No.:: 210-1354
Brand:: RS PRO

RS PRO Grey Nylon Cable Gland, PG16 Thread, 10mm min., 14mm max., IP68

Subtotal (1 bag of 5 units)*

£7.22

(exc. VAT)

£8.66

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

90 unit(s) ready to ship
Plus 22 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£7.22	£1.444

*price indicative

RS Stock No.:: 210-1354
Brand:: RS PRO

RS PRO Nylon 66 Cable Gland

Introducing the range of RS PRO Nylon 66 Cable Glands, ideal for use in a range of cable and wiring applications in a wide variety of industrial environments. The Nylon 66 material makes these cable glands highly durable and able to perform at their very best even with high temperatures often found in challenging environments. These glands have PG threads which provide strain relief for cables, preventing them from breaking and ensuring their reliability and stability. In addition to this, the connector is IP68 rated making it ultra-durable, protecting the internal connections and delicate wiring, making it an ideal solution where a rugged and reliable connection is required in harsh environments.

Features and Benefits:

This RS PRO cable gland is ideal for use in a range of industries and environments as a solution to securely couple and connect cabling and wiring in a variety of different applications

These glands ensure the cables are not pulled out or twisted making the connection between the cable and the machine more secure and ensuring continued performance

Additionally, the PG threads provide strain relief to prevent the cables from getting damaged or breaking, providing long-lasting life and efficient operation

The IP68 rating means that they are ideal in harsh environments and are resistant to moisture, fluid, dirt and dust, while the Nylon 66 material allows them to withstand extreme temperature fluctuations

Locknut and washer are not included

Applications:

Cable glands, also known as cable connectors are essential when it comes to terminating cables in a hazardous or harsh environment. They offer ingress protection, sealing and grounding which are all a necessity when it comes to safely passing a wire or a cable through an enclosure and can be found in a range of industries like:

Instrumentation and control

Automated systems

Lighting

Data and telecommunications

Network cabling

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note:

IP68 rating is only achieved when the locknut and washer are assembled together with the cable gland for a secure seal

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Thread Size	PG16
	Maximum Cable Diameter	14mm
	Minimum Cable Diameter	10mm
	Material	Nylon 66
	Colour	Grey
	Series	KSS PG THREAD (DIN STANDARD)
	IP Rating	IP68
	Locknut Included	No
	Fire Behaviour	Flame Retardant, Self-extinguishing
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Number of Pieces	5
	Standards Met	UL 94 V-2
	Operating Temperature Range	-40 °C→+85 °C

	Select all
	Brand RS PRO
	Thread Size PG16
	Maximum Cable Diameter 14mm
	Minimum Cable Diameter 10mm
	Material Nylon 66
	Colour Grey
	Series KSS PG THREAD (DIN STANDARD)
	IP Rating IP68
	Locknut Included No
	Fire Behaviour Flame Retardant, Self-extinguishing
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Number of Pieces 5
	Standards Met UL 94 V-2
	Operating Temperature Range -40 °C→+85 °C
