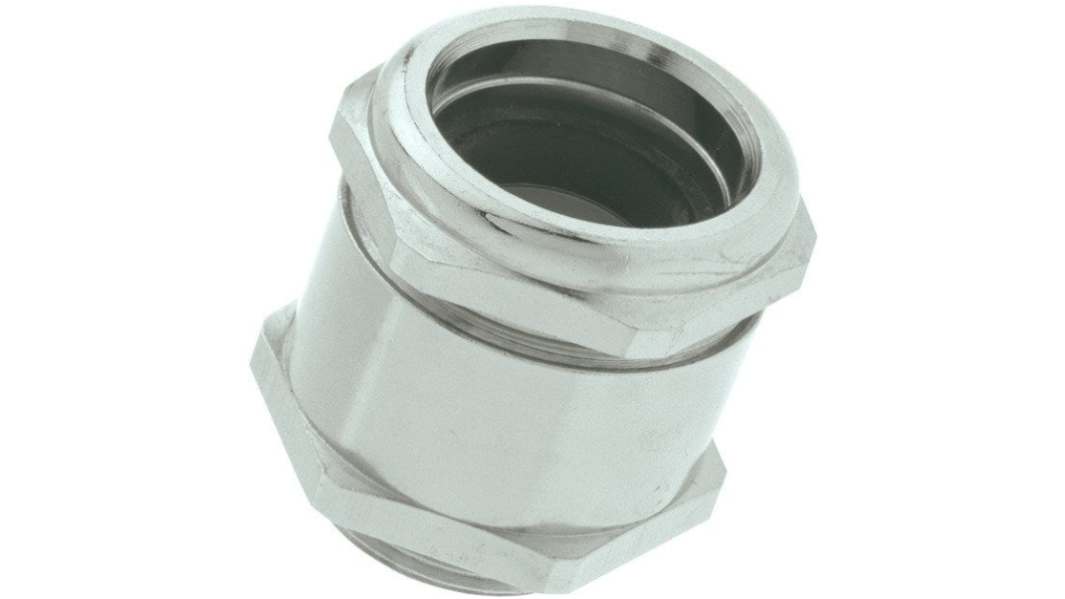

Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, PG21 Thread, 14mm min., 15.8mm max., IP68
- RS Stock No.:
- 182-9199
- Mfr. Part No.:
- 52003540+52005140
- Brand:
- Lapp
Bulk discount available
Subtotal (1 pack of 5 units)*
£111.68
(exc. VAT)
£134.015
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £22.336 | £111.68 |
25 - 45 | £21.222 | £106.11 |
50 + | £20.104 | £100.52 |
*price indicative
- RS Stock No.:
- 182-9199
- Mfr. Part No.:
- 52003540+52005140
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Thread Size | PG21 | |
Maximum Cable Diameter | 15.8mm | |
Minimum Cable Diameter | 14mm | |
Material | Nickel Plated Brass | |
Colour | Metallic | |
Series | SKINDICHT | |
IP Rating | IP68 | |
Locknut Included | Yes | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Number of Pieces | 25 | |
Standards Met | CE | |
Operating Temperature Range | -20 → +80 °C | |
Kit Includes | Cable Gland | |
Reference | SKINDICHT SHVE | |
Select all | ||
---|---|---|
Brand Lapp | ||
Thread Size PG21 | ||
Maximum Cable Diameter 15.8mm | ||
Minimum Cable Diameter 14mm | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
Series SKINDICHT | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Number of Pieces 25 | ||
Standards Met CE | ||
Operating Temperature Range -20 → +80 °C | ||
Kit Includes Cable Gland | ||
Reference SKINDICHT SHVE | ||
- COO (Country of Origin):
- DE
LAPP SKINDICHT Series Cable Gland, 15.8mm Maximum Cable Diameter, PG21 Thread size - 52003540+52005140
This cable gland is designed for securing cables with a PG21 threading. Constructed from nickel plated brass, this durable and weatherproof cable gland accommodates cable diameters ranging from 14mm to 15.8mm while ensuring reliable performance in environments subject to moisture and interference.
Features & Benefits
• Provides a low-resistance 360° screen contact for optimal earthing
• High degree of protection rated IP68 for submerged applications
• Suitable for a wide temperature range from -20°C to +80°C
• Includes locknut for secure installation and strain relief
• CE certified for compliance with industry standards
• Versatile design ideal for both indoor and outdoor use
• High degree of protection rated IP68 for submerged applications
• Suitable for a wide temperature range from -20°C to +80°C
• Includes locknut for secure installation and strain relief
• CE certified for compliance with industry standards
• Versatile design ideal for both indoor and outdoor use
Applications
• Used as an earthing gland in medical engineering
• Suitable for frequency converters in industrial settings
• Utilised in measurement and control technology
• Ideal for installations in airports and similar environments
• Suitable for frequency converters in industrial settings
• Utilised in measurement and control technology
• Ideal for installations in airports and similar environments
What materials are used in this product's construction?
It features a body made from nickel plated brass, an earthing sleeve of plain brass, and a special sealing cone made from CR (chloroprene rubber). These materials ensure durability and corrosion resistance.
How does this product protect against environmental factors?
With its IP68 rating, it effectively prevents water and dust ingress, making it suitable for outdoor applications where exposure to moisture is a concern.
What is the operating temperature range of this cable gland?
It can operate efficiently in a wide temperature range from -20°C to +80°C, ensuring adaptability in various environments.
What should be considered during installation?
It is recommended to pair it with the SKINDICHT SM counter nut for optimal contact with surfaces that may be painted, anodised, or powder-coated.
Can it be used in settings with potential electrical interference?
Yes, its design provides effective protection against interference signals, making it suitable for sensitive installations such as medical and automation equipment.
