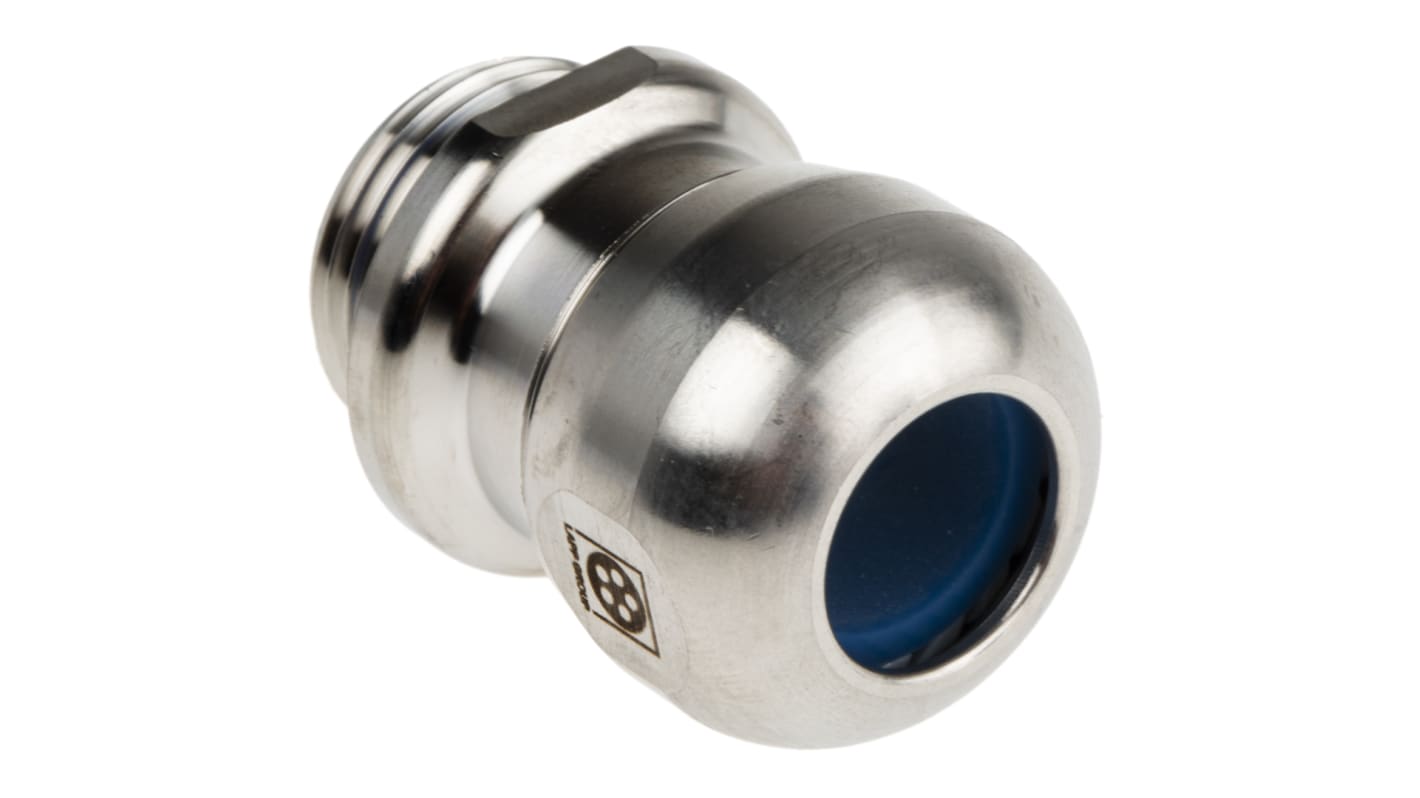

Lapp SKINTOP Series Metallic Stainless Steel Cable Gland, M20 Thread, 7mm Min, 13mm Max, IP68, IP69
- RS Stock No.:
- 136-8527
- Mfr. Part No.:
- 53806724
- Brand:
- Lapp
Available to back order for despatch 06/08/2024
Price Each (In a Pack of 5)
£50.70
(exc. VAT)
£60.84
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 70 | £50.70 | £253.50 |
| 75 - 245 | £48.166 | £240.83 |
| 250 + | £47.144 | £235.72 |
*price indicative
- RS Stock No.:
- 136-8527
- Mfr. Part No.:
- 53806724
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Stainless Steel Cable Gland, 7 to 13mm Cable Diameter Range, M20 Thread - SKINTOP Series - 53806724
Protect cables in hygienic areas using this cable gland from LAPP. The body and nut are made from stainless steel, making the unit easy to clean and resistant to corrosion and chemicals. This tough material minimises cable strain and wear at entry points on processing units, junction boxes and control panels. An IP69 ingress protection rating means the gland is resistant to intrusion from dust and water, to keep it protected during washdowns.
Features & Benefits
• Wide operating temperature between -40°C and +100°C for use in harsh processing and off-shore conditions
• Reliable electromagnetic protection through spring's contact with copper braiding on cables
• Silicone sealing ring is flexible and fatigue-resistant to create a secure fastening
• Reliable electromagnetic protection through spring's contact with copper braiding on cables
• Silicone sealing ring is flexible and fatigue-resistant to create a secure fastening
Applications
• Pharmaceutical industry
• Food processing and catering
• Bottling and packaging lines
• Food processing and catering
• Bottling and packaging lines
What cable sizes does this gland fit?
This cable gland uses variable clamping, so it works with cable diameters between 7mm and 13mm.
Specifications
Attribute | Value |
|---|---|
| Thread Size | M20 |
| Maximum Cable Diameter | 13mm |
| Minimum Cable Diameter | 7mm |
| Material | Stainless Steel |
| Colour | Metallic |
| Series | SKINTOP |
| IP Rating | IP68, IP69 |
| Locknut Included | No |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE Certified, DIN EN 1672-2, DIN EN 60423, DIN EN ISO 14159, DIN IEC 62444, ECOLAB Certified |
| Operating Temperature Range | -40 → +100 °C |
| Reference | SKINTOP INOX SC |
