Phoenix Contact 1411 Series Brass Nickel Plated Brass Cable Gland, PG42 Thread, 38mm min., 30mm max., IP68
- RS Stock No.:
- 496-759
- Mfr. Part No.:
- 1411203
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 496-759
- Mfr. Part No.:
- 1411203
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Thread Size | PG42 | |
Maximum Cable Diameter | 30mm | |
Minimum Cable Diameter | 38mm | |
Material | Nickel Plated Brass | |
Colour | Brass | |
Series | 1411 | |
IP Rating | IP68 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Thread Size PG42 | ||
Maximum Cable Diameter 30mm | ||
Minimum Cable Diameter 38mm | ||
Material Nickel Plated Brass | ||
Colour Brass | ||
Series 1411 | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- TR

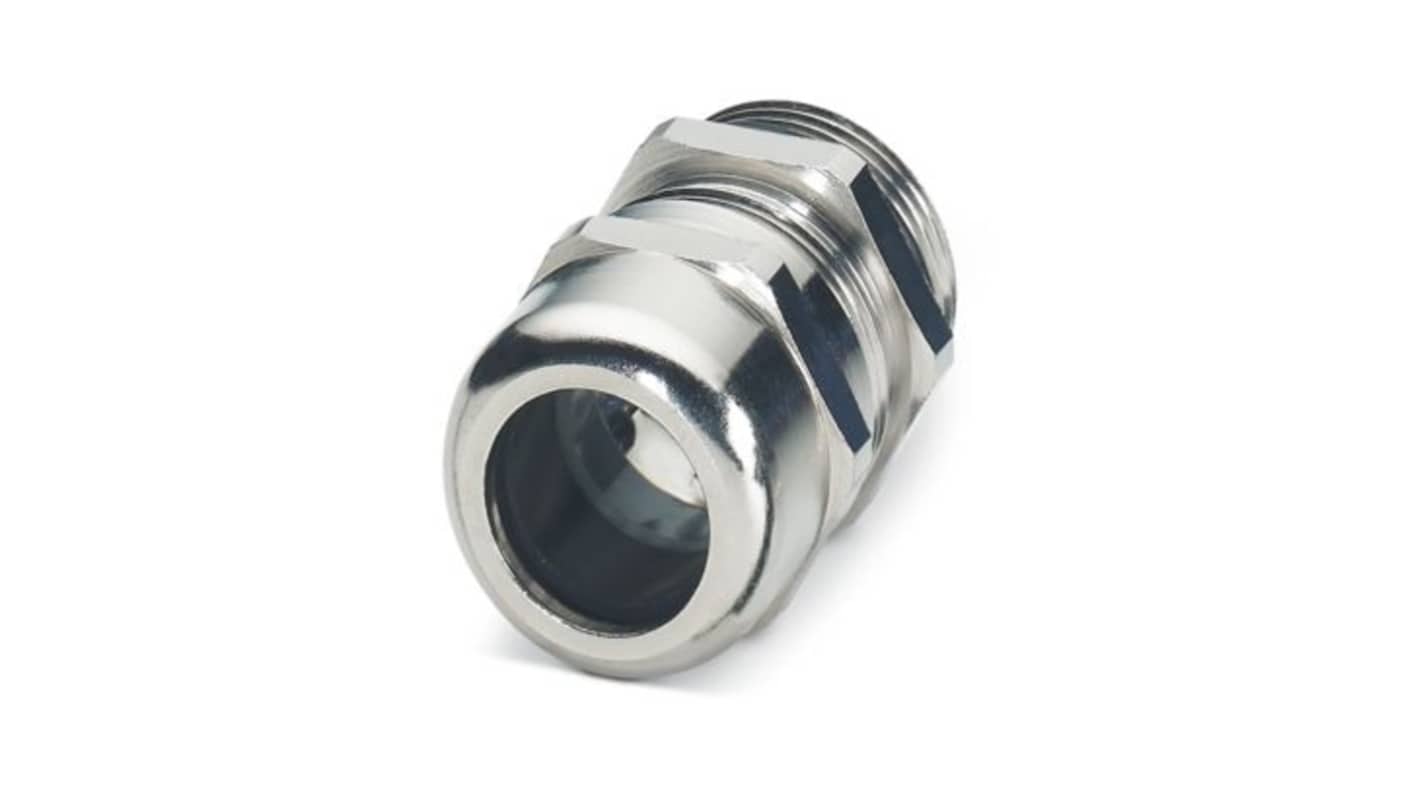

The Phoenix Contact cable gland designed for EMC applications. It is made from nickel-plated brass, suitable for external cable diameters ranging from 30 mm to 38 mm. The gland provides shielding, features a Pg42 connecting thread, and comes in silver with an O-ring.
Color Brass color
Material Compression ring PA 6
Seal material O-ring Perbunan
Seal material Cable seal CR
Material for screw connection Brass, nickel-plated
Material Compression ring PA 6
Seal material O-ring Perbunan
Seal material Cable seal CR
Material for screw connection Brass, nickel-plated
