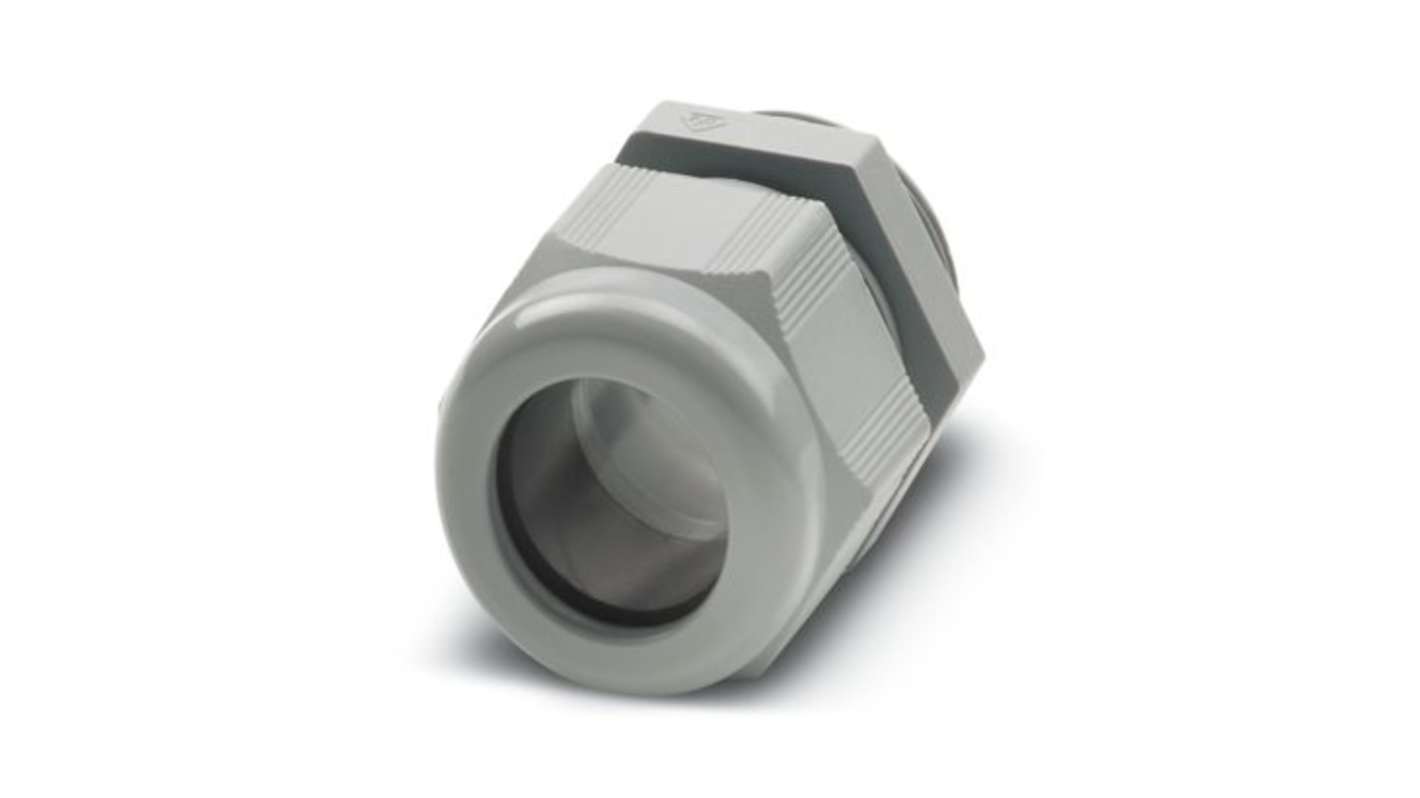

Phoenix Contact G-INS Series Grey Polyamide Cable Gland, M50 Thread, 36 mm min., 30 mm max., IP66, IP68

View all Cable Glands
Bulk discount available

Subtotal (1 unit)*

£8.14

(exc. VAT)

£9.77

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 9£8.14
10 - 24£7.49
25 +£6.76

*price indicative

RS Stock No.:
496-670
Mfr. Part No.:
1411129
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Thread Size

M50

Product Type

Cable Gland

Maximum Cable Diameter

30mm

Minimum Cable Diameter

36mm

Material

Polyamide

Colour

Grey

Series

G-INS

IP Rating

IP66, IP68

Hazardous Area Certification

NO

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

Standards/Approvals

CSA, cUL, DNV, UL, UL 746C f1, VDE

COO (Country of Origin):
TR
The Phoenix Contact cable gland designed for standard applications. It is made from PA (polyamide) and supports external cable diameters ranging from 30 mm to 36 mm. The gland does not provide shielding and features an M50 x 1.5 connecting thread. It comes in a silver-gray color (RAL 7001).

Plastic material conforms to UL 746C f1

Material Housing PA (Housing)

Flammability rating according to UL 94 V2

Seal material Cable seal CR
