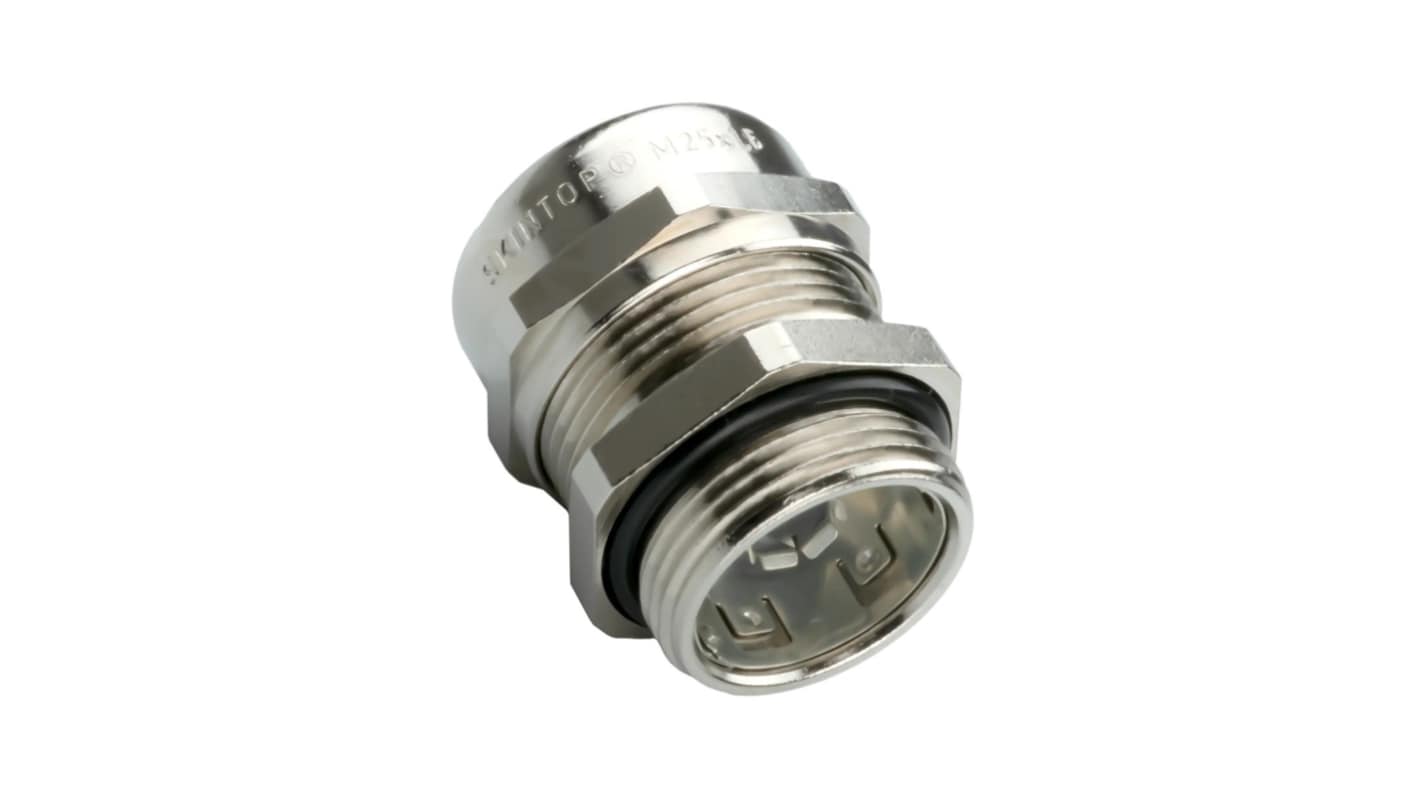

Lapp SKINTOP MS-SC-M Series Nickel Nickel Plated Brass Cable Gland, M32 x 1.5 Thread, 11 mm min., 21 mm max., IP69, IP68

RS Stock No.:: 400-139
Mfr. Part No.:: 53112650LF
Brand:: Lapp

Lapp SKINTOP MS-SC-M Series Nickel Nickel Plated Brass Cable Gland, M32 x 1.5 Thread, 11 mm min., 21 mm max., IP69, IP68

Subtotal (1 bag of 2 units)*

£50.73

(exc. VAT)

£60.88

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£50.73	£25.365

*price indicative

Shop our LAPP Control Cables

Using LAPP Cable Glands? Complete your setup with LAPP Control Cables – flexible, durable and ideal for industrial automation. Discover screened and unscreened options designed to pair perfectly with your cable glands. Explore the range

Shop here

RS Stock No.:: 400-139
Mfr. Part No.:: 53112650LF
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Product Type	Cable Gland
	Thread Size	M32 x 1.5
	Maximum Cable Diameter	21mm
	Minimum Cable Diameter	11mm
	Material	Nickel Plated Brass
	Colour	Nickel
	Series	SKINTOP MS-SC-M
	IP Rating	IP69, IP68
	Hazardous Area Certification	NO
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Standards/Approvals	DIN EN 60423, DIN IEC 62444, UL E79903

	Select all
	Brand Lapp
	Product Type Cable Gland
	Thread Size M32 x 1.5
	Maximum Cable Diameter 21mm
	Minimum Cable Diameter 11mm
	Material Nickel Plated Brass
	Colour Nickel
	Series SKINTOP MS-SC-M
	IP Rating IP69, IP68
	Hazardous Area Certification NO
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Standards/Approvals DIN EN 60423, DIN IEC 62444, UL E79903

Datasheet - 53112650LF

COO (Country of Origin):: DE

LAPP SKINTOP MS-SC-M Series Cable Gland, M32 x1.5 Thread size, Nickel - 53112650LF

This cable gland provides a secure entry for industrial cables, creating a sealed connection between wiring and enclosures in demanding environments. It is finished in nickel and configured to accept cables within a specified diameter range, making it suitable for installations where mechanical retention and environmental protection are required. The product is designed for use with threaded panel or enclosure entries.

Features and Benefits:

• Nickel-plated brass body resists corrosion for long service life
• Thread M32x1.5 ensures standardised panel mounting compatibility
• IP66/IP68/IP69 ratings protect against dust, immersion and high-pressure washdown
• Operates between -40°C and 100°C for wide temperature exposure
• Accepts cable diameters from 11mm to 21mm for cable flexibility

Applications

• Suitable for industrial control cabinet cable entries
• Ideal for automation sensors and actuator wiring installations
• Used with outdoor junction boxes exposed to washdown cleaning
• Can be used for machinery requiring robust strain relief
• Used for electrical panels in harsh environmental conditions

What material is used for the gland body and why is it chosen?

The housing is MADE from nickel-plated brass, chosen for its combination of mechanical strength and improved surface corrosion resistance in industrial settings.

How does the product cope with washdown or pressure-cleaning procedures?

The sealing achieves IP69 protection, which meets requirements for high-pressure, high-temperature washdown while maintaining ingress protection.

What range of cable sizes can be accommodated and how does that affect installation?

The design accepts cables between 11mm and 21mm diameter, allowing installers to secure a variety of conductor jackets without additional adaptors.

Which temperature extremes can the gland withstand during operation?

It is rated to function at temperatures down to -40°C and up to 100°C, covering common cold-room and elevated-heat industrial environments.
