Icotek KEL Series Grey Polycarbonate Cable Gland Kit, PG13.5 Thread, 17 mm max., IP54
- RS Stock No.:
- 361-814
- Distrelec Article No.:
- 110-83-561
- Mfr. Part No.:
- KVT 80/6
- Brand:
- Icotek
Subtotal (1 unit)*
£19.54
(exc. VAT)
£23.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.54 |
*price indicative
- RS Stock No.:
- 361-814
- Distrelec Article No.:
- 110-83-561
- Mfr. Part No.:
- KVT 80/6
- Brand:
- Icotek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Icotek | |
| Product Type | Cable Gland Kit | |
| Thread Size | PG13.5 | |
| Maximum Cable Diameter | 17mm | |
| Material | Polycarbonate | |
| Colour | Grey | |
| Series | KEL | |
| IP Rating | IP54 | |
| Hazardous Area Certification | NO | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -30°C | |
| Standards/Approvals | EN 60529, EN 62444, UL 50E, UL Typ12 | |
| Select all | ||
|---|---|---|
Brand Icotek | ||
Product Type Cable Gland Kit | ||
Thread Size PG13.5 | ||
Maximum Cable Diameter 17mm | ||
Material Polycarbonate | ||
Colour Grey | ||
Series KEL | ||
IP Rating IP54 | ||
Hazardous Area Certification NO | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -30°C | ||
Standards/Approvals EN 60529, EN 62444, UL 50E, UL Typ12 | ||

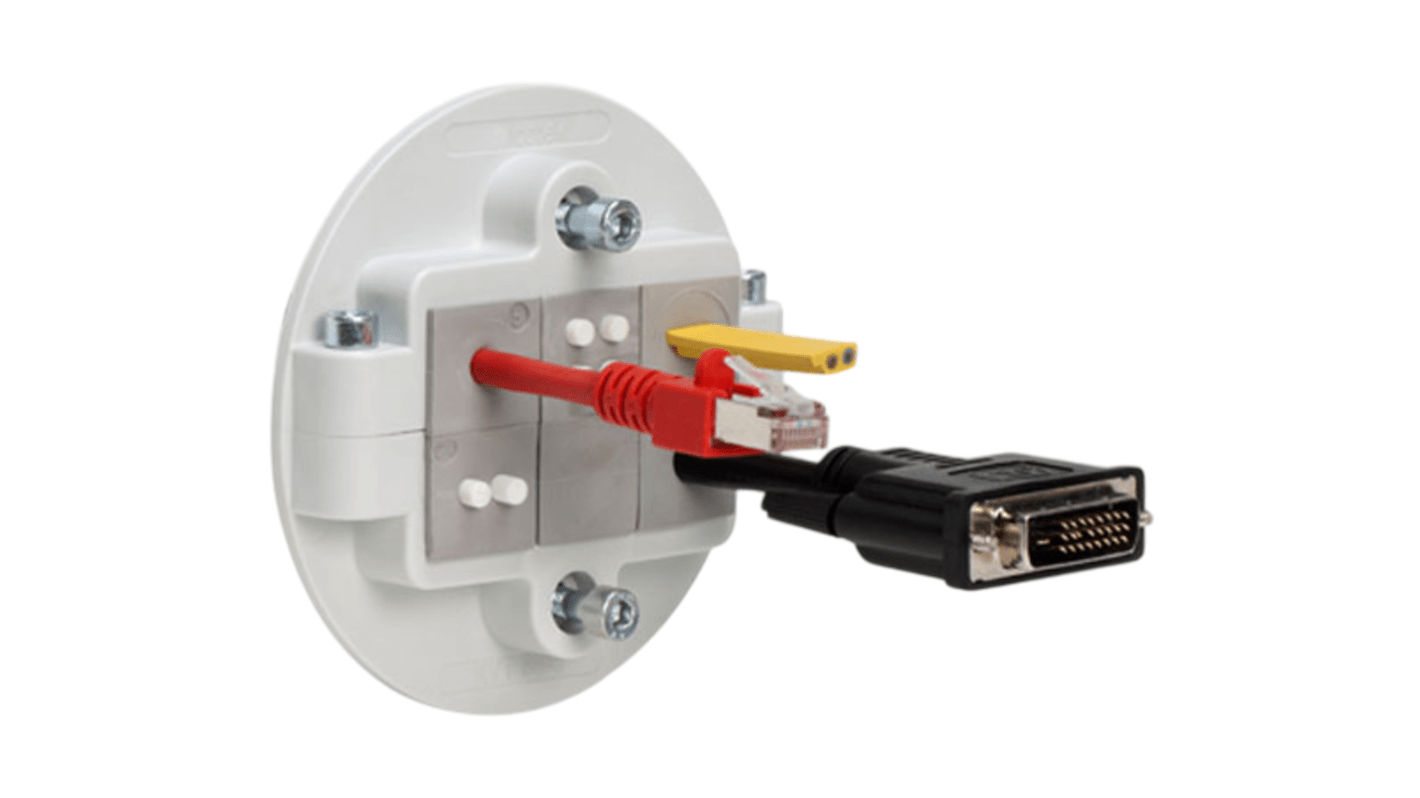

The Icotek KVT 80 split cable glands are designed for routing and sealing cables with connectors. But also electric, pneumatic or hydraulic lines without terminals or connectors as well as corrugated conduits can be easily routed (e.g. into control panels, enclosures or machinery) and sealed with IP54 / UL Type 12.
Routing of cables with and without connectors
Warranty on pre-terminated cables remains
Retrofits and repairs and maintenance can be done much more easily and quickly
High cable density and wide variety of grommets
Fast and easy mounting from the front side
Strain relief according to EN 62444
