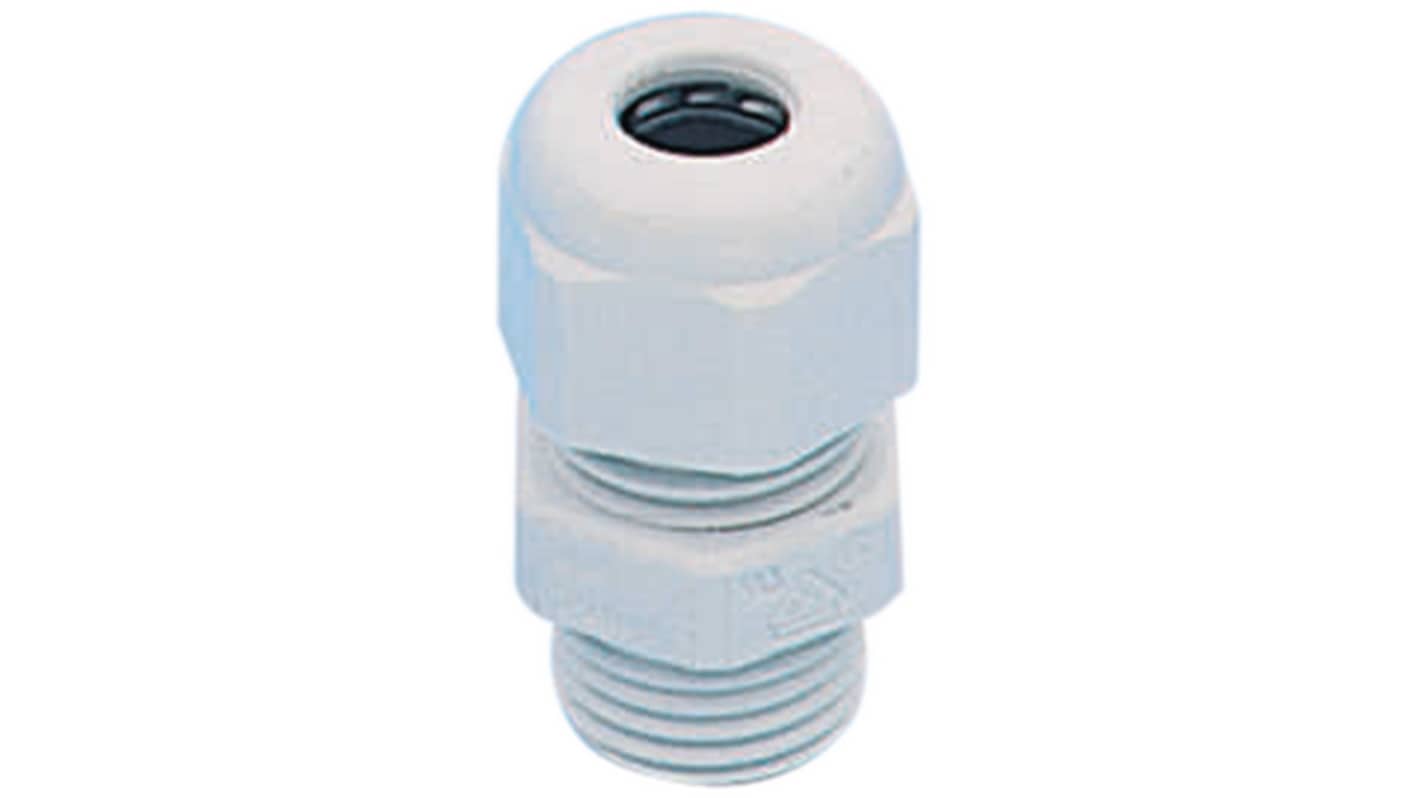

Hummel HSK-K Series Series Grey Polyamide Cable Gland, M16 Thread, 4mm min., 8mm max., IP68
- RS Stock No.:
- 340-155
- Mfr. Part No.:
- 1.209.1600.50
- Brand:
- Hummel
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 340-155
- Mfr. Part No.:
- 1.209.1600.50
- Brand:
- Hummel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hummel | |
| Thread Size | M16 | |
| Maximum Cable Diameter | 8mm | |
| Minimum Cable Diameter | 4mm | |
| Material | Polyamide | |
| Colour | Grey | |
| Series | HSK-K Series | |
| IP Rating | IP68 | |
Select all | ||
|---|---|---|
Brand Hummel | ||
Thread Size M16 | ||
Maximum Cable Diameter 8mm | ||
Minimum Cable Diameter 4mm | ||
Material Polyamide | ||
Colour Grey | ||
Series HSK-K Series | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- DE
The Hummel HSK-K threaded gland in gray features an M16 size with a 4 to 8mm clamping range. It is made from standard polyamide with a material quality of PA V0 according to UL94. The form seal is made from NBR, offering protection class IP68 at 10 bar and IP69K (NEMA 6-150PSIG) when using an O-ring.
Material Plastic
Halogen free
Spanner size 19mm
Halogen free
Spanner size 19mm
