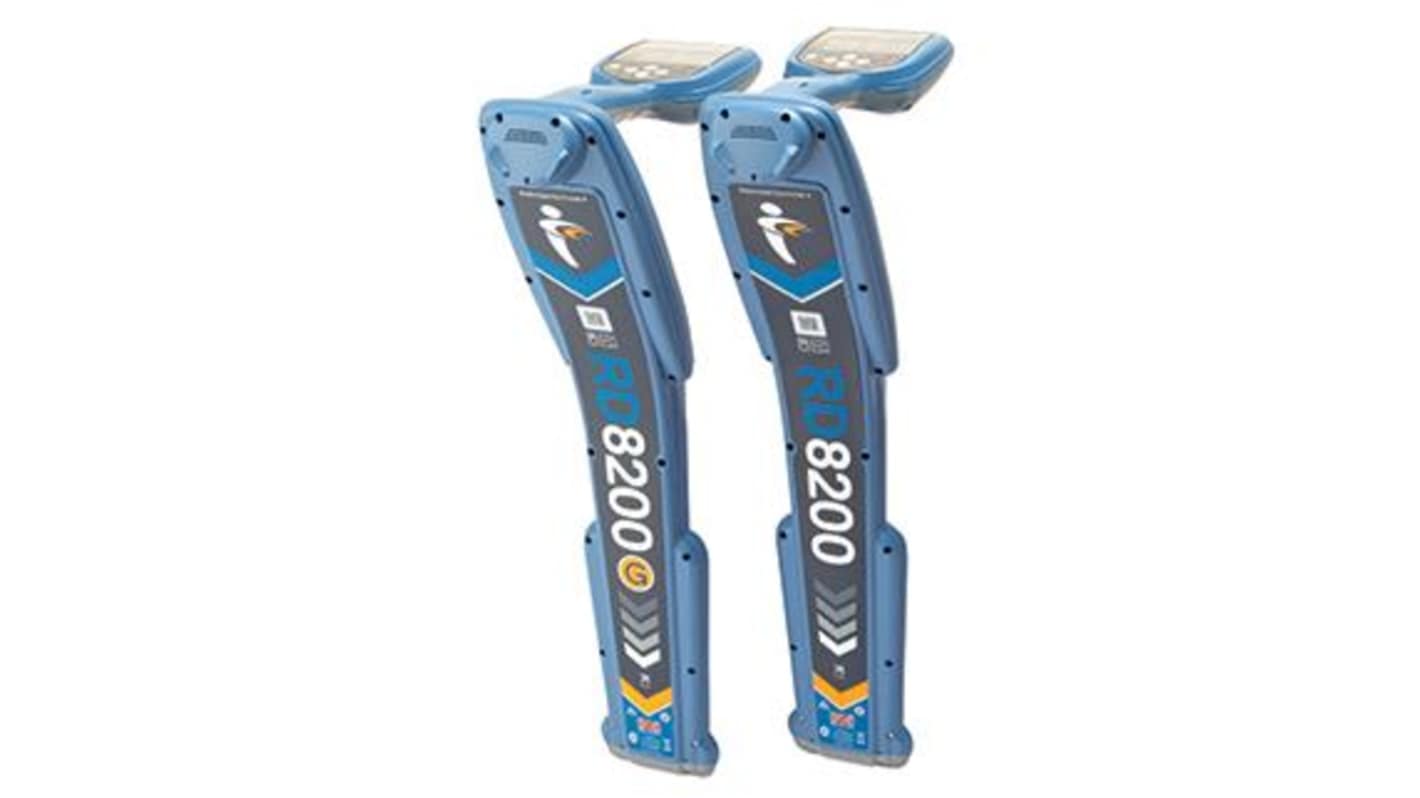

Radiodetection 10/RD8200G-UK Cable Avoidance Tool 30m Lithium-ion Battery, DC Power Supply
- RS Stock No.:
- 565-592
- Mfr. Part No.:
- 10/RD8200G-UK
- Brand:
- Radiodetection
Subtotal (1 unit)*
£5,051.19
(exc. VAT)
£6,061.43
(inc. VAT)
FREE delivery for orders over £50.00
- 2 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £5,051.19 |
*price indicative
- RS Stock No.:
- 565-592
- Mfr. Part No.:
- 10/RD8200G-UK
- Brand:
- Radiodetection
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiodetection | |
| Product Type | Cable Avoidance Tool | |
| Cable Detection Depth | 30m | |
| Depth Accuracy | ±3 % | |
| Location Accuracy | ± 5 % of depth | |
| Depth Indicator | Yes | |
| Measurement Mode | Active Locate Modes: Peak, CATV, Counts Per Second, Null, Passive Avoidance, Passive Locate Modes: Power, Peak, Radio Mode, Time Mode | |
| Battery Type | LR20, NiMH, MN1300, Lithium-ion | |
| Minimum Operating Temperature | -20°C | |
| Power Source | Lithium-ion Battery, DC Power Supply | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EN 300 330-2 (V1.5.1), EN 301 489-17 (V2.2.1), EN 60529 1992 A2 2013, EN 301 489-3 (V1.6.1), EN 61326-1:2013, IC, ESTI EN 300 019-2-2:1999 (per table 6), WEEE, FCC, RoHS, EN 60068-2-27:2009 (Test Ea), EN 61010-1:2010, EMC Directive - 2014/30/EU, ISO 9001: 2015, Low Voltage Directive - 2014/35/EU, EN 300 440-2 (V1.4.1), EN 60068-2-64:2008 Test Fh, Network Rail - Certificate of acceptance PA05/07424, RoHS - Directive - 2011/65/EU, Radio Equipment Directive - 2014/53/EU | |
| Height | 125mm | |
| Length | 648mm | |
| Width | 286 mm | |
| Select all | ||
|---|---|---|
Brand Radiodetection | ||
Product Type Cable Avoidance Tool | ||
Cable Detection Depth 30m | ||
Depth Accuracy ±3 % | ||
Location Accuracy ± 5 % of depth | ||
Depth Indicator Yes | ||
Measurement Mode Active Locate Modes: Peak, CATV, Counts Per Second, Null, Passive Avoidance, Passive Locate Modes: Power, Peak, Radio Mode, Time Mode | ||
Battery Type LR20, NiMH, MN1300, Lithium-ion | ||
Minimum Operating Temperature -20°C | ||
Power Source Lithium-ion Battery, DC Power Supply | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EN 300 330-2 (V1.5.1), EN 301 489-17 (V2.2.1), EN 60529 1992 A2 2013, EN 301 489-3 (V1.6.1), EN 61326-1:2013, IC, ESTI EN 300 019-2-2:1999 (per table 6), WEEE, FCC, RoHS, EN 60068-2-27:2009 (Test Ea), EN 61010-1:2010, EMC Directive - 2014/30/EU, ISO 9001: 2015, Low Voltage Directive - 2014/35/EU, EN 300 440-2 (V1.4.1), EN 60068-2-64:2008 Test Fh, Network Rail - Certificate of acceptance PA05/07424, RoHS - Directive - 2011/65/EU, Radio Equipment Directive - 2014/53/EU | ||
Height 125mm | ||
Length 648mm | ||
Width 286 mm | ||
- COO (Country of Origin):
- GB
