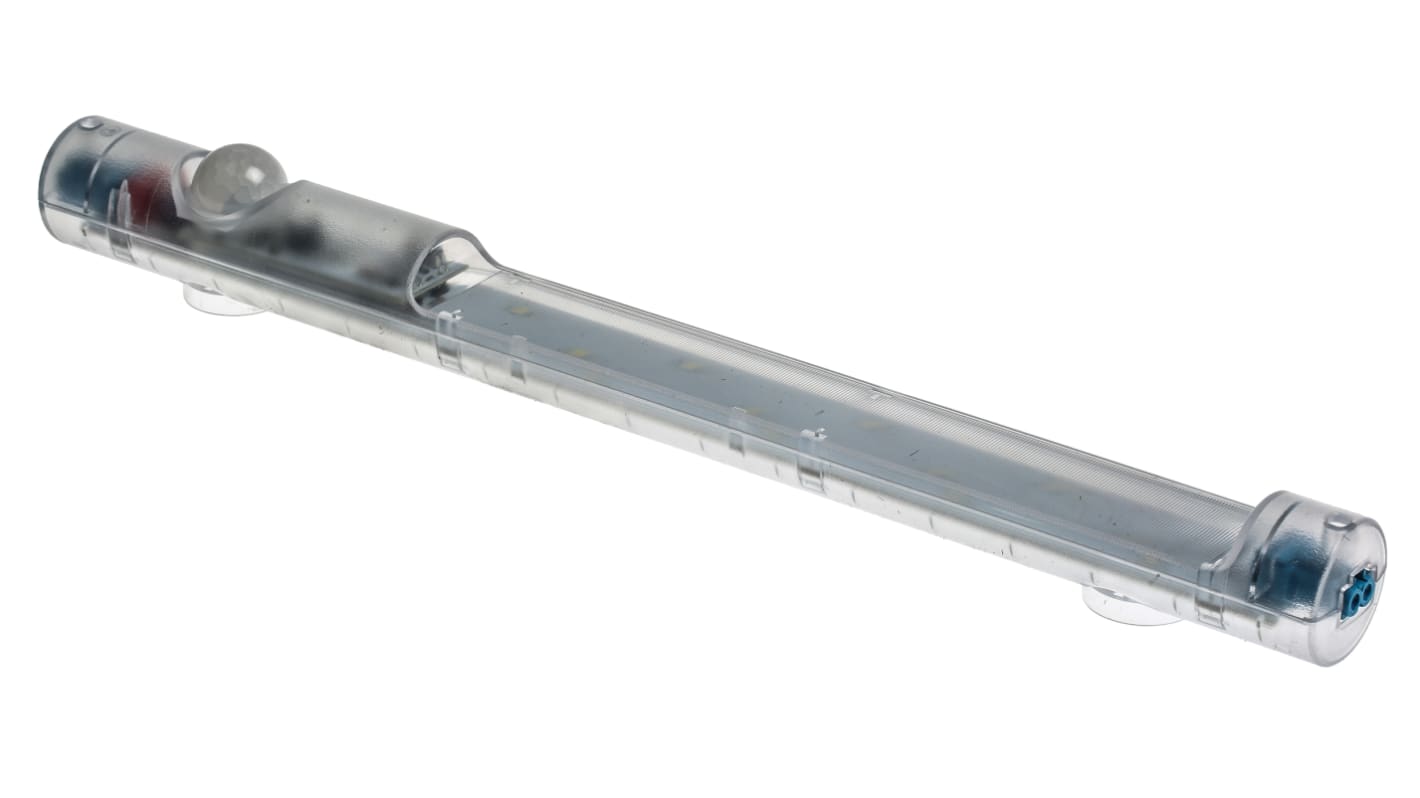

STEGO 02541.1-01 Series LED PIR Enclosure Lamp, 48 V dc, 351 mm Length, 5 W, 6500k
- RS Stock No.:
- 810-3205
- Distrelec Article No.:
- 300-85-406
- Mfr. Part No.:
- 02541.1-01
- Brand:
- STEGO
Subtotal (1 unit)*
£168.63
(exc. VAT)
£202.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £168.63 |
*price indicative
- RS Stock No.:
- 810-3205
- Distrelec Article No.:
- 300-85-406
- Mfr. Part No.:
- 02541.1-01
- Brand:
- STEGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Product Type | Cabinet Light | |
| Lamp Type | LED | |
| Sub Type | PIR Enclosure Lamp | |
| Luminous Flux | 290lm | |
| Voltage | 48 V dc | |
| Housing Material | Transparent Plastic | |
| Length | 351mm | |
| Power | 5W | |
| IP Rating | IP20 | |
| Colour Temperature | 6500k | |
| Minimum Operating Temperature | -30°C | |
| Lifespan | 60000h | |
| Maximum Operating Temperature | 60°C | |
| Width | 41 mm | |
| Depth | 52mm | |
| Colour | White | |
| Standards/Approvals | GOST-R, VDE, UL File No. E234324 | |
| Diameter | 32 mm | |
| Series | 02541.1-01 | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Product Type Cabinet Light | ||
Lamp Type LED | ||
Sub Type PIR Enclosure Lamp | ||
Luminous Flux 290lm | ||
Voltage 48 V dc | ||
Housing Material Transparent Plastic | ||
Length 351mm | ||
Power 5W | ||
IP Rating IP20 | ||
Colour Temperature 6500k | ||
Minimum Operating Temperature -30°C | ||
Lifespan 60000h | ||
Maximum Operating Temperature 60°C | ||
Width 41 mm | ||
Depth 52mm | ||
Colour White | ||
Standards/Approvals GOST-R, VDE, UL File No. E234324 | ||
Diameter 32 mm | ||
Series 02541.1-01 | ||
- COO (Country of Origin):
- DE
LED Enclosure Lamps PIR Sensor Screw Fixing
These Enclosure light fittings have a very long service life, thanks to the use of LED technology.
LED light fittings are the ideal upgrade of conventional lighting, providing an economical replacement, with great energy savings and very low maintenance costs. The LED 025 Series fits in all types of panels and enclosures, they are ideal especially where space is limited. These LED lamps are operated by a PIR movement sensor with approximately 5 minutes switch-on duration. The power output of these enclosure light fittings allows up to 10 lamps to be connected to each other, connectors and cables are not included, they can be ordered separately, see accessories.
The LED lamps come with a classic screw fixing.
Wide voltage range
Integrated power unit
PIR movement sensor
Screw fixing
Daylight colour, 6,500k temperature
60,000 hours average life
Note
The lamp must not be used for household lighting
