Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Lamp Type | LED | |
| Product Type | Cabinet Light | |
| Sub Type | LED Illumination Unit | |
| Luminous Flux | 235lm | |
| Voltage | 24V dc | |
| Housing Material | Polycarbonate | |
| Length | 210mm | |
| Power | 2.6W | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -30°C | |
| Colour Temperature | 5500k | |
| Lifespan | 40000h | |
| Maximum Operating Temperature | 55°C | |
| Depth | 29mm | |
| Diameter | 29mm | |
| Colour | White | |
| Standards/Approvals | cULus Lisited, CE | |
| Width | 40mm | |
| Series | LF2B-B3P-BTHWW2-1M | |
| Diffuser Finish | Clear | |
| Lamp Supplied | Yes | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Lamp Type LED | ||
Product Type Cabinet Light | ||
Sub Type LED Illumination Unit | ||
Luminous Flux 235lm | ||
Voltage 24V dc | ||
Housing Material Polycarbonate | ||
Length 210mm | ||
Power 2.6W | ||
IP Rating IP65 | ||
Minimum Operating Temperature -30°C | ||
Colour Temperature 5500k | ||
Lifespan 40000h | ||
Maximum Operating Temperature 55°C | ||
Depth 29mm | ||
Diameter 29mm | ||
Colour White | ||
Standards/Approvals cULus Lisited, CE | ||
Width 40mm | ||
Series LF2B-B3P-BTHWW2-1M | ||
Diffuser Finish Clear | ||
Lamp Supplied Yes | ||
- COO (Country of Origin):
- JP

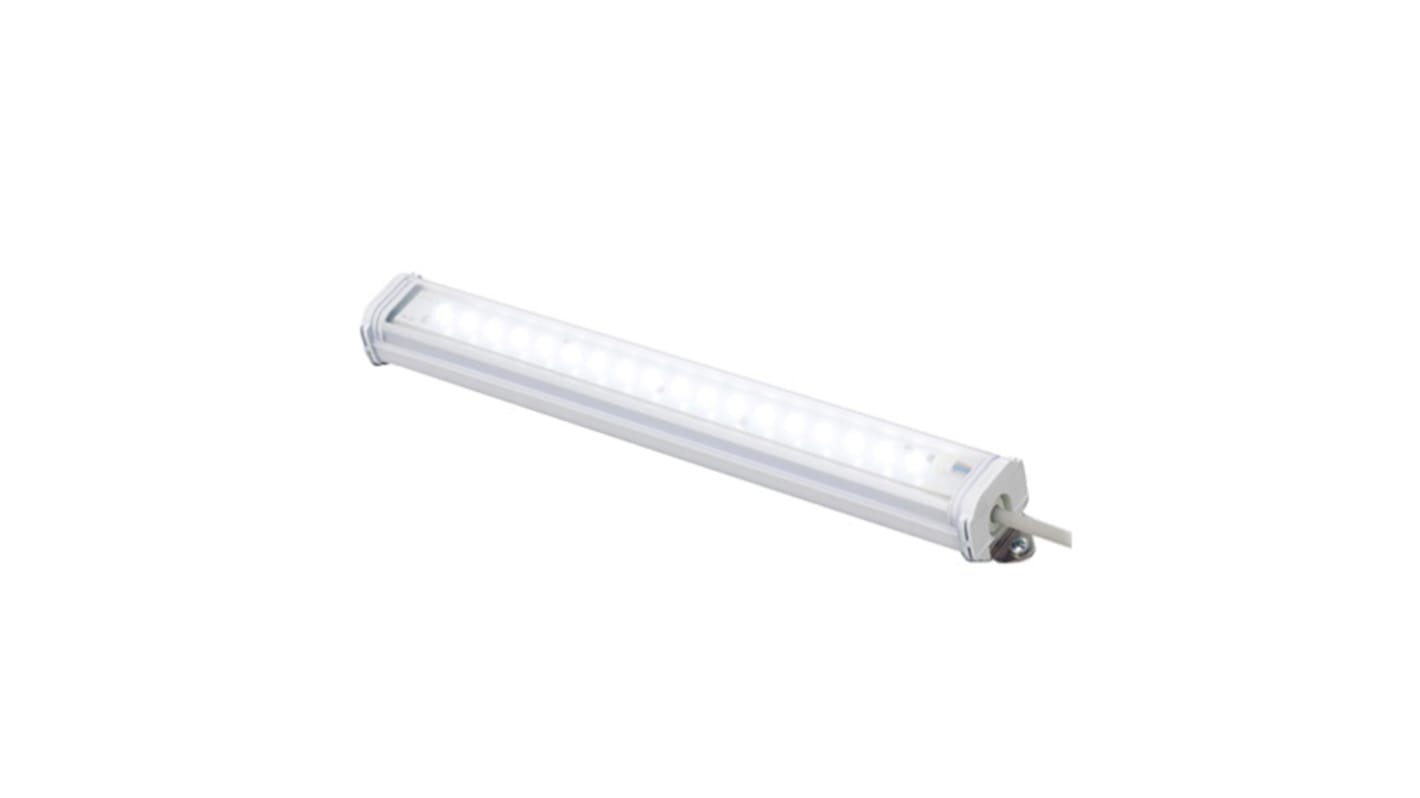

Super-bright and energy efficient LF2B LED strips have a wide range of input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC with a choice of clear or white covers. These slim units can be used in many applications and installations where space is limited. With protection from water and dust the LF2B is can be used where water is being sprayed. Choice of two mounting brackets provide flexibility to locate these lights where needed. With a long life span, with approximately 54% less power consumption compared with fluorescent tube lighting, the LF2B series LED light strips are a bright choice now and in the future.
Input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC
Slim units: 40mm (w) x 29mm (h). Using mounting brackets, one-step installation in a narrow space is possible.
Five Lengths (210/330/580/830/1,080mm) are offered to meet space requirements and illumination coverages
Bright and clear white LED illuminates the shapes and colours of target objects. (LF2B illuminance is approximately 25% higher than the LF1B.)
Two covers: clear or white
Waterproof, dustproof, suitable for use in wet locations
